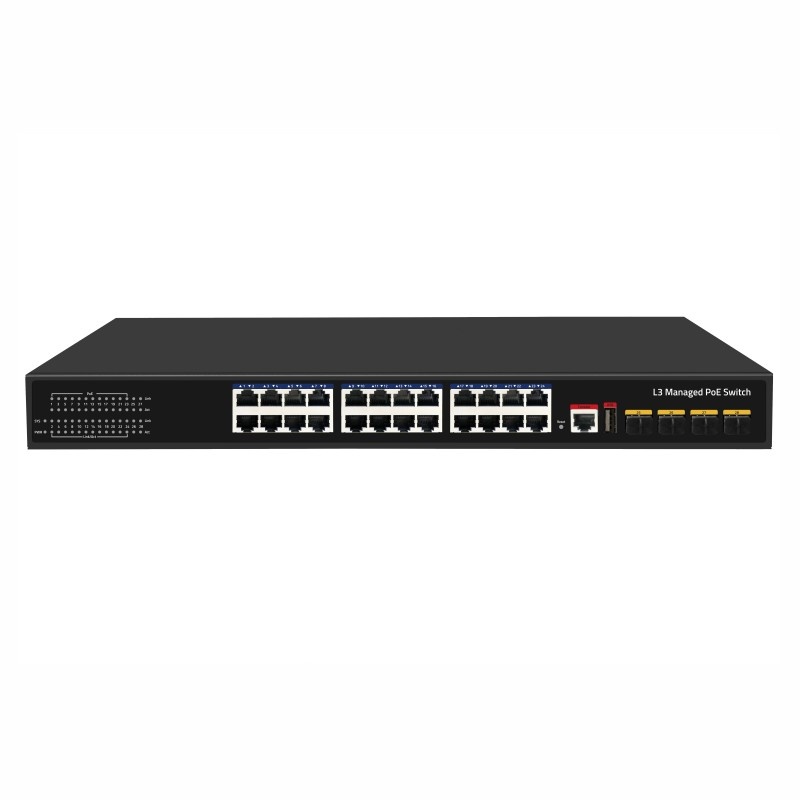

 28 Port 10G Uplink 24 Port Gigabit L3 Managed Ethernet POE Switch (SST-MP24ET4WS)

【Description】


28 Port 10G Uplink 24 Port Gigabit L3 Managed Ethernet POE Switch, which provide 24*10/100/1000 adaptive POE electrical port,
4*10G SFP+ Port,1*Console port, 1*USB series port. Used the high quality high speed network IC and the most stable POE chips,
POE port satisified IEEE 802.3 af/at standard, this series POE Switch can provide no gap link for 10/100/1000M ethernet, and the
PoE power supply port can automatically detect and supply power to the power receiving device that meets the standard, intelligent
detection of non-PoE devices does not supply power, only transmits data.


【Main Features】

1, Compatible with IEEE 802.1d、IEEE 802.1w、IEEE 802.1s、IEEE 802.1p、IEEE 802.3、IEEE 802.3u、IEEE 802.3x、IEEE 802.3z、       IEEE 802.3ab、IEEE 802.3ae  standard;
2, L3 Management,support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3,  IGMP Snooping v1/v2;
3, Support Spanning Tree Protocol STP/RSTP/MSTP (ERPS), Support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM);
4, Support multiple VLAN divisions, mac VLAN, protocol VLAN, private VLAN;
5, Support IP address + MAC address + VLAN + port binding, support DHCP Snooping, support IP source and DAI protection;
6, Support IPV4/IPV6,RIP v1/v2,OSPF v2
7, Compatible with IEEE802.3at (30W) and IEEE802.3af (15.4w) power supply standards
8, Support PoE management, PoE watchdog
9, Surge Protection: General 6KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level C)

【Specification】

I/O Interface

Power

AC100-240V/50-60Hz

Ethernet

24*10/100/1000Mbps POE Port

4*10G SFP+ Port

1*RJ45 Console Port

1*USB Port

Performance

Capacity

128Gbps

Packet Forwaring Rate

95.23Mpps

DDR SDRAM

128MByte

Flash Memory

16MByte

Packet Buffer Memory

12Mbit

MAC Address

16K

Jumbo Frame

10Kbytes

VLANs

VLAN range 1-4094, with a maximum active VLAN of 4K

Standard

Network Protocol

IEEE 802.3: Ethernet MAC Protocol

IEEE 802.3i: 10BASE-T Ethernet

IEEE 802.3u: 100BASE-TX Fast Ethernet

IEEE 802.3ab: 1000BASE-T Gigabit Ethernet

IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)

IEEE 802.3ae: 10G Ethernetoptical fiber

IEEE 802.3az: Energy-efficient Ethernet

IEEE 802.3ad: Standard method of performing link aggregation

IEEE 802.3x: flow control

IEEE 802.1ab: LLDP/LLDP-MED(Link Layer Discovery Protocol

IEEE 802.1p: LAN Layer 2 Qos/Cos protocol (multicast filtering function) related to traffic priority

IEEE 802.1q: VLAN Bridge Operation

IEEE 802.1x: Client/Server Access Control and Authentication Protocol

IEEE 802.1d: STP

IEEE 802.1s: MSTP

IEEE 802.1w: RSTP

PoE Protocol

IEEE802.3af15.4W)

IEEE802.3at 30W)

Industry Standard

EMS:EN61000-4-2(ESD)

EN61000-4-5(Surge)

Network Medium

10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m)

100Base-TX: Cat5 or above UTP/STP(≤100m)

1000Base-TX: Cat5 or above UTP/STP(100m)

Multi-mode Fiber: 50/125, 62.5/125, 100/140um

Single-mode Fiber: 8/125、8.7/125、9/125、10/125um

Certification

Safety Certificate

CE、FCC、RoHS

Environment

Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity :10%~90%,non-condensing Storage Temperature:5%~95%,non-condensing

Function Indication

SYS (System Indicator)

Flashing: System startup

Lighting: System Running

PoE

PoE Indicator

Lighting:PoE on

Un-Light:PoE off

ACT(Data light

Flashing: Data transmission

Not lit: No data transmission

Physical Specification

Structure Size



Product Dimensions: 440*280*44mm

Packing Dimensions: 500*365*85mm

Product N.W: 4.03KG

Product G.W: 5.15KG

Packing Info



Carton Dimensions: 520*445*385mm

Packing quantity: 5 sets

Packing weight: 26.75KG

Power Voltage

Input voltage: AC100-240V/50-60Hz

Power supply: 52V 7.5A  12V4A

Power Consumption

Product Consumptionmaximum 33W

PoE Budgetmaximum 390W

Package List

Ethernet switch 1 set, Instruction manual 1 pcs, Certificate1 pcs, Power cord 1 pcs Serial cable 1 pcs, Brackets 1 pair
