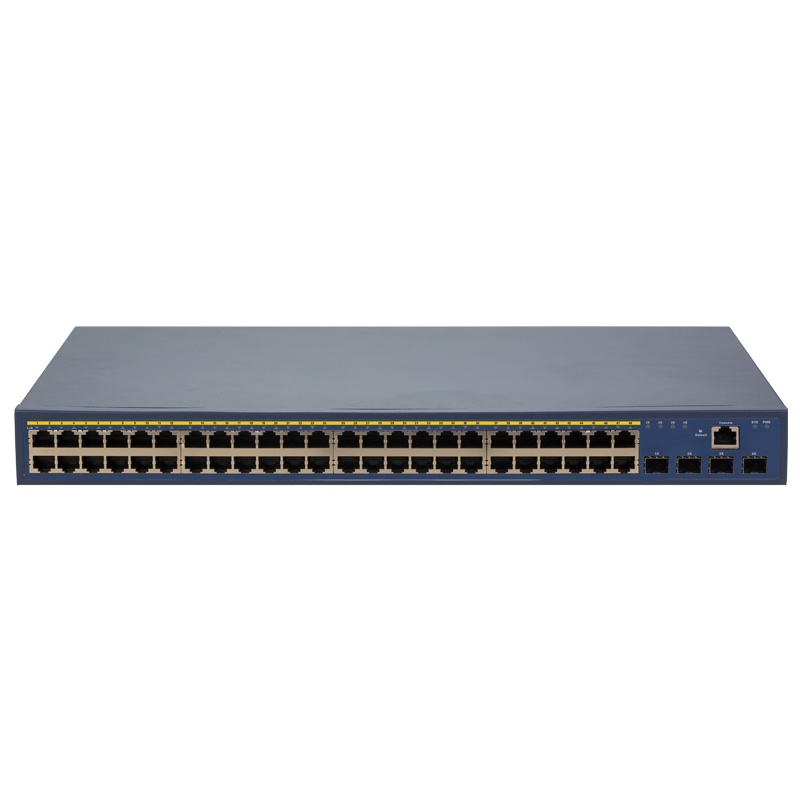

52 ports full Gigabit Layer 2 Managed PoE Switch

Product No.：SST-MP48ET4FT
Online Inquiry

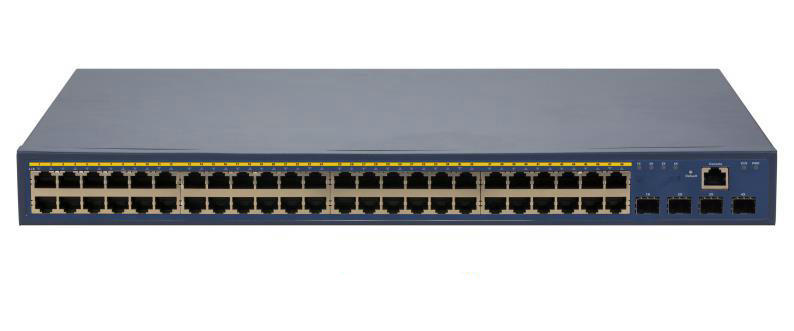

(SST-MP48ET4FT)

Product Description

SST-MP48ET4FT management switch is a comprehensive Gigabit network management switch, which provides a

new generation of high-performance hardware and software platforms, providing flexible, cost-effective full

Gigabit access and upstream ports, supporting complete security protection. Mechanism, perfect ACL / QoS

strategy and flexible VLAN feature, easy to manage maintenance, meet users for network equipment easy to

manage, high security, low-cost networking requirements for campus, hotel and enterprise park network access,

more Application scenario.

Product performance

Powerful business processing capabilities

● Support MLD Snooping, IGMP Snooping, to meet the multi-terminal high-definition video surveillance and

video conference access requirements

● Support proxy ARP

, so that hosts on the same network segment and different physical networks can

communicate normally

● Support GVRP, realize the dynamic distribution, registration and attribute propagation of VLAN, reduce the amount of manual configuration, and ensure the correctness of the configuration

● Support IEEE 802.1Q VLAN, which can be based on the three port modes of "Access", "Trunk" and "Hybrid",

which can be used by users to flexibly divide VLAN

● Support QoS, support three priority modes based on port, based on 802.1P and based on DSCP and four queue

scheduling of Equ, SP

, WRR, SP+WRRalgorithm

● Support ACL L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, through the configuration of matching rules,

processing operations and time permissions to achieve the packet filtering Filter, provide flexible security access

control strategy

● Support DHCP server to assign IP addresses to hosts in the network

● Support DHCP Snooping, effectively prevent private DHCP server and ensure the legality of DHCP server

● Support DHCP OPTION 82 relay, switches in different interfaces or subnets can also obtain IP addresses,

reducing the number of DHCP servers

● Supports DHCP snooping, can restrict end user ports (untrusted ports) to only send DHCP requests, and discard

all other DHCP from user ports Message

● Support IEEE 802.1Q VLAN, MAC VLAN, protocol VLAN, Guest VLAN, Voice VLAN, users can flexibly divide

according to different needs VLAN

● Rich Layer 2 multicast functions, including static multicast group and dynamic multicast group, user quick leave mechanism function

Complete security protection mechanism

● Supports four-element binding of IP address, MAC address, VLAN and port to filter data packets

●Support ARP protection, against common gateway spoofing and man-in-the-middle attacks and other common

ARP spoofing and ARP flooding attacks in LAN

● Support IP source protection to prevent illegal address spoofing including MAC spoofing, IP spoofing, MAC/IP

spoofing

● Supports defenses such as DOS, distributed denial of service, spoofing, and viruses

● Support 802.1X authentication, provide authentication function for LAN computers, and control the

authorization status of controlled ports according to the authentication result

● Support port security and isolation, stop learning when the number of MAC addresses learned by the port

reaches the maximum number, prevent MAC address attacks and control port network traffic

● Support loop protection, root bridge protection, TC protection, BPDU protection, BPDU filtering, realize link

backup and path optimization

● Support loop loop detection to reduce repeated transmission of broadcast, multicast, and unknown unicast

messages by the device, resulting in a waste of network resources and even network paralysis. Effectively prevent

loops and ensure the stability and security of the network

● Support port alarms, master port status, and ensure network stability

PoE power supply capability

● PoE models support the IEEE 802.3af/at PoE power supply standard to meet the PoE power supply needs of

security monitoring, teleconference systems, wireless coverage and other scenarios

● Support PoE management, support total PoE output power setting, support single-port PoE output power

setting, support port PoE power supply priority setting, support custom PoE power supply time

● Automatic detection and identification of standard PoE power receiving equipment, intelligent power supply,

will not burn non-standard PoE power receiving equipment or ordinary equipment

● PoE models have a maximum PoE output power of 30W per port

● The PoE port supports a priority mechanism, when the remaining power is insufficient, the power supply of the

high-priority port is guaranteed first

Diverse reliability protection

● Support STP/RSTP/MSTP Spanning Tree Protocol, eliminate Layer 2 loop and realize link backup

● Support link aggregation, manual aggregation, static aggregation and dynamic aggregation, based on source

port, source MAC, destination MAC, source IP, destination IP, source IP port,The method of target IP port can be

up to 8 aggregation groups, effectively increasing link bandwidth, realizing load balancing, link backup, and

improving link reliability

● Support BPUD bridge nesting protocol, use BPDU to dynamically select root bridge and backup bridge, which

can be used to eliminate bridge loop

● Supports ERPS ring network protection. When a link on the Ethernet ring network is disconnected, the

communication between each node on the ring network can be quickly restored. Single-ring and multi-ring

networking are available, supporting fast Speed ring network (fault self-healing time <50ms)

Loose operation and maintenance

● Support Web network management, CLI command line (Console, Telnet, SSH V1/V2), SNMP (V1/V2/V3)

compatible with public MIBS and other diversified management Management and maintenance

● Support HTTPS, SSH V1/V2, SSL V3 and other encryption methods, making management more secure

http://www.sunsoont.comhttp://www.sunsoont.com

● Support RMON, system log, hierarchical warning, support remote log server

● Support LLDP, which is convenient for the network management system to query and judge the communication

status of the link

● Support HTTP software upgrade, configuration management

● Support CPU monitoring and memory monitoring

● Support electrical port test, optical module information detection

● Support HTTP, TFTP software upgrade, configuration management

Hardware specifications

Model	SST-MP48ET4FT
Downlink ports	48*10/100/1000M Adaptive RJ45 ports
Uplink ports	4*1000M SFP fiber
PoE standard power supply	IEEE 802.3at、IEEE 802.3af
Maximum output power	450W
LED indicator	PWR, Link / Act
transmission mode	IEEE802.3 full duplex flow control and backpressure half duplex flow control
Bandwidth	104Gbps
Packet Forwarding Rate	77.38Mpps
MAC address	32K
Standard protocol	IEEE802.3i 10 BASE-TX IEEE802.3u 100 BASE-TX IEEE802.3ab 1000 BASE-T IEEE802.3z 1000 BASE-LX IEEE802.3x Flow Control IEEE802.1p IEEE802.1x IEEE802.1d IEEE802.1s IEEE802.3az EEE
Power supply	AC 100~240V 50/60HZ
Size	440mm × 360mm × 44mm
working temperature	Working Temperature: 0℃～45℃， Humidity: 10% ~ 90% Storage Temperature: - 20%～70%, Humidity: 5% ~ 95%

Software specifications

Loop protection

Support ERPS ring protection

Support 50MS loop since healing

Support BPDU protection, root protection and loopback protection

Summing tree (STP)

Support STP (IEEE 802.1D),

Support RSTP (IEEE 802.1W)

Support MSTP (IEEE 802.1s)

Support loop protection, root bridge protection, TC protection, BPDU protection,

BPDU filtering

DHCP

Support DHCP server

Support DHCP relay

Support DHCP Snooping

Support Option, Option82

VLAN

Support 4K VLAN

Support 802.1Q VLAN, Mac VLAN, protocol VLAN, Private VLAN

Support Guest VLAN, Voice VLAN

Support GVRP protocol

Support 1: 1 and N: 1 VLAN mapping function

MAC address table

Follow IEEE 802.1D standard

Support MAC address automatic learning and aging

Support static, dynamic, filter address table

Security feature

Based on user grading management and password protection

Support for port numbers, IP addresses, MAC addresses limit users access

Support HTTPS, SSL V3, TLS V1, SSH V1 / V2

Support IP-MAC-Port-VLAN quarter binding

Support ARP protection, IP source protection, DOS protection

Support DHCP Snooping, DHCP Attack Protection

Support 802.1x certification, AAA

Support RADIUS

Support TACACS +

Support port security, port isolation

Support CPU protection

Access Control (ACL)

Supports L2 (Layer 2) ~ L4 (Layer 4) package filter function

Provide a source MAC address, destination MAC address, source IP address, destination IP address, TCP / UDP protocol source / destination port number, protocol, and VLAN package filtering function

Support port mirror, port redirection, flow rate, QoS heavy mark

Support IPv4, IPv6ACL

Service quality (QoS)

Support 8 port queues

Support port priority, 802.1p priority, DSCP priority

Support WRR, strict priority scheduling algorithm

Multicast

Support IGMP V1 / V2 / V3 Snooping

Support MLD V1 / V2 Snooping

Support fast leaving mechanism

Support multicast VLAN

Support multicast filtering, packet statistics, unknown multicast discard
