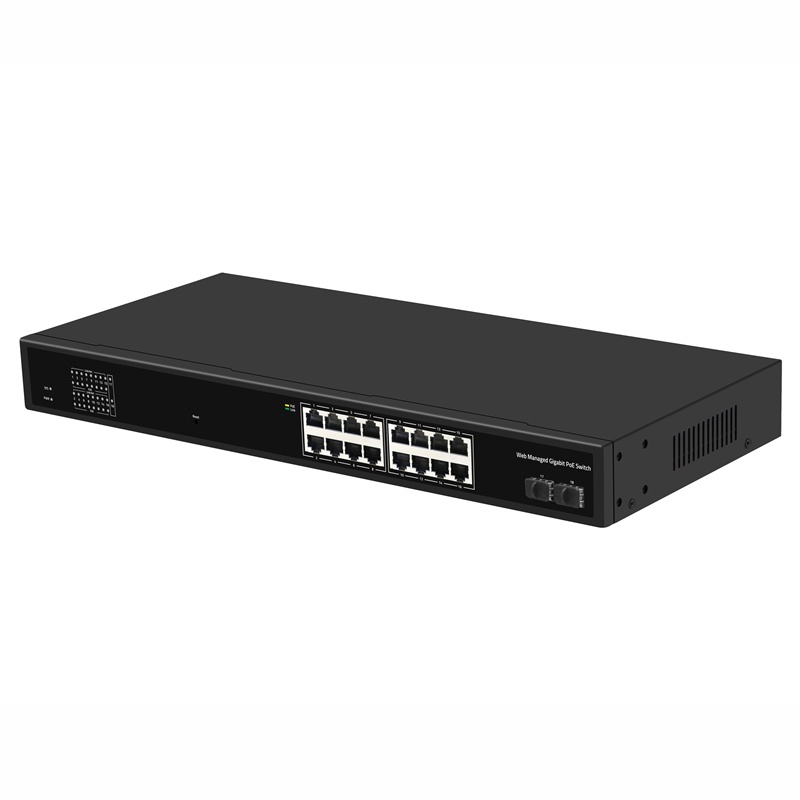

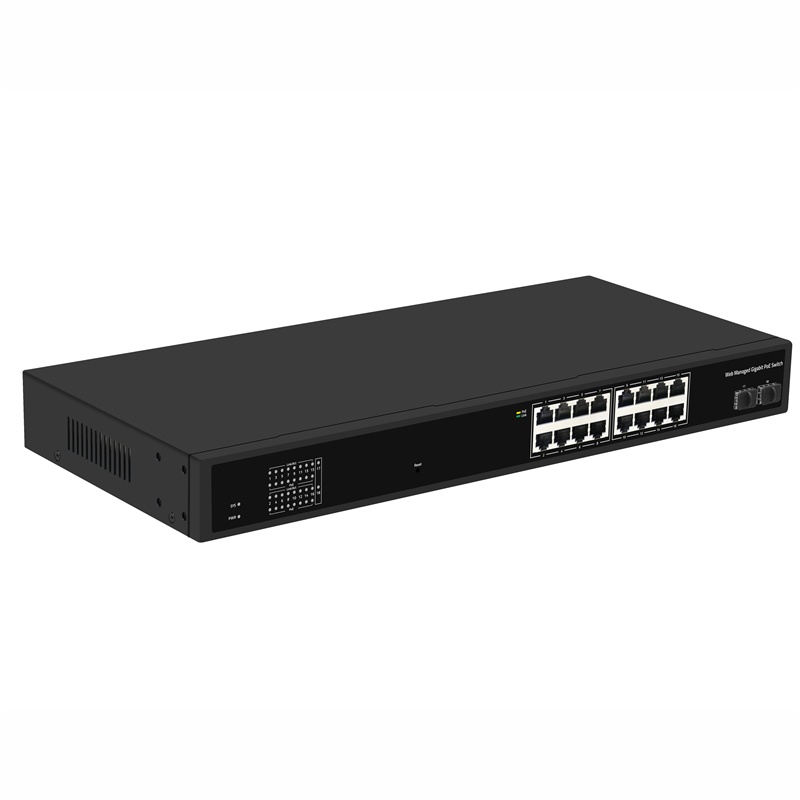

18 Port Gigabit Web Managed Ethernet PoE Switch

18 Port Gigabit Web Managed Ethernet PoE Switch

Product No.：SST-WP16E2S
Online Inquiry

Product Description

The 18 Port Gigabit Web Managed Ethernet PoE Switch adopts high-quality and high-speed network IC. It has a

fan less and silent design, which completely solves the problem of high noise when small switches are deployed

in an office environment.This switch has 16* Gigabit POE RJ45 ports+ 2* Gigabit SFP ports, which can provide seamless connection for

10/100/1000M Ethernet, supports WEB management, and is easy to manage and maintain. This product can be widely used in security network

video surveillance, hotels, campuses, and small and medium-sized enterprises. Network engineering and other occasions.

Main Feature

Ø Support 16* Gigabit PoE RJ45 ports+2* Gigabit SFP Ports;

Ø Support IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z standard;

Ø Ethernet port supports 10/100/1000M adaptive;

Ø Support port auto flip(Auto MDI/MDIX);

Ø Adopting a storage and forwarding exchange mechanism;

Ø All ports support line speed switching;

Ø 1U rack installation;

Ø Panel indicator lights monitor working status and help failure analysis;

Ø Support QOS data priority;

Ø Surge Protection: General 4KV, Differential 2KV(level B), ESD 8KV air, 6KV contact(level C)

Specification

I/O Interface
Power	AC100-240V / 50-60Hz
Ethernet	16Gigabit POE RJ45 Ports 2 Gigabit SFP Ports
Performance
Bandwidth	36Gbps
Pack Forward Rate	26.78Mpps
Pack Cache	4Mbit
VLAN	VLAN range 1-4094, with a maximum active VLAN of 31
MAC Address Table	8K
Transfer Mode	Storage & Forward
Standard
Network Protocol	IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (fiber optic) IEEE 802.3x: Flow Control
POE protocol	IEEE802.3af（15.4W） IEEE802.3at（30W） POE port output voltage: DC 44-57V POE power supply core: 1/2+; 3/6-
Industry Standard	EMS: EN61000-4-2 (ESD) EN61000-4-5 (Surge)
Network Medium	10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or above UTP/STP(≤100m) 1000Base-TX: Cat5 or above UTP/STP(≤100m)
Fiber Optic Medium	Multi mode: 50/125, 62.5/125, 100/140um Single mode: 8/125, 8.7/125, 9/125, 10/125um
Environment Standard
Working Environment	Working Temperature: -10~40°C Storage Temperature: -40~70°C Working Humidity: 10%~90%，non-condensing Storage Temperature: 5%~95%，non-condensing

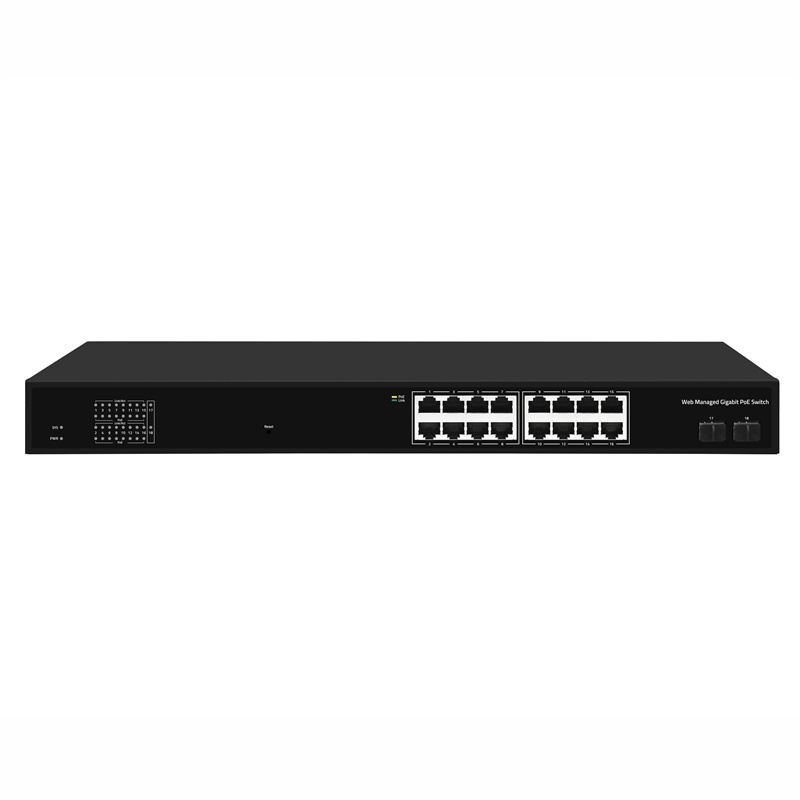

Function Indicator
Indicator	PWR(Power Indicator), 1000M(Link Light), Act(Link&Data Light)
PWR	On: Powered on Off: Powered off
1000M	On: Gigabit link on Off: 10/100M Link or Link off
Act	On: Link connecting Flashing: Data transmitting Off: Link off
Reset	Short press to restart long press 5S to restore factory settings
Physical Structure
Structure size	Product Size: 44020444mm Package Size: 50029085mm Product Net-Weight: KG Product Gross-Weight: KG
Packing Info	Carton Size: 520445310mm Packing Qty: 5 PCS Packing Weight: KG

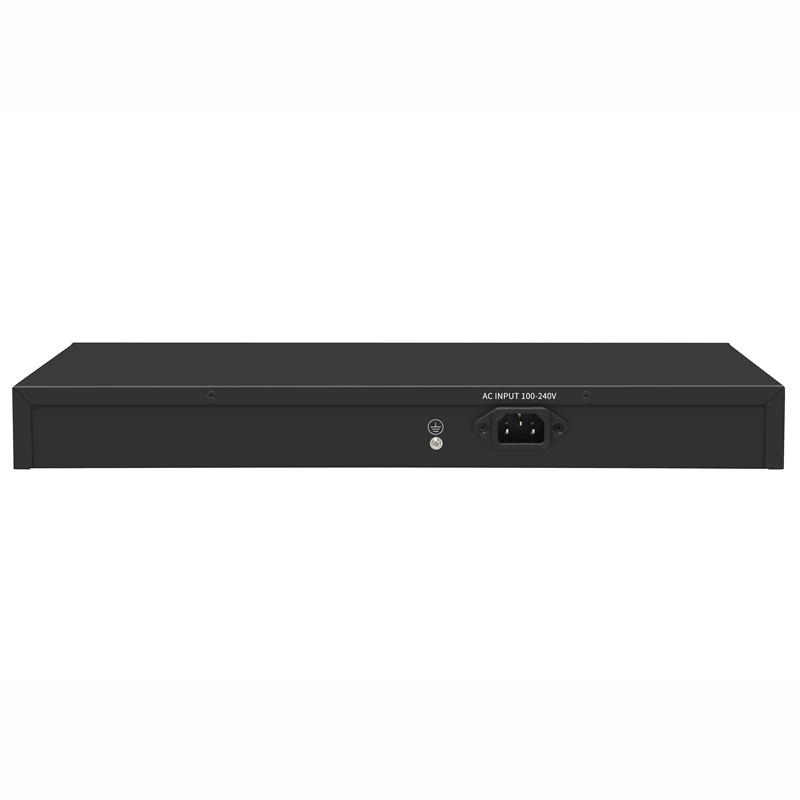

Power Voltage	Input Voltage: AC 100-240V 50/60Hz Power Supply: 52V 5.76A
Consumption	Mother Board Power: Maximum 20W POE Power: Maximum 280W
Packaging List	1 Switch, 1 Power cord, 1 Manual, 1 Certificate of Conformity, and 1 Pair of Hanging Ears

FUNCTION

L2 Function
Port	Port Switch Configuration
	Port Speed Configuration
	Port Duplex Configuration
	Port Flow Control Configuration
	Jumbo
	EEE
Link Aggregation	Static Group
	Up to 4 groups
	Max. 8 members per group
Storm Control	Board cast
	Unknown Multicast
	Unknown Uni cast
Port Mirroring	support
Port Security	MAC Address Constraints
Port Isolation	support
Port Rate-limit	support
Loop back Detection	support
VLAN	Access/Trunk/Hybrid
VLAN	VLAN range 1-4094, with a maximum active VLAN of 31
MAC Address	Dynamic Address
	Static Address
	Address Lookup
Spanning Tree Protocol	STP/RSTP
Spanning Tree Protocol	Edge Port
Multicast	IGMP Snooping
	IGMP V1/V2
	Router Port
	Static IGMP Join
QOS	Traffic classification based, Strict priority and WRR
	Port Priority
	Supports up to 8 queues per port
Services
Access Protocol	HTTP
Port Statistics	support
Management	support
Manager IP	Static Address
Manager IP	DHCP Client
User	support
Firmware	Firmware Upgrade
Configuration	Upload and download
Save	support
Restart	support
Factory Defaults	support
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
