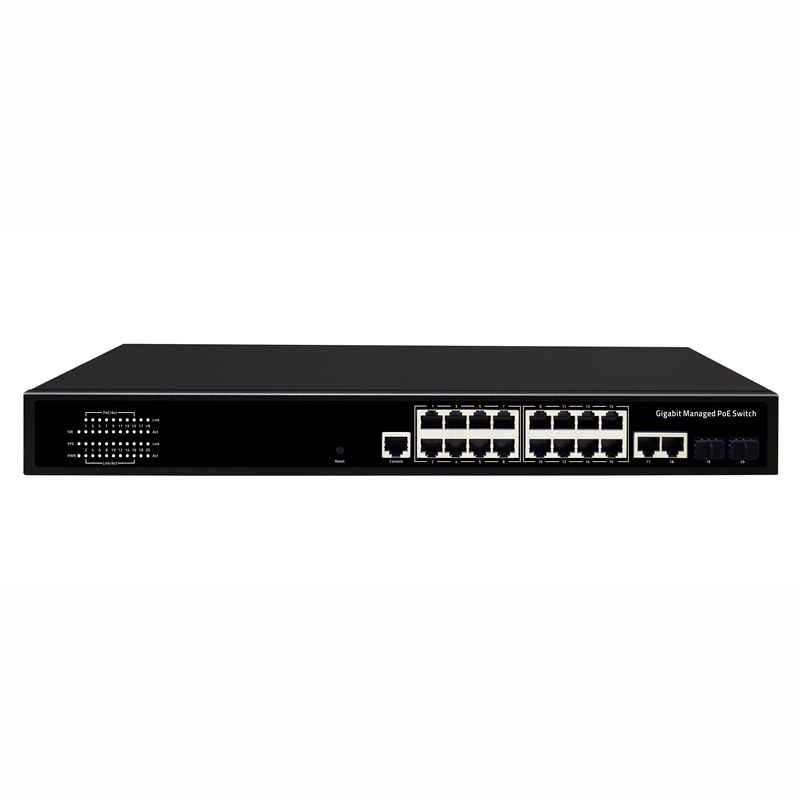

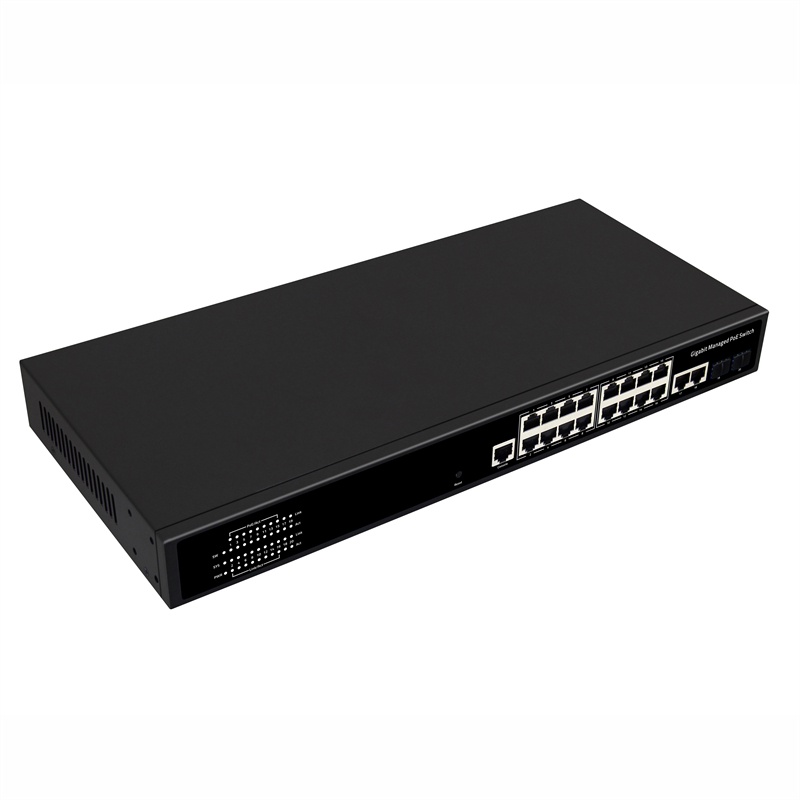

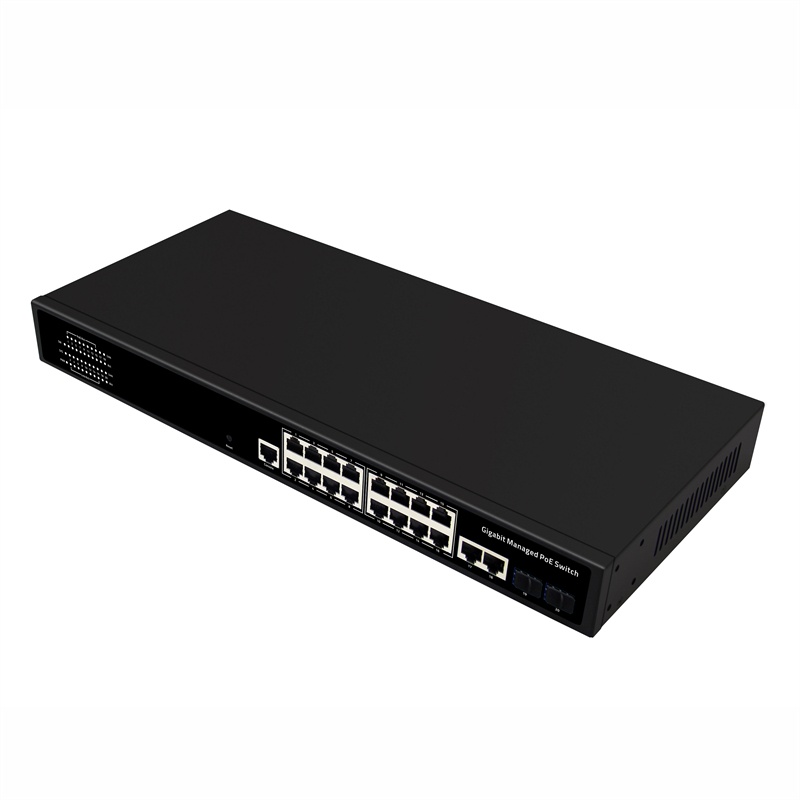

Input/output Port

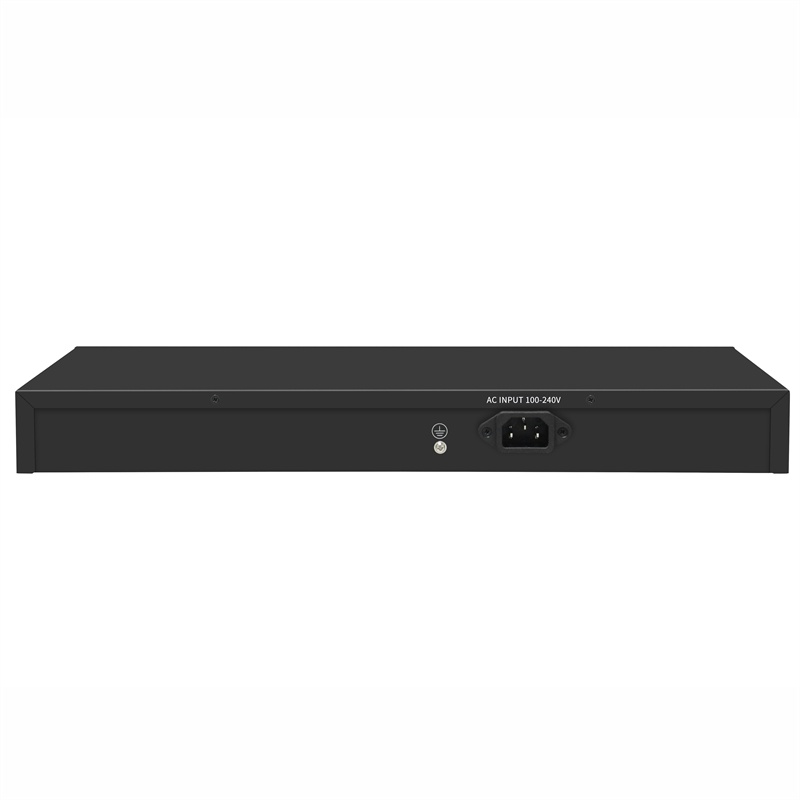

AC INPUT

AC100-240V，50/60Hz

Ethernet Port

16 * 10/100/1000Mbps PoE Port

2* 10/100/1000Mbps Uplink Port

2* 1000Mbps SFP Port

1 * RJ45 Console Port

Performance

Bandwidth

40Gbps

Packet Forwarding rate

29.76Mpps

DDR SDRAM

128MByte

Flash Memory

16MByte

Packet Buffer Memory

4Mbit

MAC Address

8K

Jumbo frame

10Kbytes

VLANs

VLAN range 1-4094, with a maximum active VLAN of 256

Standard

Network Protocols

IEEE 802.3：Ethernet MAC Protocol

IEEE 802.3i：10BASE-T Ethernet

IEEE 802.3u：100BASE-TX Fast Ethernet

IEEE 802.3ab：1000BASE-T Gigabit Ethernet

IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber)

IEEE 802.3ad：Standard method for performing link aggregation

IEEE 802.3x：Flow control

IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)

IEEE 802.1q：VLAN Bridge Operation

IEEE 802.1x：Client/Server Access Control and Authentication Protocol

IEEE 802.1d：STP

IEEE 802.1s：MSTP

IEEE 802.1w：RSTP

PoE protocol

IEEE802.3af （15.4 W）

IEEE802.3at （30 W）

Industry Standard

EMS: EN61000-4-2 (ESD)、

EN61000-4-5 (Surge)

Network Media

10BASE-T: Cat3、4、5 or above UTP(≤100 M)

100BASE-TX: Cat5 or above UTP(≤100 M)

1000BASE-TX: Cat5 or above UTP(≤100 M)

Fiber Medium

Multi-mode Fiber: 50/125、62.5/125、100/140um

Single-mode Fiber: 8/125、8.7/125、9/125、10/125um

Certification

Safety Certificate

CE、FCC、RoHS

Environmental standards

Working Environment

Operating temperature: -10~50°C

Storage temperature: -40~70°C

Operating Humidity: 10%~90%, No condensation

Storage Humidity: 5%~95%, No condensation

Function indication

Indicator

PWR, SYS, PoE/ACT, Link/ACT

PWR（Power Indicator）

Lighting：Powered

Un-Light：No Power

SYS（System Indicator）

Flashing: System Start-up

Lighting: System Running

PoE/ACT

Lighting：PoE on

Un-Light：PoE off

Link/ACT

Lighting: Link connection

Flashing: Data transmission

Un-Light: Link disconnect

Reset

Short press restart, long press 5 seconds to restore factory Settings

Physical specifications

Product Information

Product Dimensions: 440*204*44mm

Package Dimensions: 500*290*85mm

Product N.W: 2.65KG（200W）/ 2.78KG（300W）

Product G.W: 3.31KG（200W）/ 3.44KG（300W）

Packing Information

Carton Dimensions: 520*445*310mm

Packing Qantity: 5pcs

Packing weight: 17.55KG（200W）/ 18.2KG（300W）

Voltage

Input Voltage: AC100-240V/50-60Hz

Power supply: 52V 3.84A / 52V5.76A

power

Product power: maximum 15W / maximum 15W

POE power: maximum 180W / maximum 280W

Packing list

1. Ethernet switch: 1 Set

2. Instruction manual: 1 PCS

3. Certificate, warranty card: 1 PCS

4. Power cord: 1PCS

5. Serial cable: 1PCS

6. Rack ear: 1 Pairs

L3 Function

IPv4

IPv4 VLAN Interface

IPv4 Static Routes

ARP

IPv6

IPv6 VLAN Interface

IPv6 Static Routes

IPv6 ND

L2 Function

Port

Port Switch

Port Description

Port Speed

Port Duplex

Port Flow Control

Jumbo, Up to 10K

EEE

Fiber Module(DDM)

Link Aggregation

Supports load balance policy;
Base on MAC and IP-MAC

Static and Dynamic Group

Supports LACP

Up to 8 groups

Storm Control

Boardcast

Unknown Multicast

Unknown Unicast

Port Mirroring

One to one monitor

Many to one monitor

Ingress/Egress/Both

Up to 4 session groups

Port Security

MAC Address Constraints

Port Security MAC Address

Protect/Restrict/Shutdown

Port Isolation

Port Rate-limit

Loopback Detection

VLAN

Access/Trunk/Hybrid

VLAN Tunnel （Q-in-Q Tunnel）

Congurable VID from 1 - 4094;
Max. 256 static VLAN groups

Voice VLAN

MAC VLAN

Surveillance VLAN

Protocol VLAN

GVRP

MAC Address

Dynamic Address

Static Address

Filtering Address

Spnning Tree Protocol

STP/RSTP/MSTP

BPDU Filter

BPDU Guard

Edge Port

LLDP

LLDP

LLDP MED

Multicast

IGMP Snnoping

IGMP V1/V2/V3

Router Port

Static IGMP group address

IGMP groups filtering

Querier

MLD Snooping

MVR

QoS

Traffic classification based, Strict priority and WRR

Port Priority

802.1P Priority

IP TOS Priority

IP DSCP Priority

Supports up to 8 queues per port

Priority Remarking

PoE

PoE Configuration

PoE Temperature

PoE Type/Level/Power/Voltage/Current

PoE Switch

PoE Watchdog

PoE power AF/AT adaptation

PoE Schedule

PoE Port Timer Reboot

Services

DHCP

DHCP Server

IP Pool

Static Binding

DHCP Relay

Access Protocol

HTTP

HTTPS

Telnet

SSHv2

Manager ACL

Session Timeout

Password Retry Count

Silent Time

Security

AAA

RADIUS

TACACS+

802.1X

Base on port/MAC/local/WEB

DHCP Snooping

Global/VLAN

Option 82

Circuit ID

IP Source Guard

Dynamic ARP Inspection

DoS

ACL

MAC ACL

IPv4 ACL

IPv6 ACL

Diagnostics

Syslog

Logging Message

Remote Server

Ping

Traceroute

Copper Test

UDLD

Managemnet

Manager Access

Console

HTTP/HTTPS

Telnet

SSH

SNMP

Manager IP

Static Address

DHCP Client

Supports IPv4 and IPv6 address

Manager VLAN

DNS

Time Synchronization

SNTP

Manual Time

SNMP

V1/V2C/V3

Community

V3 User

Group

Trap Host

SNMP MIB

RFC 1213 MIB-II

RFC 1493 Bridge MIB

RFC 1643 Ethernet MIB

RFC 2819 RMON MIB (Groups 1, 2, 3 and 9)

RFC 2863 Interface MIB

LLDP

Private MIB

RMON

Statistics

History

Event

Alarm

User

Firmware

Firmware Upgarde

Configuration

Upload and download

Save

Restart

Factory Defaults

Standards Compliance

IEEE 802.3x flow control and back pressure

IEEE 802.3ad port trunk with LACP

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN tagging

IEEE 802.1x Port Authentication Network Control

IEEE 802.1ab LLDP

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

RFC 768 UDP

RFC 793 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP v1

RFC 2236 IGMP v2

RFC 3376 IGMP v3

RFC 2710 MLD v1

FRC 3810 MLD v2
