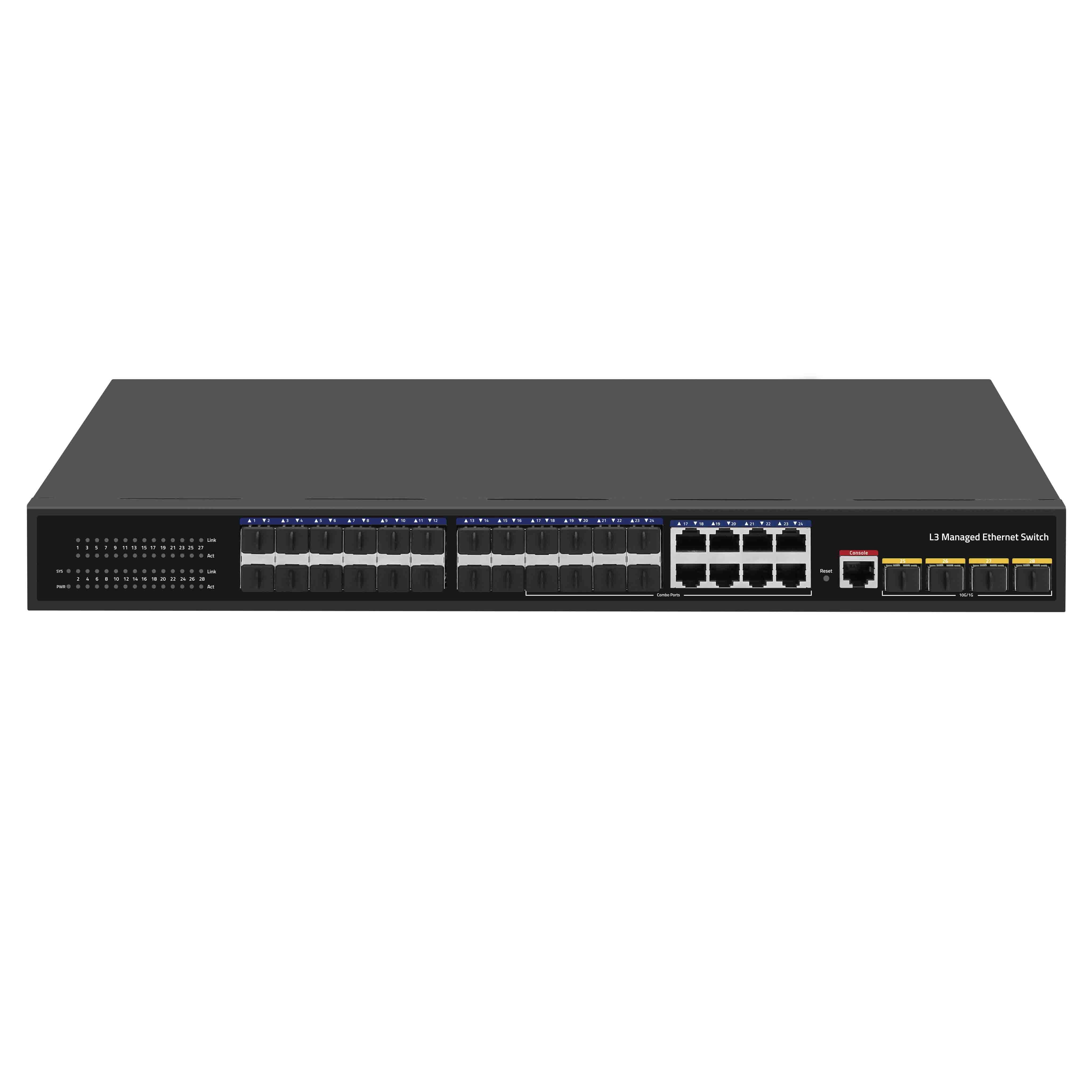

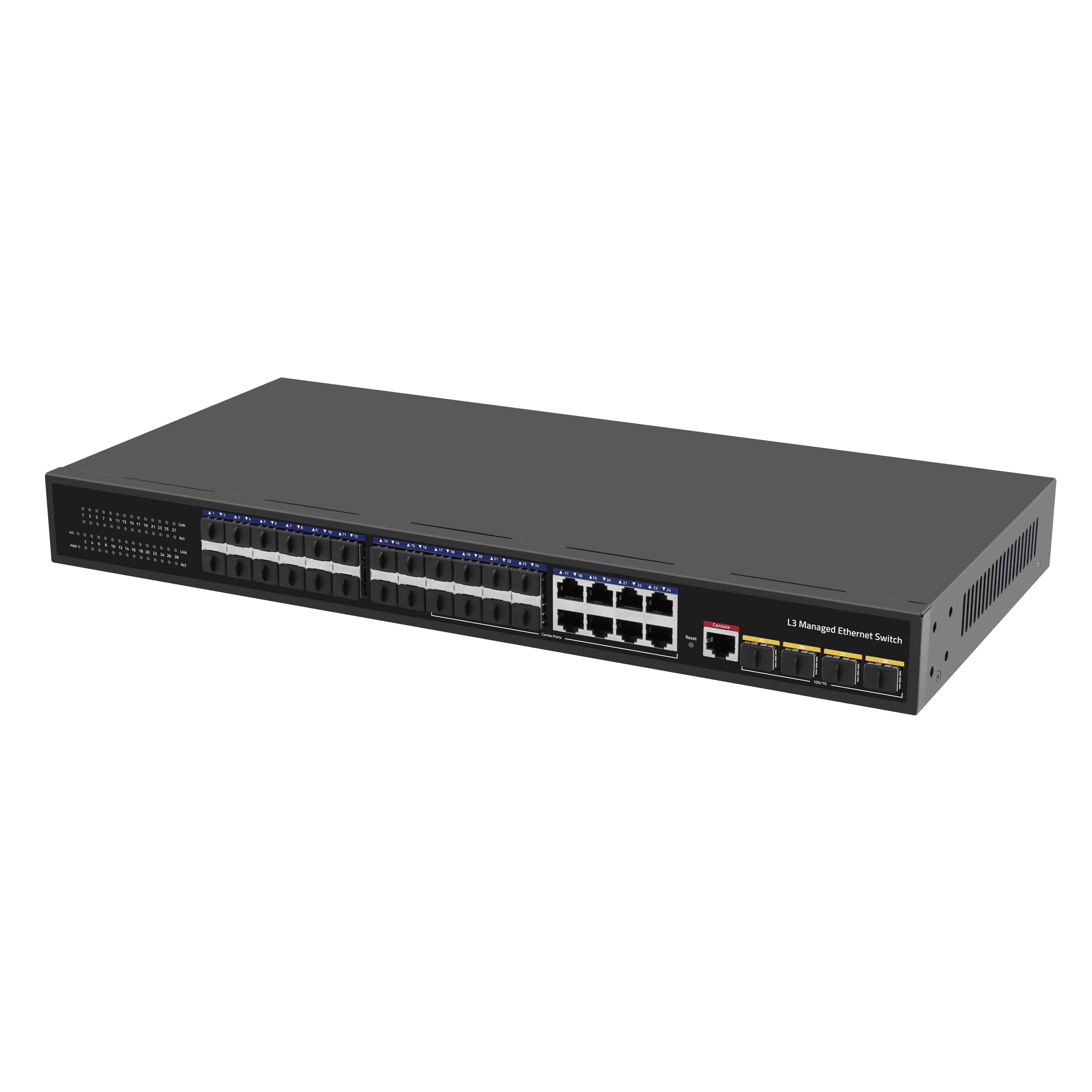

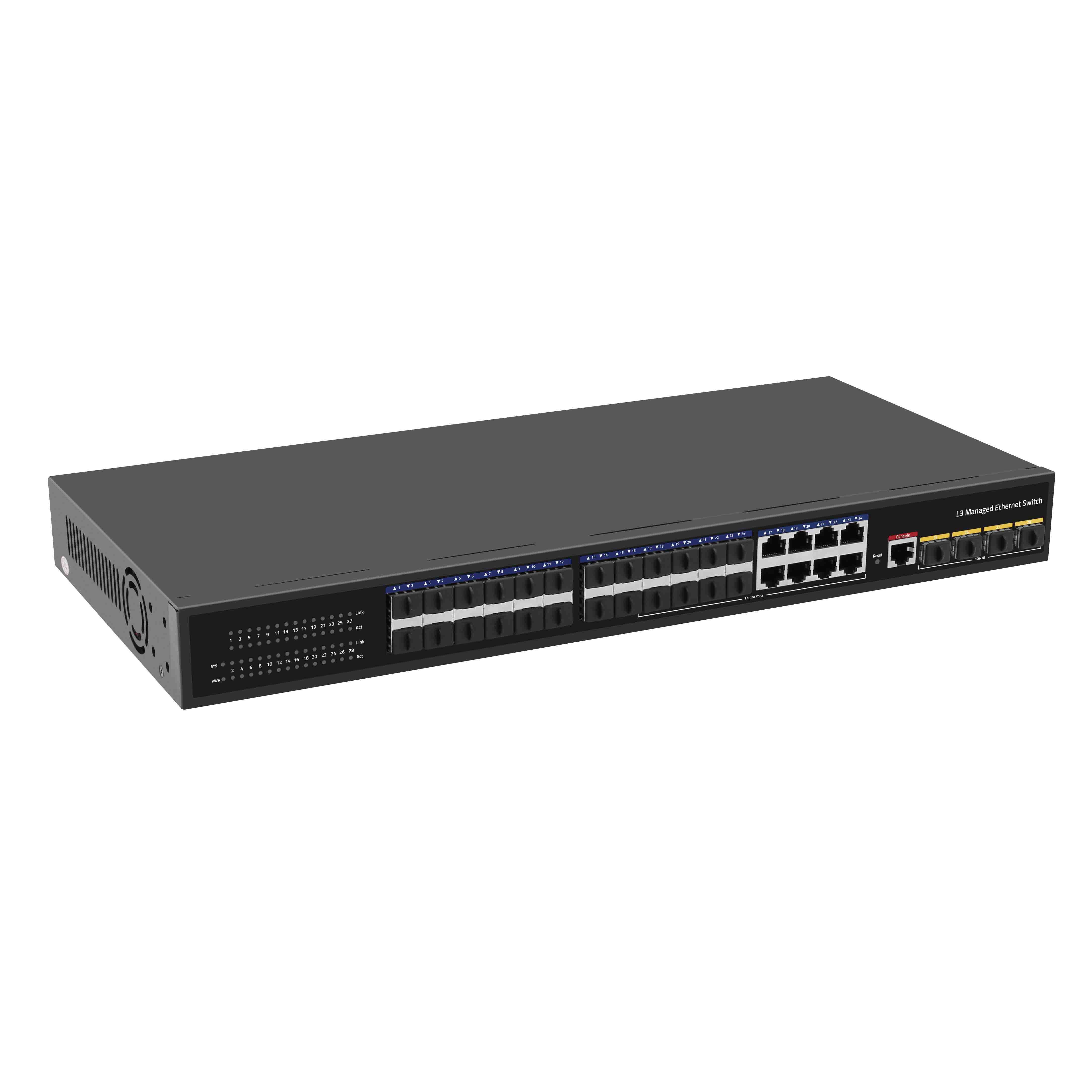

28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch

28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch


28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch, support 24* 1000M  SFP Ports, 8* 10/100/1000M adaptive Ethernet Ports(Combo), 4* 10G SFP Ports, 1* Console Port. Perfect security control strategy and CPU protect policy improve fault tolerance and ensure stable operation of the network and load balancing of the interconnection;

The device supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions. With advanced security functions and quality of service (QoS), it can be used as core layer, distribution layer ,and access layer switch with high density port and easy management, is an ideal choice for various business network applications.

Main feature

1,  Support 24* 10/100/1000M adaptive SFP Ports, 8* 10/100/1000M adaptive Ethernet Ports(Combo), 4* 10G SFP +Ports, 1* Console Port;

2, Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard;

3,  L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2;

4,  Support STP/RSTP/MSTP(ERPS), support loop detection and self-healing, support remote loopback monitoring and control (802.3ah OAM);

5,  Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;

6,  Support IP address + MAC address + VLAN + Port binding, DHCP Snooping, support IP source and DAI protection;

7,  Support IPV4/IPV6, RIP, OSPF.

8,  Lightning protection: common mode 4KV, differential mode 2KV

Specification

I/O Interface

Power

AC 100-240V/50-60Hz

Ethernet

24* Gigabit SFP Ports

8* Gigabit Ethernet Ports(Combo)

4* 10G SFP+ Ports

1* Console Port

Performance

Bandwidth

128Gbps

Packet Forwarding Rate

95.23Mpps

DDR SDRAM

128MB

Flash Memory

16MB

Package Cache

12M

MAC Address

16K

Jumbo Frame

12Kbytes

VLANs

4096

Transfer Mode

Storage & Forwarding

MTBF

100000 Hours

Standard

Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Rapid Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3z (Gigabit Ethernet Optical Fiber Standard)

IEEE 802.3ae(10G Ethernet)

IEEE802.3x (Flow Control)

IEEE 802.3az (Energy Efficient Ethernet)

IEEE 802.3ad(Link Aggregation)

IEEE 802.1AB LLDP/LLDP-MED(Link Layer Discovery Protocol)

IEEE 802.1D Spanning Tree Protocol(STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IEEE 802.1Q (Visual LAN)

IEEE 802.1p (VLAN Label)

IEEE 802.1X (Client/Server Access Control and Authentication Protocol)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD),

EN61000-4-4 (EFT),

EN61000-4-5 (Surge)

Network Medium



 10BASE-T: Cat 3, 4, 5 or above UTP(≤100m)

 100BASE-TX: Cat 5 or above UTP(≤100m)

 1000BASE-TX: Cat 5 or above UTP(≤100m)

Optical Medium



Multi-mode Fiber: 850nm, 1310nm   Transmission Distance: 550m/2Km

Single-mode Fiber: 1310nm, 1550nm  Transmission Distance: 20/40/60/80/100/120Km

Certification

Safety Certificate

CE, FCC, RoHS

Environment Standard

Working Environment

Working Temperature:-10~50°C

Storage Temperature:-40~70°C

Working Humidity :10%~90%,non-condensing

Storage Temperature:5%~90%,non-condensing

LED Indicator

Indicator

PWR, SYS, SW, PoE/ACT, Link/ACT

PWR (Power Light)

On: Powered on,

Off: Powered off

SYS (System Light)

On: System Normal,

Flashing: System Starting or Failed

Link/ACT (Link & Data)

On: Link Connecting,

Flashing:Data Transmitting,

Off: Link disconnect

Physical Specification

Structure Size

Product Dimensions: 440*205*44mm

Package Dimensions: 500*290*85mm

Product N.W: 3.06KG

Product G.W: 3.63KG

Packing Info

Carton Dimensions: 520*445*310mm

Packing Quantity: 5 PCS

Packing Weight: 19.15KG

Power Voltage

 Voltage: AC 100-240V/50-60Hz

 power : 12V 8A

Power Consumption (Max)

38W

Package List

Ethernet switch: 1 Set, Instruction manual: 1 PCS, Certificate: 1 PCS, Power cord: 1PCS, Serial cable: 1PCS, Rack ear: 1 Pairs

Order Info

SST-MTG24S8ET

28 Port 10G Uplink 24* SFP Port Gigabit L3 Managed Ethernet Switch


Software Function

Basic Function

Support hardware watchdog, factory reset, system and port LED

Support global information, statistical information, log information

Support User management, alarm management, configuration management

Support Port rate, duplex, flow control, maximum frame length configuration

Support Port mirroring, port speed limit, port energy saving

Layer 3 Interface

Support Layer 3 Interface

Support IPv4, IPv6 address configuration

Support ARP configuration

Support ND configuration

Layer 3 Routing

Support IPv4 static routing

Support IPv6 static routing

Support RIP V1/V2

Support OSPF

DHCP

Support DHCP server

Support DHCP relay

Support DHCP Snooping

VLAN

Support 4K VLAN

Support 802.1Q VLAN, based on port VLAN

Support Access, Trunk, Hybrid VLAN mode

Support GVRP (VLAN registration protocol)

Support MAC VLAN, IP VLAN

Support Voice VLAN

MAC Address

Support MAC address automatic learning and aging

Support Static, dynamic, filtered address table

Safety Features

Password protection

Support Restrict user access based on port number, IP address, MAC address

Support HTTPS, SSH V1/V2

Support VLAN-IP-MAC-PORT binding

Support ARP detection, IP source protection, DoS protection

Support DHCP Snooping, DHCP Attack protection

Support 802.1X Certification

Support AAA (Authentication, Authorization, Accounting), Support RADIUS protocol, TACACS+

Support Port Security, Port Isolation

Access Control

Support L2(Layer 2)~L4(Layer 4) Packet filtering function

Support Port mirroring, flow rate limiting, QoS remarking

QOS

Support 8 port queues

Support Port priority, 802.1P priority, DSCP priority

Support SP, WRR Priority scheduling algorithm

Spanning Tree

Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocol

Support Multi-instance, Support Aggregate interface

Support BPDU protection

Multicast

Support IGMP v1/v2/v3 Snooping

Support MLD v1/v2 Snooping

Support Layer 2 multicast fast leave mechanism, querier

Support Layer 2 IPv4 static multicast

Support Layer 2 IPv6 static multicast

Support IGMP v1/v2/v3 Layer 3 multicast

Storm Suppression

Support multicast suppression

Support broadcast storm suppression

Support unknown unicast suppression

Ring Protection

Support Ring Protection

Link Aggregation

Support Static Aggregation

Support LACP Dynamic Aggregation

Support based on IP, MAC, mixed load-balancing modes

Maximum support 8 aggregation groups (8 ports per aggregation group)

IPv6

Support IPv6 Ping, IPv6 Traceroute, IPv6 Telnet

Support IPv6 SSH

Support IPv6 HTTP, IPv6 HTTPS

Management & Maintenance

Support WEB Management (HTTP、HTTPS)

Support CLI (Telnet, SSH V1/V2, Local serial port)

Support SNMP V1/V2/V3

Support RMON V2

Support LLDP Device discovery

Support SNTP Time synchronization

Support DNS Client

Support CPU Monitoring, Memory Monitoring

Support System log, classification warning

Support Ping, Traceroute detection, cable detection
