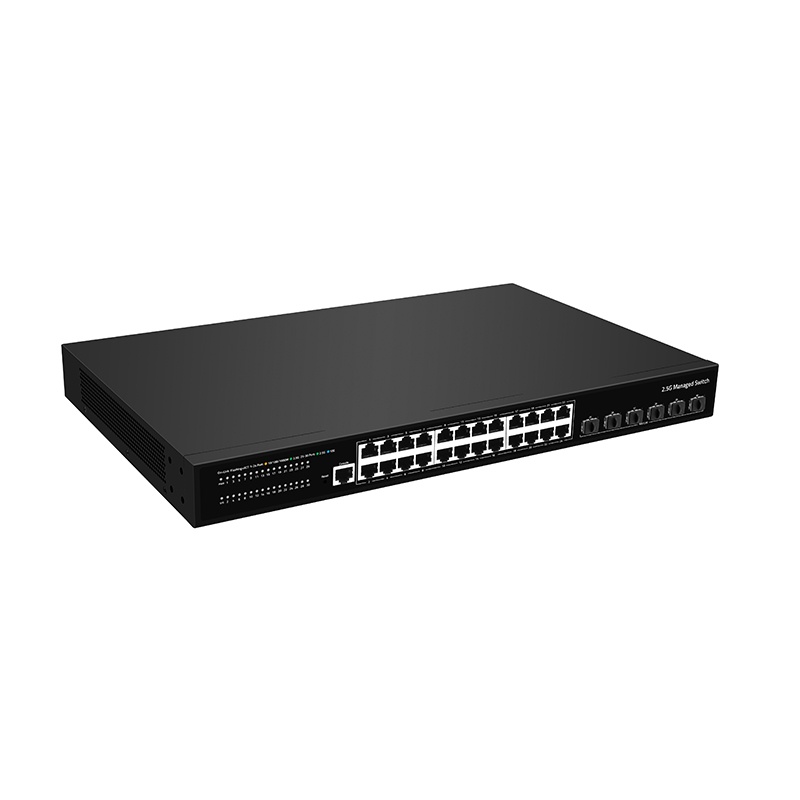

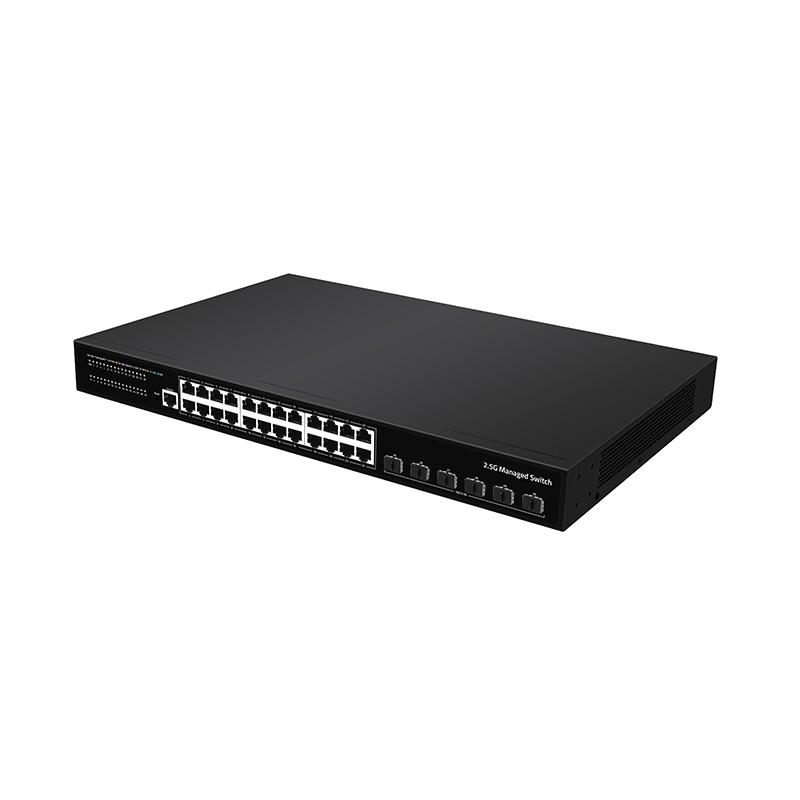

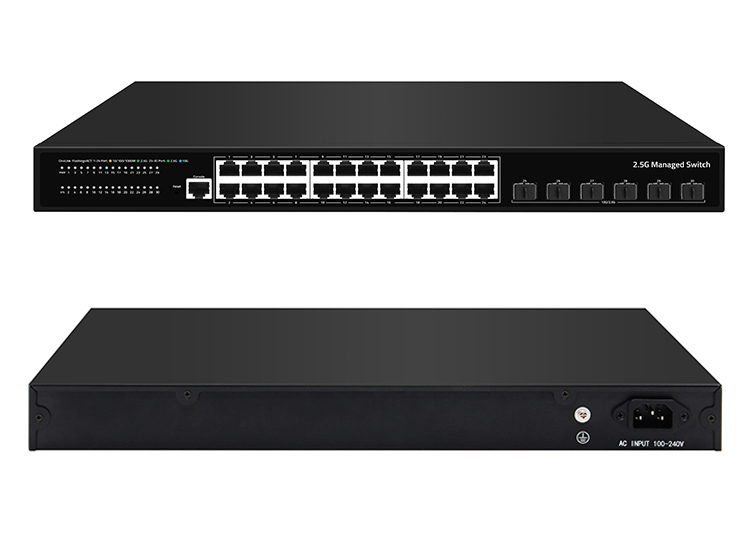

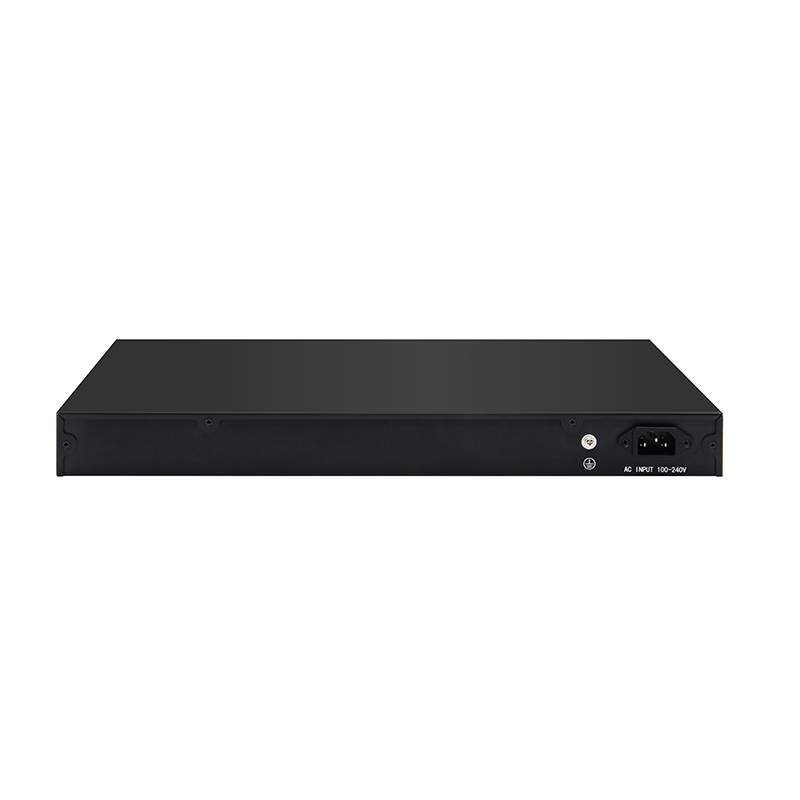

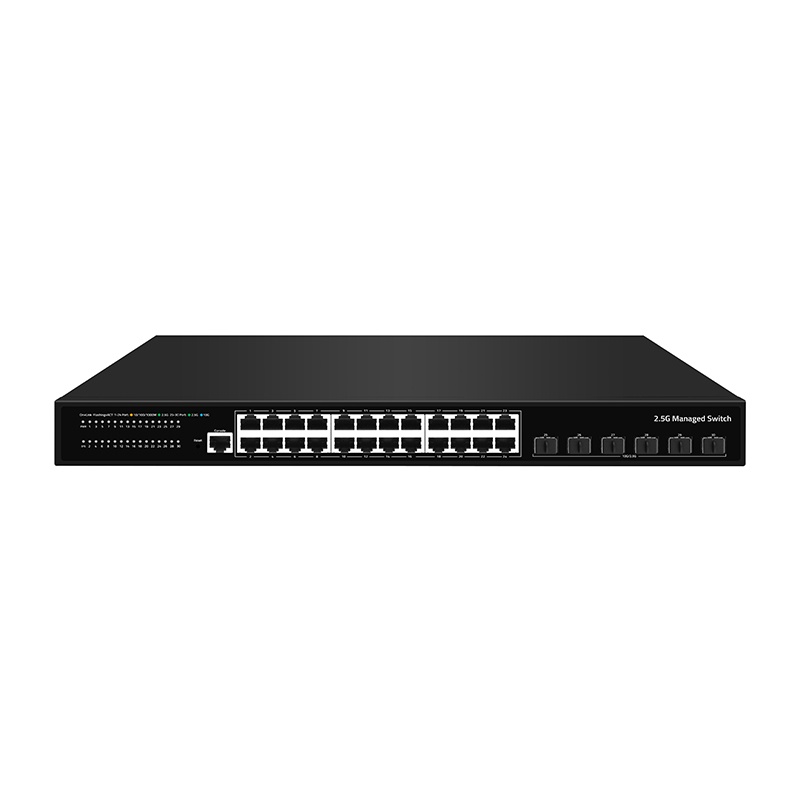

30 Port L3 Managed 10G Uplink 2.5G Ethernet Switch(SST-MTG24E6S)

Production Description

30 Port L3 Managed 10G Uplink 2.5G Ethernet Switch, support 24* 100/1000/2500M adaptive RJ45 ports+6*
10Gb SFP+ port+1* RJ45 console port. Perfect security control strategy and CPU protect policy improve fault
tolerance and ensure stable operation of the network and load balancing of the interconnection; The device
supports automatic DoS attack defense and SNMP, IEEE 802.1, STP, RSTP, Link aggregation, and other functions.
With advanced security functions and quality of service (QoS), it can be used as core layer, distribution layer ,and
access layer switch with high density port and easy management, is an ideal choice for various business network
applications.

Main Feature
1, Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x,
IEEE 802.3z
, IEEE 802.3ab, IEEE 802.3ae standards;
2,  L3 management, support DHCP Server, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping v1/v2;
3,  Support STP/RSTP/MSTP (ERPS), support loop detection and self-healing, support remote loop back monitoring and control(802.3ah OAM); support IPV4/IPV6,RIP,OSPF;
4,  Support multiple VLAN division, MAC VLAN, Protocol VLAN, Private VLAN;
5, Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;
6,  Support IPV4/IPV6, RIP v1/v2, OSPF v2;
7,  Supports WEB, TELNET, CLI, SSH, SNMP, RMON management;
8,  Support Port Surge Protection: Common Mode 6KV, Differential Mode 2KV; ESD: Contact 6KV, Air 8KV;


Specification

I/O Interface

Power

AC100-240V/50-60Hz

Ethernet

24* 100/1000/2500M RJ45 Ports

6* 10G SFP+ Ports

1* RJ45 Console Port

Performance

Bandwidth

240Gbps

Packet Buffer

Memory

178.56Mpps

DDR SDRAM

512MByte

Flash Memory

32MByte

Package Cache

16Mbit

MAC Address Table

32K

VLANs

VLAN range 1-4094, with a maximum active VLAN of 4K

Standard

Network Protocol

IEEE 802.3: Ethernet MAC Protocol

IEEE 802.3i: 10BASE-T Ethernet

IEEE 802.3u: 100BASE-TX Fast Ethernet

IEEE 802.3ab: 1000BASE-T Gigabit Ethernet

IEEE 802.3z: 1000BASE-X Gigabit Ethernet (optical fiber)

IEEE 802.3ae: 10G Ethernet (optical fiber)

IEEE 802.3az: Energy Efficient Ethernet

IEEE 802.3ad: Standard method for performing link aggregation

IEEE 802.3x: Flow control

IEEE 802.1ab: LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1p: LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering

function)

IEEE 802.1q: VLAN Bridge Operation

IEEE 802.1x: Client/Server Access Control and Authentication Protocol

IEEE 802.1d: STP

IEEE 802.1s: MSTP

IEEE 802.1w: RSTP

Industry Standard

EMS: EN61000-4-2(ESD)

EN61000-4-5(Surge)

Network Medium

10BASE-T: Cat3, 4, 5 or above UTP(≤100 M)

100BASE-TX: Cat5 or above UTP(≤100 M)

1000BASE-TX: Cat5 or above UTP(≤100 M)

Fiber Optic Medium

Multimode fiber: 50/125, 62.5/125, 100/140um

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um

Environment

Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~95%, non-condensing

Indication

PWR

On: Power on

Off: Power off

SYS

On: The system is operating normally

Flashing: System startup in progress

Warning light

System temperature or voltage abnormal alarm

Link Port light

Green on: 2.5G Link

Yellow on: 100/1000M Link

On: Link transiting

Off: Link not transiting

SFP Port light

Blue on: 10G Link

Green on: 2.5G Link

Flashing: Link transiting

Off: Link not transiting

Reset button

Short press for less than 5 seconds to restart

Long press for more than 5 seconds to reset to factory default

Physical specifications



Structure Size

ProductDimensions:440*281*44mm

PackageDimensions:500*365*85mm

ProductN.W:3.50KG

ProductG.W:4.21KG

Packing Info

CartonDimensions:520*445*385mm

PackingQantity:5psc

Packingweight: 22.05KG

Power Voltage

Working voltage: AC100-240V 50/60Hz

Power supply: DC 12V5A

Power Consumption

Total consumption:  maximum 52W

Package List

Ethernet switch: 1 Set, Instruction manual: 1 PCS, Certificate: 1 PCS, Power cord: 1PCS

Serial cable: 1PCS, Rack ear: 1 Pairs
