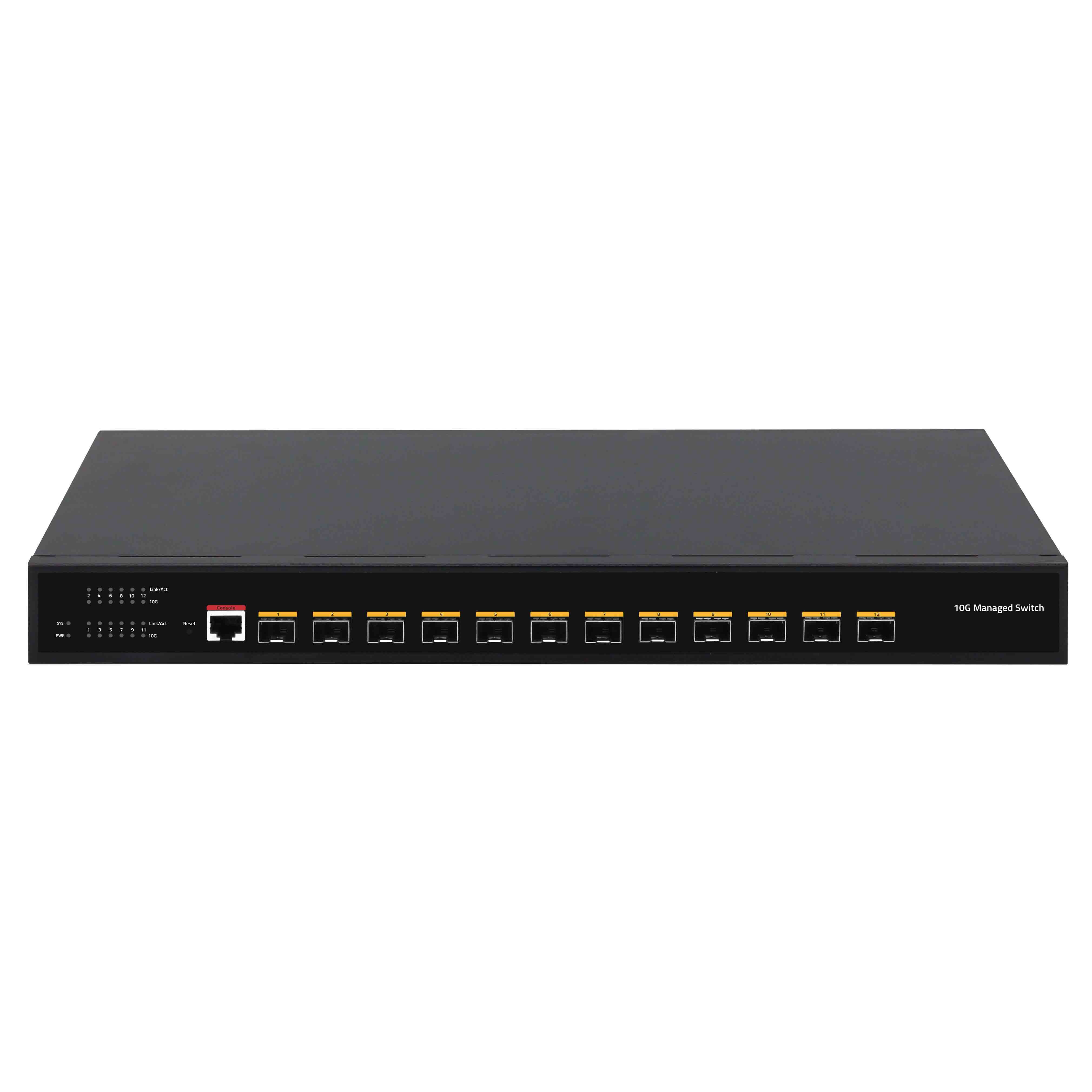

 12 Port 10G L3 Management Ethernet SwitchSST-TGL312S)

Product Description
12 Port  10G L3  Management Ethernet Switch, support  12* SFP+ ports, 1* RJ45 console port. Perfect security control strategy and CPU protect policy,
improve product fault
 tolerance, ensure stable network
operation and link load balancing; the device supports automatic DoS attack prevention, SNMP, IEEE 802.1q, spanning tree, rapid
generation tree protocol, link aggregation and other functions. Advanced security features and advanced Quality of Service (QoS), can be used as a core, distribution or access layer switch, with high port density, easy to manage, it is an ideal
choice for a variety of commercial network applications.

Main Feature】

Ø Support IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae standard;

Ø L3 Management, support DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2;

Ø Support STP/RSTP/MSTP( ERPS), loop detection and self-healing, support remote loop back monitoring and control 802.3ah OAM);

Ø Support multiple VLAN division, mac VLAN, Protocol VLAN, Private VLAN;

Ø Support IP address + MAC address + VLAN+Port binding, DHCP Snooping, support IP source and DAI protection;

Ø Support IPV4/IPV6.RIPv1/v2 OSPF

Specifications

I/O Interface

Power

AC100-240V/50-60Hz

Ethernet

12* 10G SFP+ Ports

1* RJ45 Console Port

Performance

Bandwidth

240Gbps

Packet Buffer Memory

178.56Mpps

DDR SDRAM

128MByte

Flash Memory

16MByte

Package Cache

16Mbit

MAC Address Table

32K

Jumbo frame

12Kbytes

VLANs

4096

Standard

Network Protocol

IEEE802.3 (Ethernet)

IEEE802.3u (Fast Ethernet)

IEEE 802.3ab (Gigabit Ethernet)

IEEE 802.3z (Gigabit Ethernet optical fiber)

IEEE 802.3ae (10G Ethernet)

IEEE802.3x (Flow control)

IEEE 802.3az (Energy Efficient Ethernet)

IEEE 802.3ad (link aggregation)

IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1D Spanning Tree Protocol(STP)

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

IEEE 802.1Q (Virtual Local Area Network)

IEEE 802.1p (VLAN Tags)

IEEE 802.1X (User Authentication)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)

Network Medium

Multi-mode Fiber: 50/125, 62.5/125, 100/140um

Single-mode Fiber: 8/125, 8.7/125, 9/125, 10/125um

Fiber Optic Medium

Multimode fiber: 50/125, 62.5/125, 100/140um

Single mode fiber: 8/125, 8.7/125, 9/125, 10/125um

Certification

Safety Certificate

CE, FCC, RoHS

Environment

Working Environment

Working Temperature: -10~50°C

Storage Temperature: -40~70°C

Working Humidity: 10%~90%, non-condensing

Storage Temperature: 5%~95%, non-condensing

Indication

Indicator

PWR (Power Indicator) SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator)

PWR( Power indicator)

On: Powered on

Off: Powered Off

SYS( System light)

On: System normal,

Flashing: system startup

10G( Link Light)

On: 10G Link

ACT(Data Light)

On: Connecting; Flashing: Data Transmit; Off: Disconnect

Physical specifications



Structure Size

Product Dimensions: 440*205*44mm

Package Dimensions: 500*290*85mm

Product N.W: 2.50 KG

Product G.W: 3.12 KG

Packing Info

Carton Dimensions: 520*445*300mm

Packing Quantity: 5 PCS

Packing weight: 16.6 KG

Power Voltage

Voltage: AC100-240V, 50/60Hz

Power supply: 12V8A

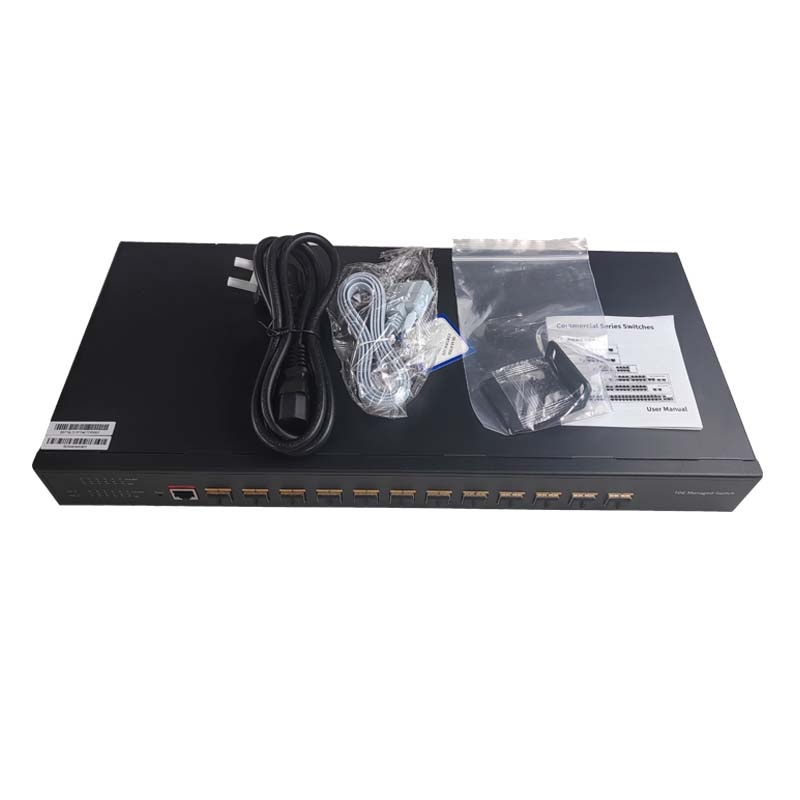

Package List

Switch: 1 Set, Instruction manual: 1 PC, Certificate: 1 PC, Power cord: 1 PC

Serial cable: 1 PC, Rack ear: 1 Pair
