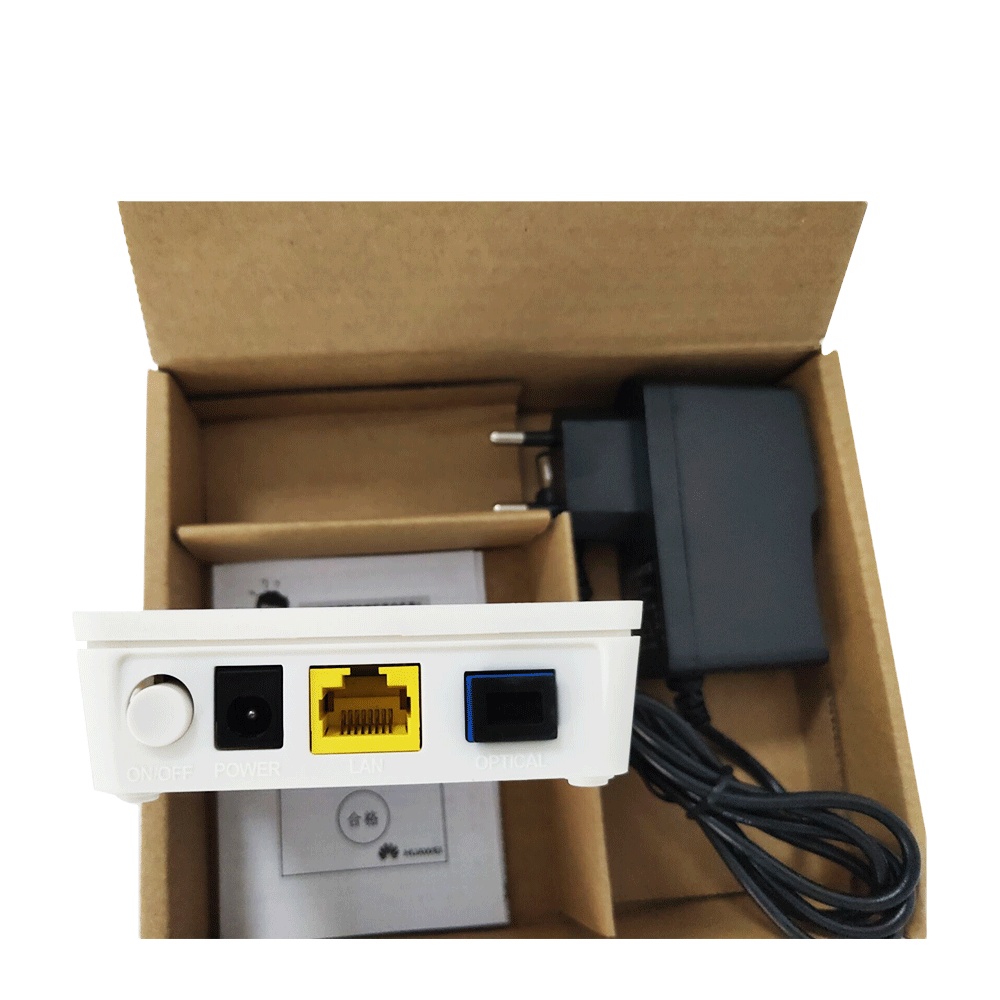

HG8310M XPON ONU

1. Overview

HG8310M FTTH optical network terminal (ONT) is a indoor optical network terminal in Huawei FTTx solution. By using GPON
technology, ultra-broadband access is provided for home and SOHO users. The home gateway then can be connected to a PC,
Mobile Terminal, STB, or Video phone to provide high-speed data, video services.
This model supports one GE Ethernet interface and effectively guarantees data and HD video service experience through high-performance
forwarding capability and also this provides customers with all-optical access solution and future-oriented service support capabilities.

2. Functional Feature

*Conform to IEEE802.3ah standard
*Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
*Support frame filtering and suppression
*Support standard 802.1Q Vlan function, support VLAN conversion
*Support 4094 VLANs (802.1Q)
*Support Dynamic Bandwidth Allocation (DBA) function
*Single ONU supports up to 1LLID.
*Support IGMP Snooping
*Support Ethernet port ratelimit loop detection
*Support power failure alarm
*Support lightning protection for power supply and lightning protection for service port
* Active/Passive rogue ONT detection and isolation
* PPPoE/DHCP simulation testing
* Ethernet port rate limitation
* 1p priority
* SP/WRR/SP+WRR
* Broadcast packet rate limitation
* Flow mapping based on the VLAN ID,port ID, or/and 802.1p
* Indicator power saving
* Power consumption reduction of idle components in power-saving state
* COCv4
* MAC address filtering
* OMCI/Web UI
* Dual-system software backup and rollback
* 1ag Ethernet OAM
* Optical link measurement and diagnosis
* Loopback check Multicast
* IGMP v2/v3 snooping
* MLD v1/v2 snooping
