F670L FTTH GPON  4GE+1pots+1USB+WIFI 2.4G &5G Wifi ONT GPON

1. Overview

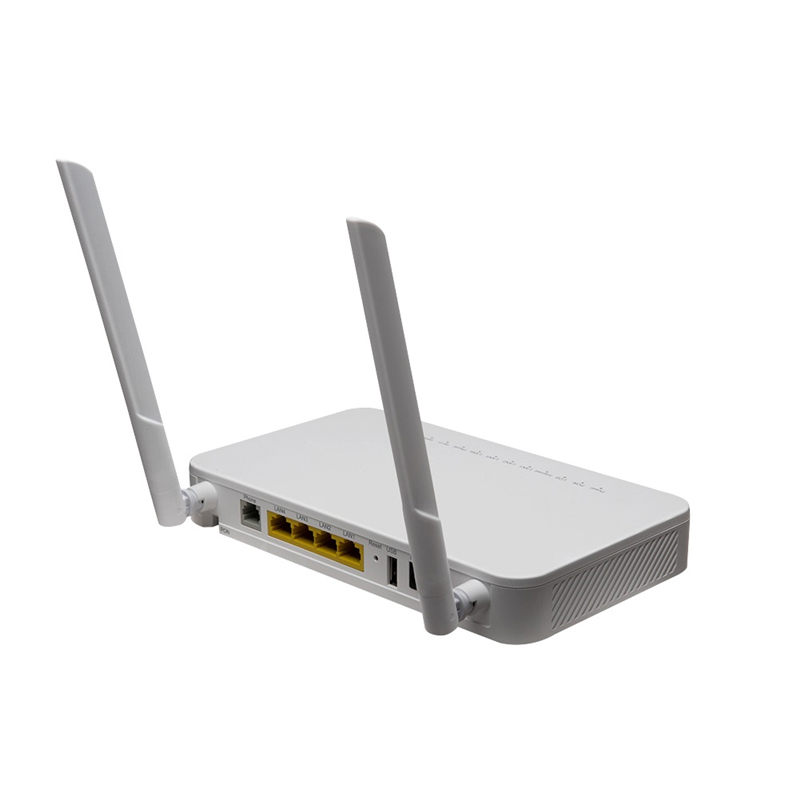

The ZXHN F670 is an ITU-T G.984 and ITU-T G.988 compliant optical network terminal (ONT) that is designed for high-end home users.
It is well suited to fiber to the home (FTTH) scenarios and supports desktop mounting.At the network side, it supports 2.488 Gbps downlink and
1.244 Gbps uplink. At the user side, it provides four GE ports, two POTS ports, one USB 2.0 port, and Wi-Fi 802.11n 2x2 2.4GHz & 802.11ac 3x3
5GHz concurrent. By using the ZXHN F670, the home users can access data, video and voice services, and enjoy high-speed internet connection.

2. Functional Feature

* Flexible Management Mode
The F670L can be managed by two ways: one is complete OMCI complying with ITU-T G.988, the other is OMCI plus TR-069 complying with
BBF TR-142 framework. Service providers can choose their preferred ways to manage the device.

* Quality of Service (QoS)
The QoS features of the F670L enable service providers to design QoS policies and prioritize mission-critical services such as IPTV and
VoIP freely based on their individual service plans. So, service providers could deliver real multi-play applications to users
and increase network efficiency.

* Highly Reliable Feature
Dual-Band concurrent Wi-Fi mode so that its Wi-Fi speed can reach up to 1.2Gbps, consisting of 300Mbps (802.11n 2×2 @ 2.4GHz) and
866Mbps (802.11ac 2×2 @5GHz). The dual image ensures uninterrupted services during software download or upgrade, thereby enhancing
software reliability. The highly reliable lightning protection design provides lightning and surge protection of 4 kV for the adapter, 1.5 kV for the
POTS port, and 1.5 kV for the Ethernet ports.

Hardware Specification
