HG8546M XPON ONU

Product No.：HG8546M
Online Inquiry

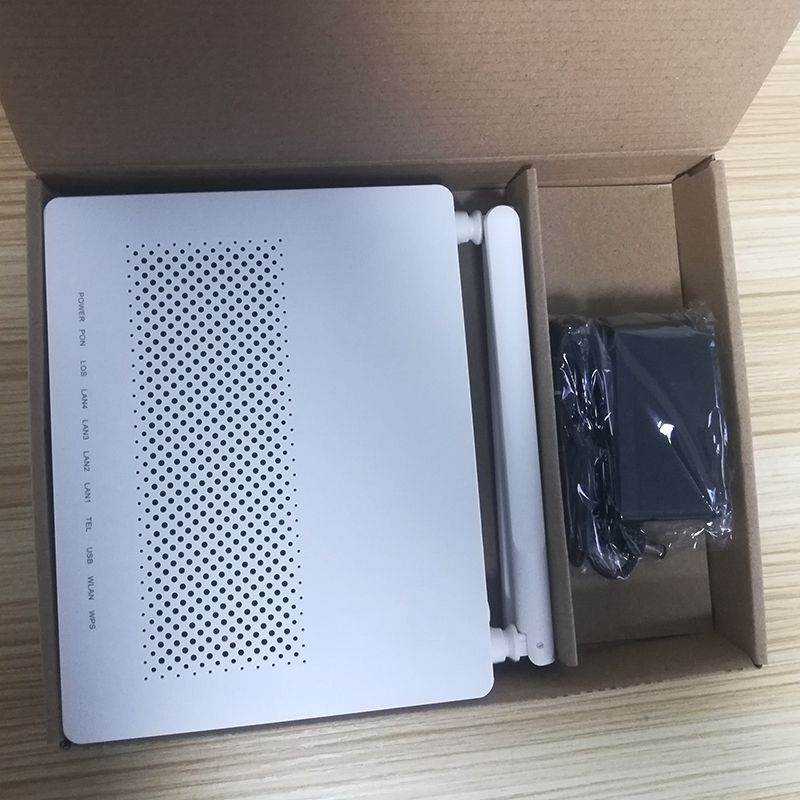

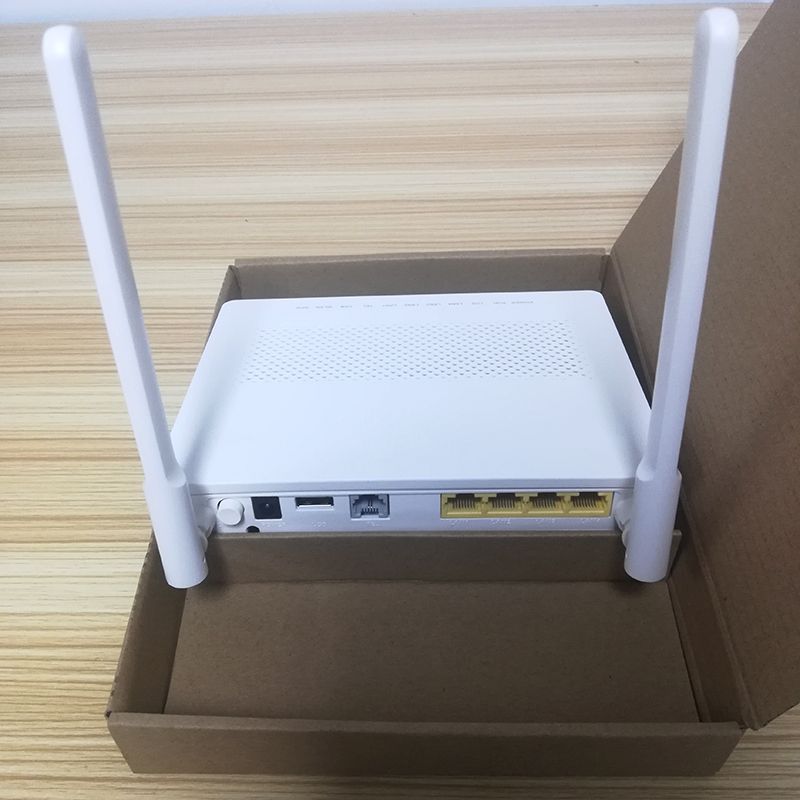

HG8546M XPON ONU

1. Overview

XPON ONT HG8546M optical network terminal (ONT) is a indoor optical network terminal in FTTx solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. The HG8546M provides three FE Ethernet ports, one GE Ethernet port, one POTS port and one USB.

2. Functional Feature

n Support EPON/GPON mode and switch mode automatically

n Support Route mode for PPPoE/IPoE/Static IP and Bridge mode

n Support IPv4 and IPv6 Dual mode

n Support 2.4G WIFI and 2*2 MIMO

n Support SIP Proctol for Voip Service

n Support LAN IP and DHCP Server configuration

n Support Port Mapping and Loop-Detect

n Support Firewall function and ACL function

n Support IGMP Snooping/Proxy multicast feature

n Support TR069 remote configuration and maintenance

n Specialized design for system breakdown prevention to maintain stable system

Hardware Specification

Technical item	Details
PON Interface	1 GPON BOB （Bosa on Board）
	Receiving sensitivity: ≤-28dBm
	Transmitting optical power: +1~+4dBm
	Transmission distance: 20KM
Wavelength	TX: 1310nm, RX: 1490nm
Optical Interface	SC/UPC Connector
Design Scheme	BOB(i7525BN)
Chip Spec	CPU 950MHz,DDR2 128MB
Flash	SPI NAND Flash 128MB
LAN Interface	1 x 10/100/1000Mbps(GE) and 3 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless	Compliant with IEEE802.11b/g/n
	Operating frequency: 2.400-2.4835GHz
	support MIMO, rate up to 300Mbps
	2T2R,2 external antenna 5dBi
	Support: Multiple SSID
	Channel: Auto
	Modulation type: DSSS, CCK and OFDM
	Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
POTS interface	1 FXS, RJ11 connector
	Support: G.711/G.723/G.726/G.729 codec
	Support: T.30/T.38/G.711 Fax mode, DTMF Relay
	Line testing according to GR-909
LED	10 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、FXS
Push-Button	3,For Function of Reset, WLAN, WPS
Operating Condition	Temperature: 0℃~+50℃
Operating Condition	Humidity: 10%～90%（non-condensing）
Storing Condition	Temperature: -30℃~+60℃
Storing Condition	Humidity: 10%~90%（non-condensing）
Power Supply	DC 12V/1A
Power Consumption	≤6W
Dimension	180mm×107mm×28mm（L×W×H）
