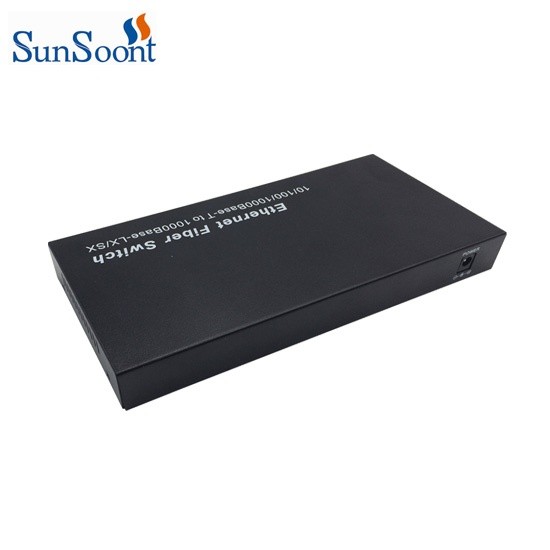

2F8ET-1X9 is an Ethernet Fiber Switch which is specially designed for network monitoring. It has eight 10/100/1000Mbps Ethernet ports and two 1.25Gbps fiber ports. It adopts Realtek chips to ensure low power consumption and high stability. It extends the transmission distance of a network from 550m to 120km via fiber cables. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance. Its excellent performance protects the communication equipment from lightning, surge and EMI in bad weather.


Product Feature:

Ø Support the switch between 10/100/1000Base-T and 1000Base-SX/LX

Ø 2*1.25Gbps full-duplex fiber ports and 8*1000M Ethernet ports with auto-negotiation function

Ø Support 1000M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation function

Ø Each port has the complete LED Indicator light

Ø Support SFP modules

Ø Support IEEE802.1d Spanning Tree

Ø Support high performance QoS function on each port,support broadcasting storm control

Ø Support 5-16V voltage input

Ø Internal 4K MAC Address Entities

Ø Support 9216 bytes Jumbo packet

Ø Support IEEE 802.3x flow control and back pressure control

Ø Require no configuration and will instantly operate as soon as you power it up

Ø Low power consumption chip with heat sink built in to ensure longtime efficient operation.
