Products >> Fiber Optical Equipments >> Fiber Optic Switch

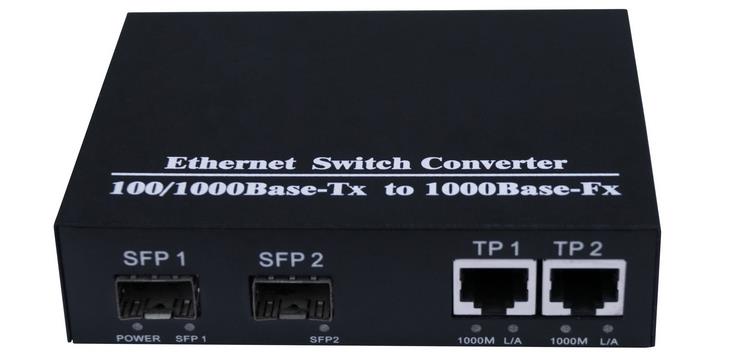

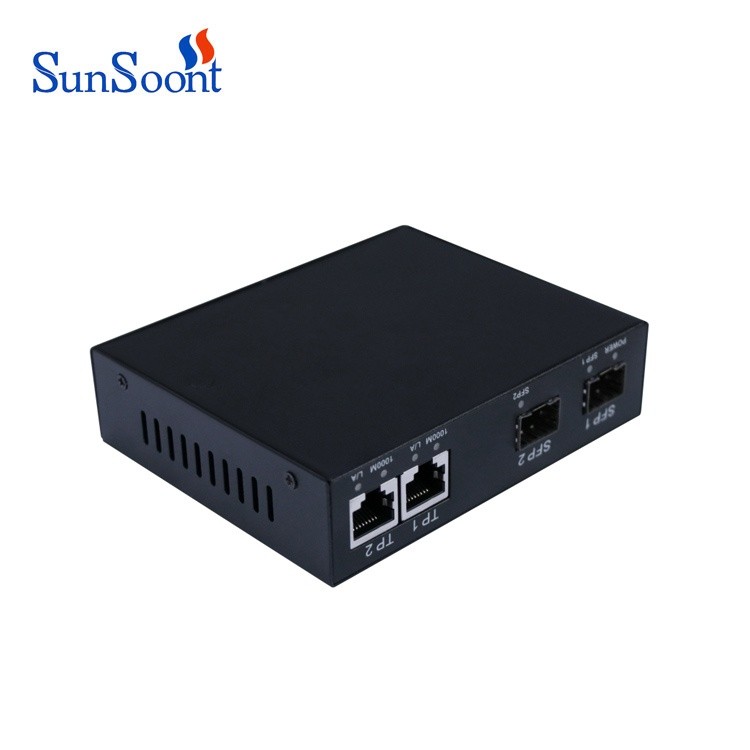

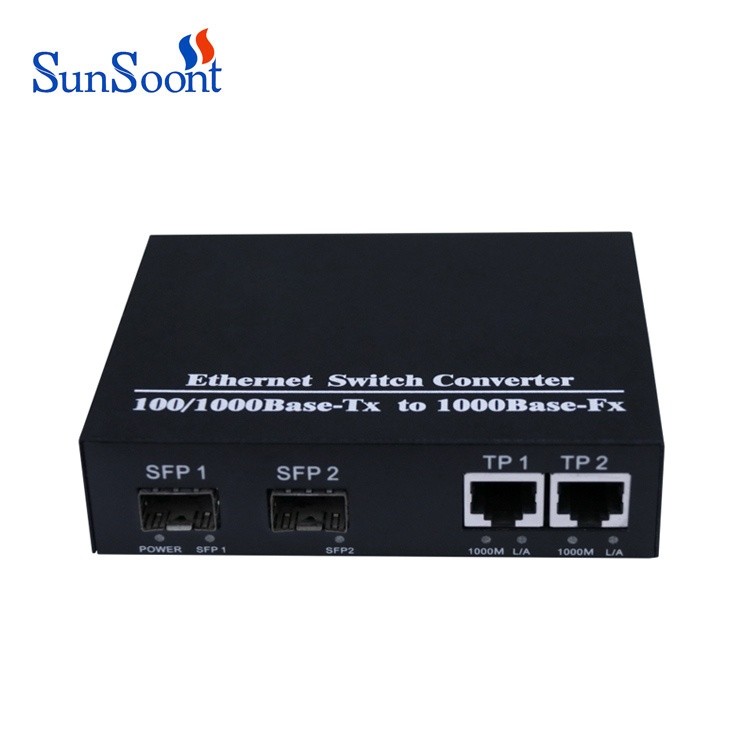

Full Gigabit 2+2 fiber Optic Switch

Product No.：SST-2F2ET-SFP
Online Inquiry

SunSoont SST-2F2ET-SFP is a 10/100/1000Mbps adaptive gigabit Ethernet Fiber Switch. It has two 10/100/1000Mbps Ethernetports and two 1.25Gbps fiber ports. It extends the transmission distance of a network from 100m to120km via copper cables. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.

Product Feature

Ø Support the switch between 10/100/1000Base-TX and 1000Base-SX/LX

Ø 2*1.25Gbps full-duplex fiber ports and 2*1000M Ethernet ports with auto-negotiation function

Ø Support MDI/MDIX and half/full-duplex with auto-negotiation function

Ø Each port has the complete LED Indicator light

Ø Support single mode single fiber,single mode dual fiber,multi-mode dual fiber and SFP slot

Ø Support IEEE802.1d Spanning Tree

Ø Support IEEE802.1q and VLAN division

Ø Support high performance QoS function on each port

Ø Support broadcast storm control

Ø Support 5-16V voltage input

Ø Support 10K Jumbo Packet

Ø Support 8K MAC table

Ø Support IEEE802.3x flow control and back pressure control

Ø Require no configuration and will instantly operate as soon as you power it up

Ø Low power consumption chip with heat sink built in to ensure longtime efficient operation.

Specifications:

Model	SST-2F2ET-SFP
Product	Full Gigabit 2+2 fiber Optic Switch
Fixed Port	210/100/1000Base--TX RJ45 port (Data) 21000M Integrated SFP(optional 1310/1550)
Network Protocol	IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X
Port Specification	100/1000BaseT(X) Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	2.5Gbps
Packet Forwarding	12.96Mpps
MAC Address	2K
Buffer	2.5M
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-100KM SFP
Watt	≤10W;
LED Indicator	POWER:Power LED SFP1/SFP2:(SFP LED) Port :(Green=10/100M LED+Orange=1000M LED)

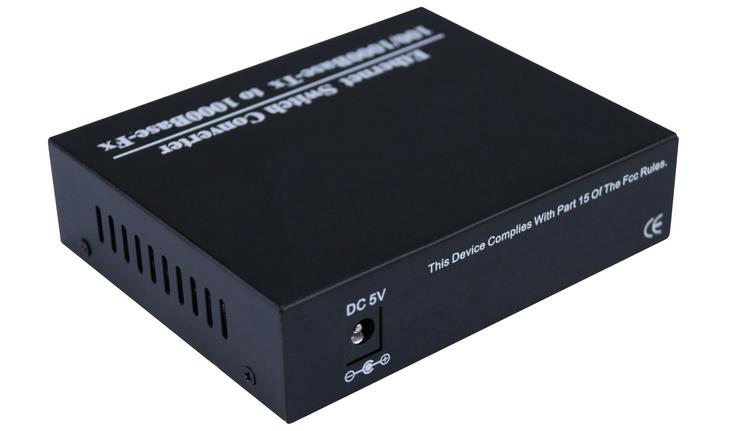

Power	External power DC 5V 2A
Operating Temperature/Humidity	-15~+65°C;5%~90% RH Non coagulation
Storage Temperature/Humidity	-40~+75°C;5%~95% RH Non coagulation
Product size/Packing size(LWH)	113mm92mm28mm 230mm125mm55mm
N.W/G.W(kg)	0.33kg/0.46kg
Installation	Desktop (optional wall hanger+machine hanger parts)
Lightning Protection level	3KV 8/20us; IP30
Certificate	CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS;MA;CNAS
Warranty	Whole device for 3 year
