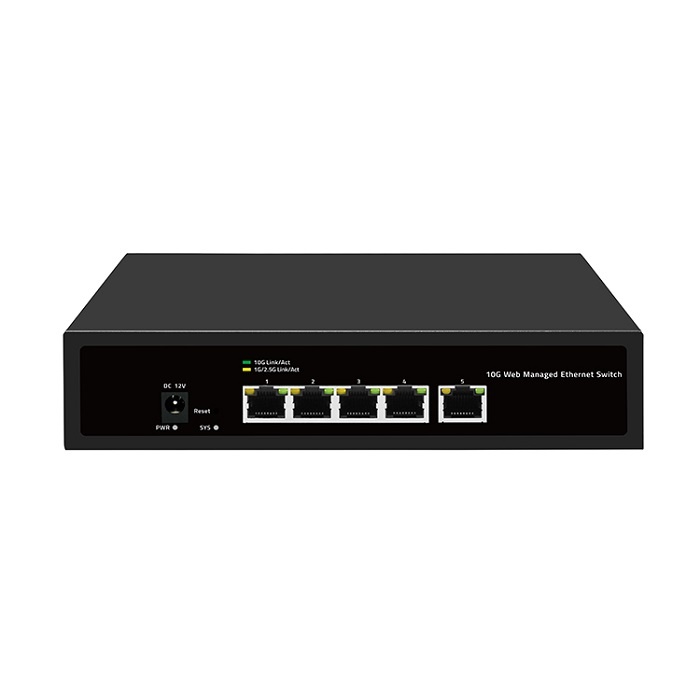

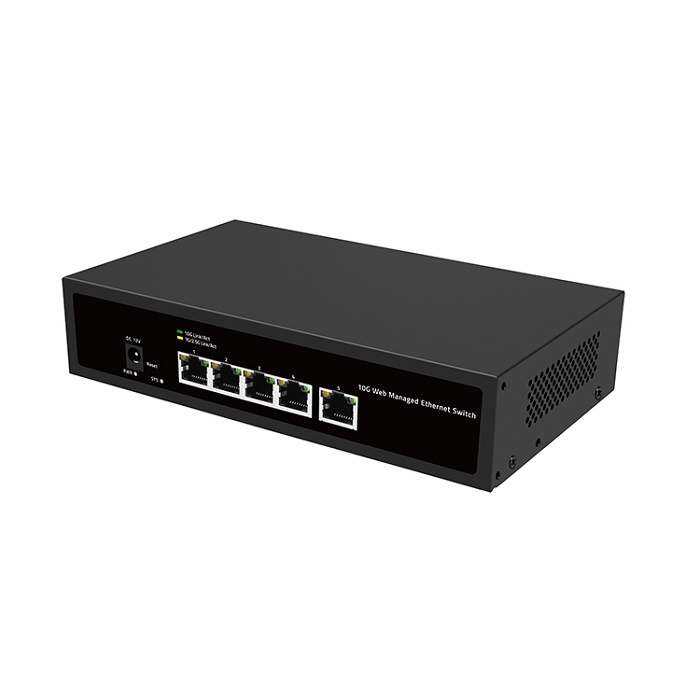

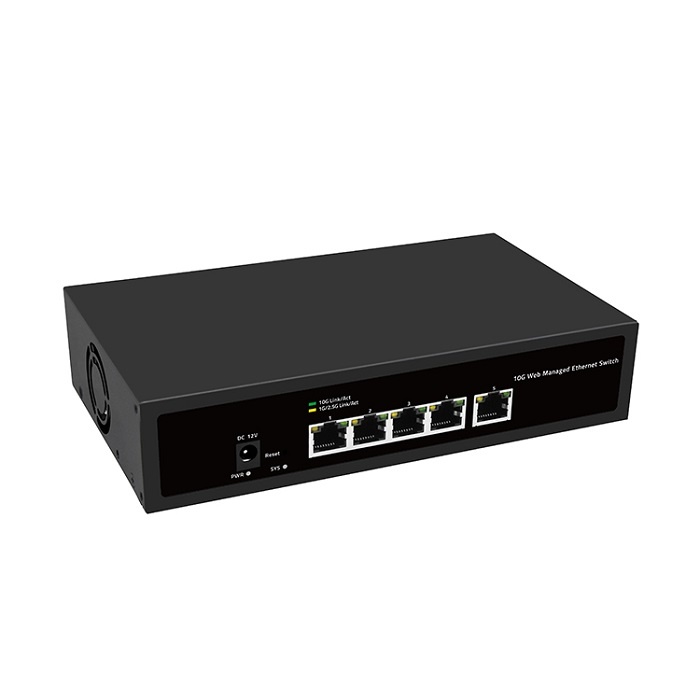

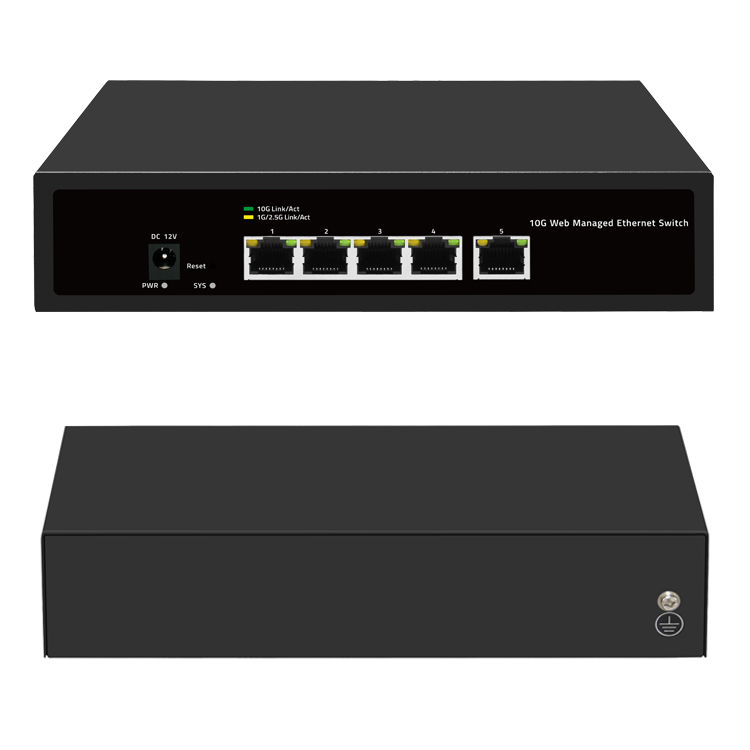

5 Port 10G Web Managed Ethernet Switch

Product No.：SST-MTG5T
Online Inquiry

Features:
5* 10G RJ45 ports
Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, and IEEE 802.3x standards
RJ45 port Supports 100M/1G/2.5G/5G/10G adaptive
Supports automatic port flipping (Auto MDI/MDIX)
The panel indicator LEDs will monitor the working status and assist in fault analysis
Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
Support QoS data priority

Description:

Description	Specification
Model	SST-MTG5T
Interface	5* 10G RJ45 ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control)
Bandwidth	100Gbps
Packet Forwarding Rate	74.4Mpps
Packet Buffer	12Mbit
MAC Address Table	16K
Jumbo Frame	Support
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
Transmission Method	Store and Forward
Power Supply	AC 100-240V 50/60Hz DC 12V 2A
Mainboard Power Consumption	20.89W
Structure Information	Product Dimensions :20011844mm Packaging Dimensions : 24519060mm Product Net Weight:0.67kg Product Gross Weight:0.9kg
