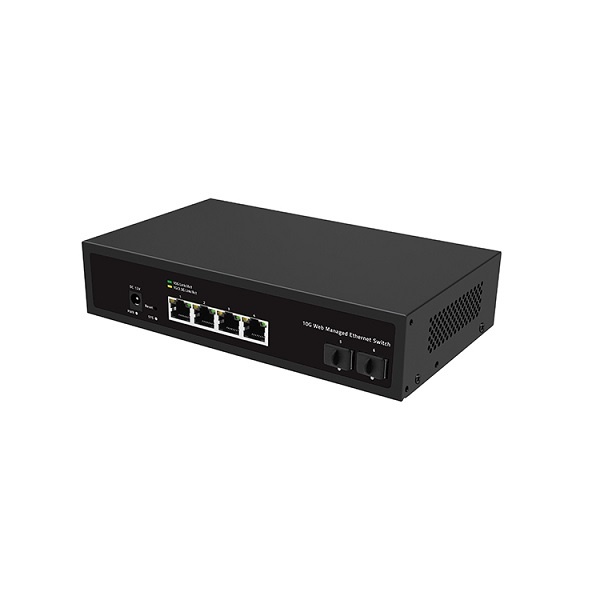

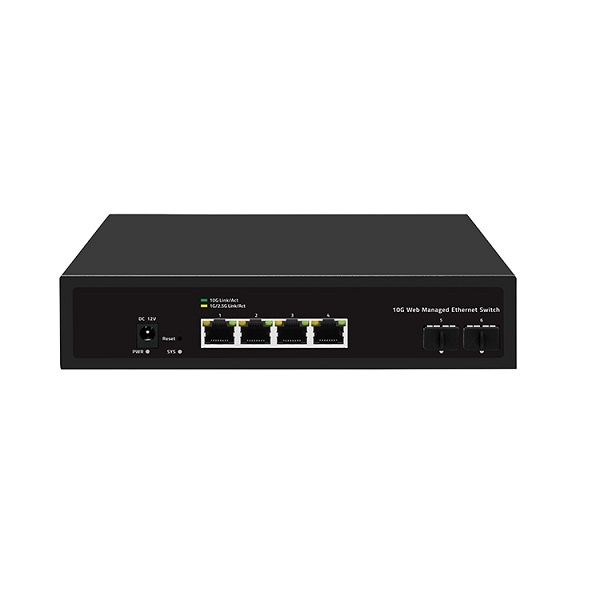

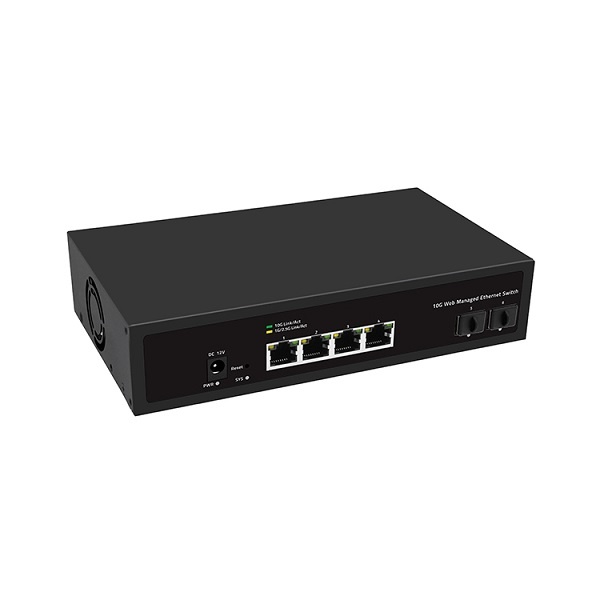

6 Port 10G Web Managed Ethernet Switch

Product Highlights

4* 10G RJ45 ports+2* 10G SFP+ ports

Complies with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, and

IEEE 802.3x standards

RJ45 port supports 100M/1G/2.5G/5G/10G adaptive

Supports automatic port flipping (Auto MDI/MDIX)

The panel indicator LEDs will monitor the working status and assist in fault analysis

Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex

Support QoS data priority

Description	Specification
Model	SST-MTG4T2XS
Interface	4* 10G RJ45 ports 2* 10G SFP+ ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control)
Bandwidth	120Gbps
Packet Forwarding Rate	89.28Mpps
Packet Buffer	12Mbit
MAC Address Table	16K
Jumbo Frame	VLAN range 1-4094, maximum active VLAN is 4K
VLAN	support
Transmission Method	Store and Forward
Power Supply	AC 100-240V 50/60Hz DC 12V 2.5A
Mainboard Power Consumption	24.3W
Structure Information	Product Dimensions :20011844mm Packaging Dimensions : 24519060mm Product Net Weight:0.66kgProduct Gross Weight:0.93k

Package Information	Carton Dimensions :520320400mm Packing Quantity: 20PCS Packing Weight: 19.6kg
Package Contents	Switch 1pcs, ac adapter 1pcs, manual 1pcs,certificate of qualification 1pcs
Fan Quantity	1
Installation	Desktop
Surge Protection	Port Surge: Common mode 4KV,differential mode 2KV;(Class A) Electrostatic ESD: Air 8KV(Class B), Contact 6KV (Class A)
Operating Temperature	0~40°C
Storage Temperature	-40 °C to 70 °C
Operation Humidity	10%~90%，non condensing
Storage Humidity	5%~95%，non condensing
PWR	On: Powered on Off: Powered off
SYS	On: The system is normal Flashing: System startup in progress
1-4	Green Led On: 10G Link normal Yellow Led On: 100M/1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting
5-6	Green Led On: 10G Link normal Yellow Led On: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting
RESET	Long press for 6 seconds to restore factory settings
