Sunsoont Waterproof IP66 10/100Mbps 1 to 2 PoE Extender with IEEE802.3af/at 48V Outdoor for POE Switch Camera

Features

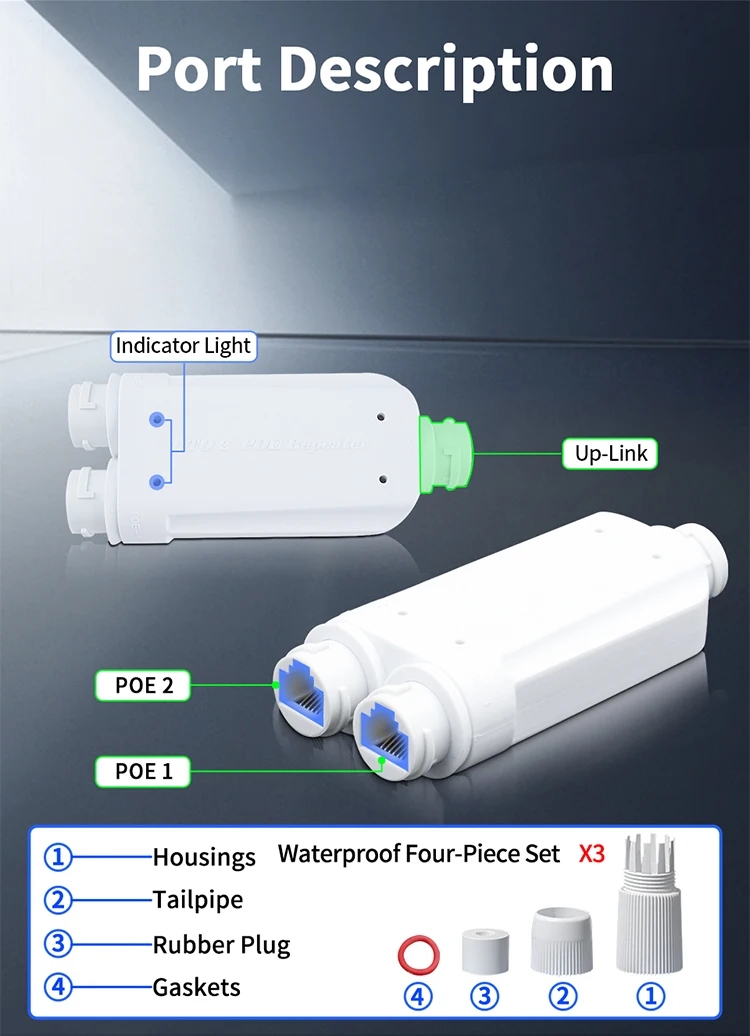

* 2*10/100mbps POE port to output,1*10/100mbps port to input

* 100m Distance

* Support IEEE802.3AF/AT

* POE In:44V-57V/30W;

* POE Output (1-2) :44-57V /25W

* All port supported by MDI/MDIX auto flip and self negotiation

* Supply 4 10/100/1000Mpbs adaptive high speed forwarding data packet non-lost port. ²

Each port max. power supply reached 8W.

Technical Parameters：

Product	POE Extender
Model	SST-LDS0300
POE Port	IEEE802.3AF/AT Standard
Output Power	15W/Per port
Power input Pin	1/2+、3/6- 、4/5+、7/8-
Power output pin	1/2+、3/6-
Whole Power	≤25W
POE Protocol	IEEE 802.3af/IEEE 802.3at
Power Distance	≤100m
Network Standard	IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
Data Distance	PoE Out 1 port ,10/100mbps ≤100meters
	PoE Out 2 port,10mbps ≤250m
Forwarding Rate	10BASE-tx:14880pps/port 100BASE-tx：14800pps/port
MAC Address	MAC address table 1K
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Working Environment	Working temperature：-10°-- 55°C
Weight	0.15kg
Size	97mm*42mm*19.4mm(L*W*H)
