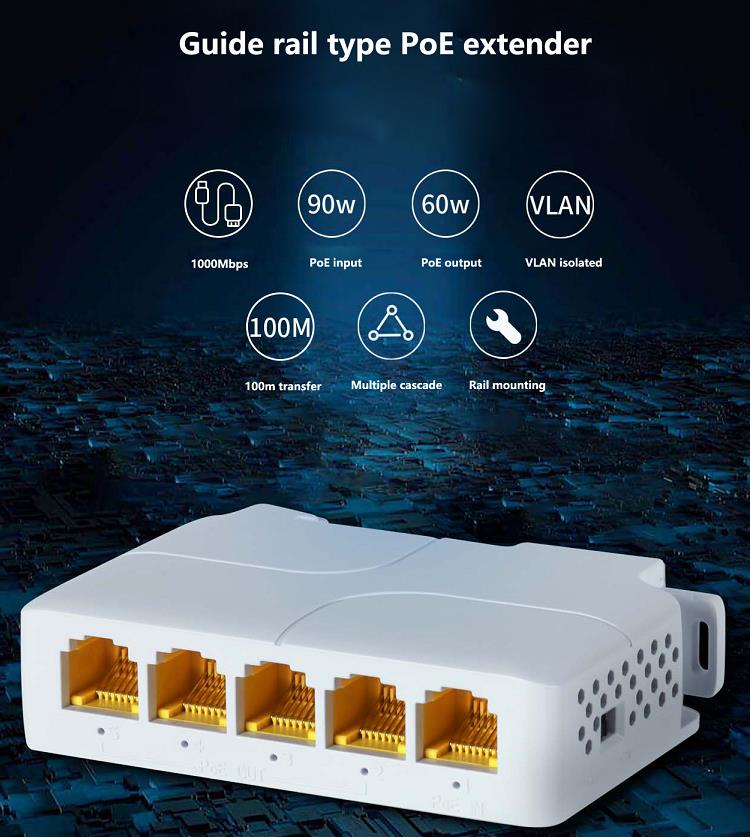

1000Mbps 90w 5 ports POE extender 3 POE out ports

Feature

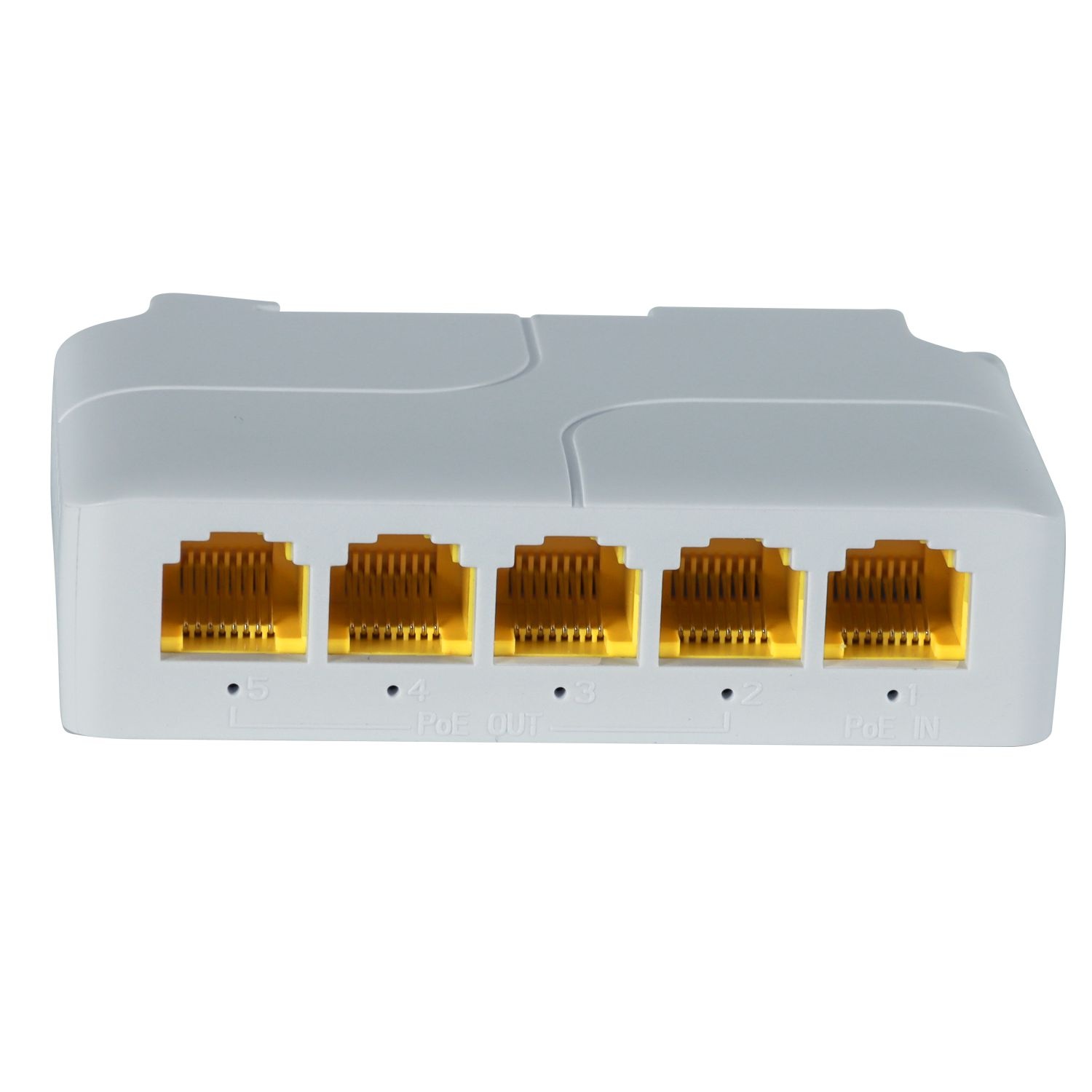

* 4*10/100/1000mbps POE port to output,1*10/100/1000mbps port to input

* 100m Distance

* Support IEEE802.3AF/AT

* POE In:44V-57V/90W;

* POE Output (1-3) :44-57V /25W

* All port supported by MDI/MDIX auto flip and self negotiation

* Supply 4 10/100/1000Mpbs adaptive high speed forwarding data

packet non-lost port. ² Each port max. power supply reached 8W.

Specification

Product	POE Extender
Model	SST-ZPX14G
POE Port	IEEE802.3AF/AT Standard
Output Power	8W/Per port
Power input Pin	1/2+、3/6- 、4/5+、7/8-
Power output pin	1/2+、3/6-
Whole Power	≤25W
POE Protocol	IEEE 802.3af/IEEE 802.3at
Power Distance	≤100m
Network Standard	IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
Network Medium	10/100/1000BASE-TX:5 class and above non shielded twisted pair
Data Distance	≤100m
Switch Capability	10Gbps
MAC Address	MAC address table 1K
Port Function	Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode
Working Environment	Working temperature：-10°-- 55°C
Weight	0.055kg

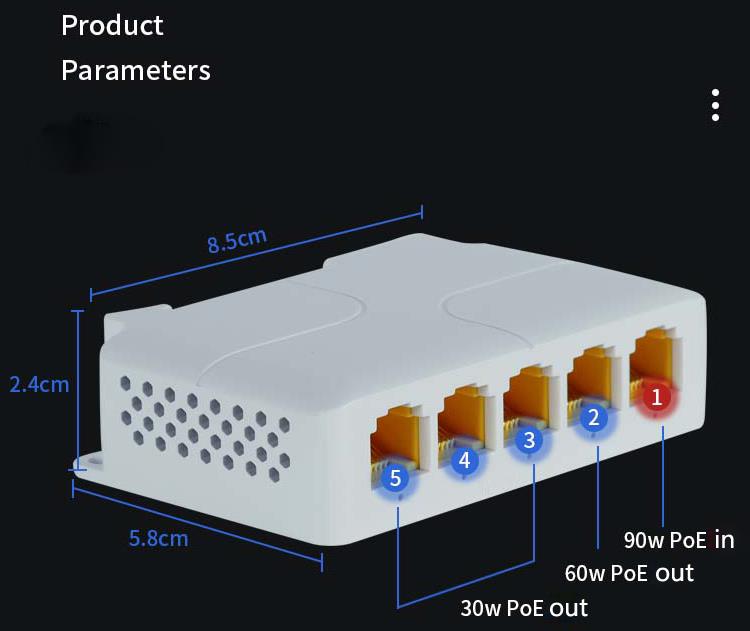

Size	82mm*52mm*23mm(L*W*H)
