I/O Interface

Power

AC  input （100-240V）

Ethernet

16*RJ45 10/100/1000Mbps Ports

Performance

Switching Capacity

32Gbps

Throughput

23.8Mpps

Packet Buffer

4M

MAC Address

8K

Jumbo Frame

4K

Transfer Mode

Store and forward

MTBF

100000 hour

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)、EN61000-4-4 (EFT)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10Base-T : Cat3,4,5 or above UTP(≤100m)

100Base-TX : Cat5  or above UTP(≤100m)

1000Base-TX : Cat5 or aboveUTP(≤100m)

Protection

Security Certificae

CE、FCC、RoHS

Environment

Working Environment

Working Temperature：-10~50°C

Storage Temperature：-40~70°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing

Working Height：Maximum10,000 feet

Storage heigh：Maximum 10,000 feet

Indication

LED Indicators

PWR（Power indicator）、Link（Network Link）、LOOP（Loop alarm）、1000M

DIP Switch

VLAN：Port Isolation, 1-14 ports are isolated each other, all communicate with uplink port 15/16;

Default：Default mode, Support loop alarm;

Extend：Monitor Mode, 1-14 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode,  port 15 and port 16 as uplink port；

Mechanical

Structure Size

Product Size：270*180*45mm

Package Size：312*262*84mm

Product Net-Weight：1.0kg

Product Gross-Weight：1.5kg

Packing Info

MEAS：540*435*332mm

Packing Qty：10 unit

Packing weight：16.5KG

Power Voltage

Power Input Voltage ：AC 100-240 V

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair

Ordering Info

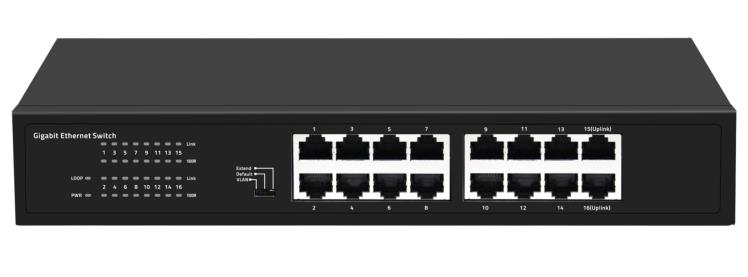

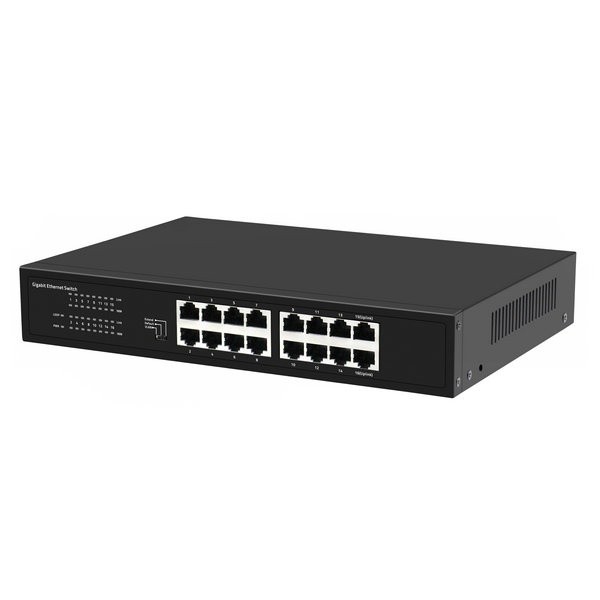

SST-16RJ45-T

16-Port Gigabit Intelligent Ethernet Switch
