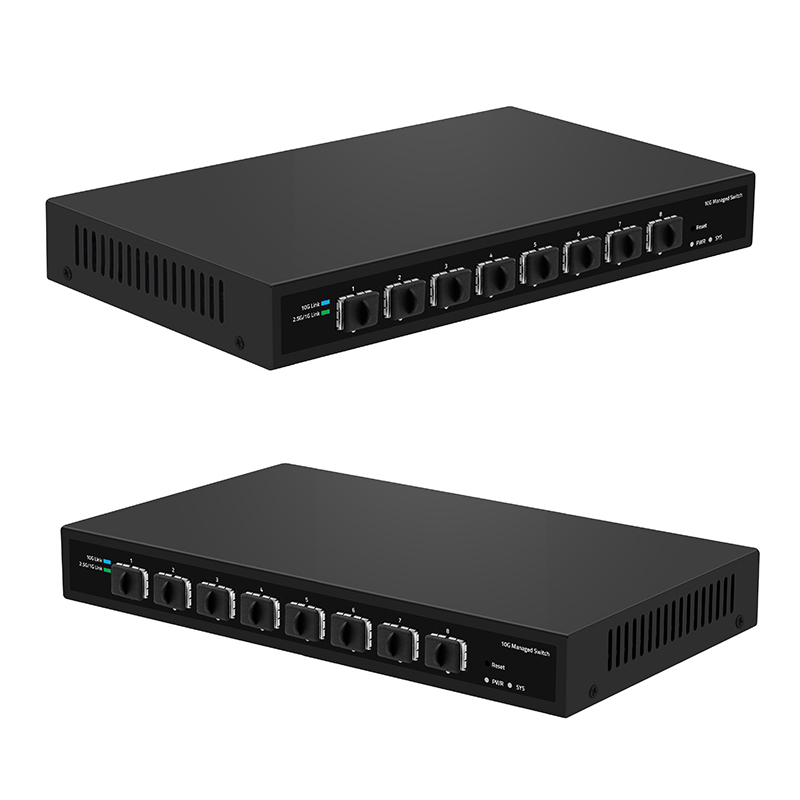

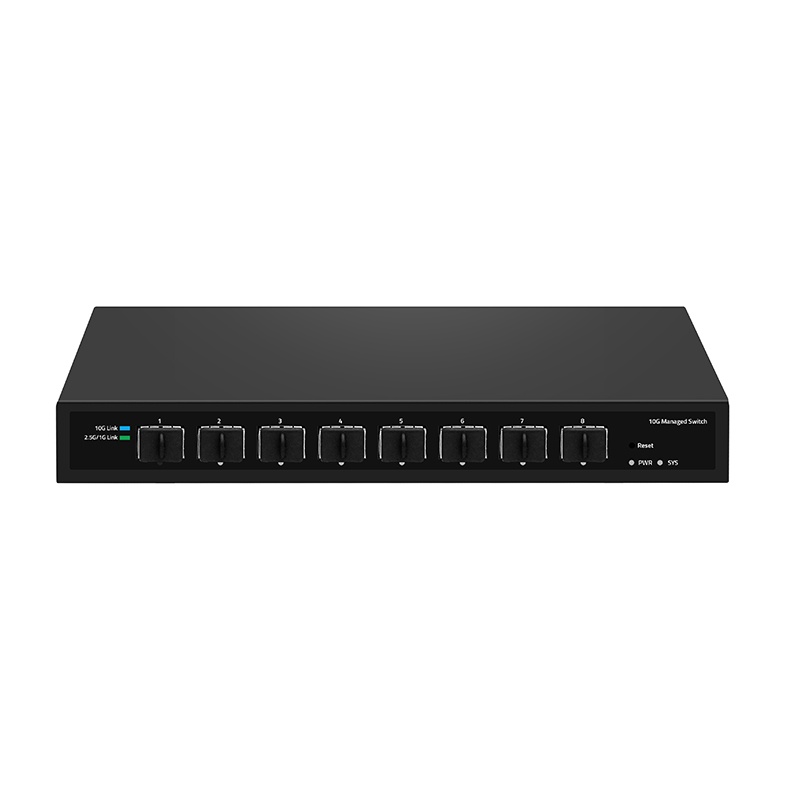

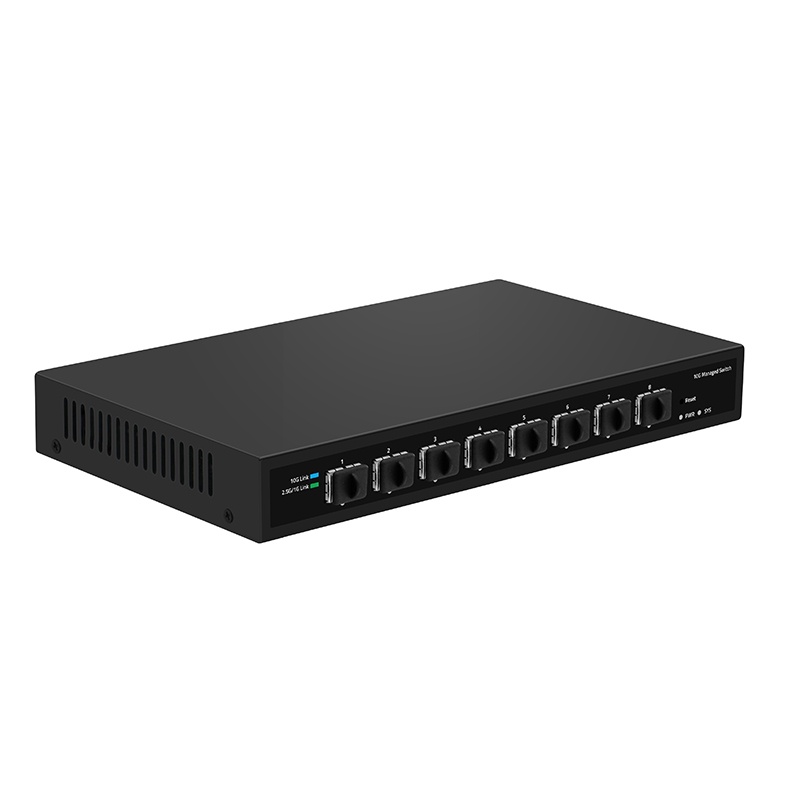

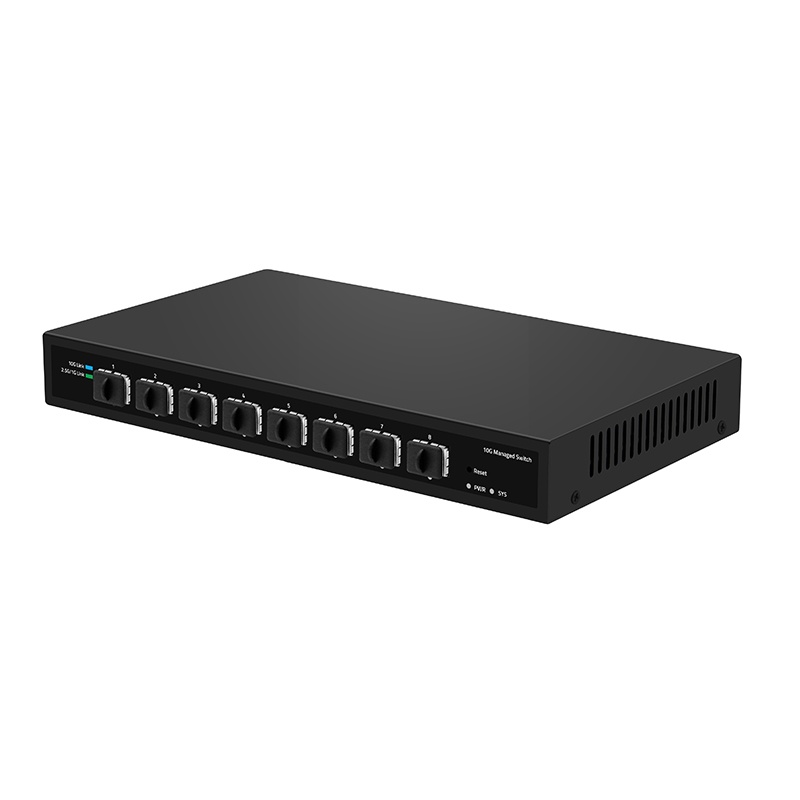

8 port 10G SFP Web Managed Ethernet Switch

8 port 10G SFP Web Managed Ethernet Switch

Product No.：SST-WTG8STG
Online Inquiry

8 port 10G SFP Web Managed Ethernet Switch

8 port 10G SFP Web Managed Ethernet Switch Adopting high-quality and high-speed network chip solutions, with
all 10G SFP+ ports and smoother line speed forwarding, equipped with 8* 10G SFP+ ports, Port default support for
2.5G/10G,By adopting a storage and forwarding mechanism and integrating high-capacity cache internally, it ensures
that all ports can achieve 10 Gigabit non blocking line speed forwarding, adapting to more unexpected situations. Steel
shell design, efficient and stable heat dissipation, all steel shell structure, sturdy and durable, high strength, efficient heat
dissipation, ensuring stable product operation. This switch can be widely used in areas such as security network video
surveillance, hotels, campuses, and network engineering for medium and large enterprises.

Main Feature

1, Supports 8* 10G SFP+ ports;
2, Supports IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3ab，IEEE802.3z;
3, Ethernet port default support for 2.5G/10G self- adaptive;
4, Support port Auto MDI/MDIX;
5, Adopting a storage and forwarding exchange mechanism;
6, All ports support line speed switching;
7, Panel indicator lights monitor working status and help failure analysis;
8, Support QoS data priority;
9, Support web management;

Technical Parameter

I/O Interface

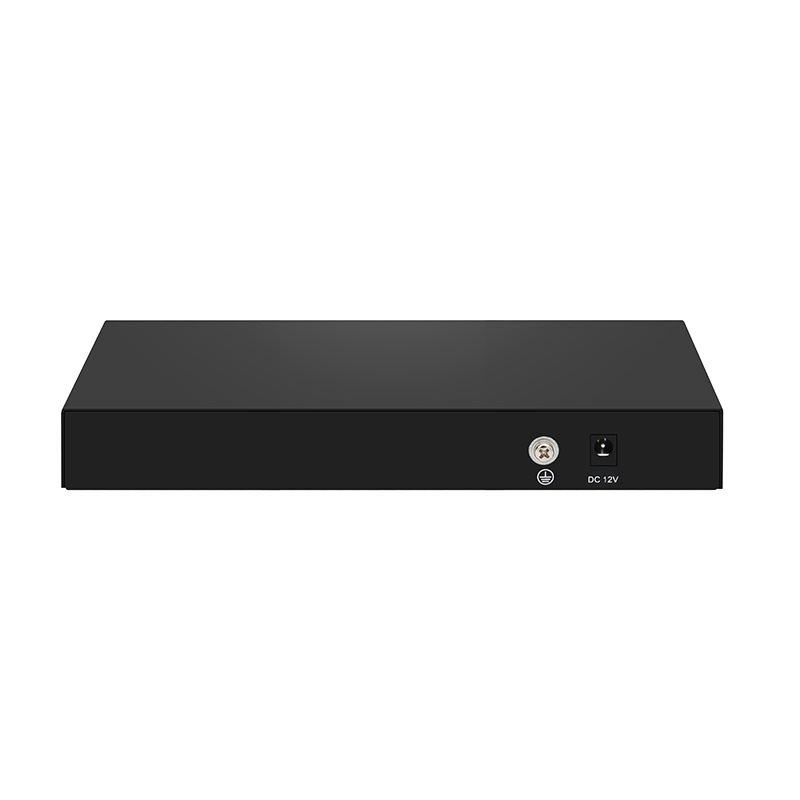

Power	DC 12V
Ethernet	8* 10G SFP+Ports
Performance
Bandwidth	160Gbps
Packet forwarding rate	119.04Mpps
Package cache	12Mbit
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
MAC Address Table	16K
Forwarding mode	Store forward
Standard
Network protocol	IEEE 802.3: Ethernet Media Access Control (MAC) Protocol IEEE 802.3i: 10BASE-T Ethernet IEEE 802.3u: 100BASE-TX Fast Ethernet IEEE 802.3ab: 1000BASE-T Gigabit Ethernet IEEE 802.3z: 1000BASE-X Gigabit Ethernet (Fiber optic) IEEE 802.3x: Flow Control IEEE 802.3az (Efficient and Energy saving Ethernet) IEEE 802.3ae (10 Gigabit Ethernet) IEEE802.3x (Flow Control) IEEE802.3 bz (2.5G/5G Ethernet standard)
Network Medium	1000BASE-SX: 62.5μm MMF(multi mode)(Minimum range: 2m～275m) or 50μm MMF 1000BASE-LX: 62.5μm/50μm MMF(Minimum range: 2m～550m)or 10μm SMF(Minimum range: 2m～5km) 2500BASE-X: G.652D SMF(Single mode)(Minimum range: 2m～500m or 2m～5Km) 10GBASE-SR: OM1/OM2/OM3 or above MMF(Operating range: 2m～300m) 10GBASE-LR: IEC B1.1 and B1.3 SMF(Minimum range: 2m～10km)
Environmental standard
Working environment	Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, non-condensing Storage humidity: 5%~95%, non-condensing
Functional indication
Indicator	PWR(Power Indicator),SYS(System Indicator)
PWR	On: Powered on Off: Powered off
SYS	On: System normal Flashing: System startup
10G (Blue Light）	On: Link connect normal Flashing: Data transmitting Off: Link off
2.5G/1G (Green Light)	On: Link connect normal Flashing: Data transmitting Off: Link off
Reset	Long press for 6 seconds to restore factory settings
Physical Specification
Structure Size	Product Size: 22012628mm Package Size: 25922860mm Product Net-Weight: 0.62KG Product Gross-Weight: 0.86KG
Packing Info	Carton Size: 535320480mm Packing Qty: 20 pcs Packing Weight: 18.2KG
Power Voltage	Power adapter: 12V2A
Power Consumption	Full load power of the whole machine: Maximum 18W
Packing List	Switch 1PCS; Adaptor 1PCS; User Manual 1PCS, Certificate 1PCS

Function

L2 Function
Port	Port Switch Configuration
	Port Description Configuration
	Port Speed Configuration
	Port Duplex Configuration
	Port Flow Control Configuration
	Jumbo
	EEE
Link Aggregation	Support load sharing strategy based on MAC and IP-MAC addresses
	Static and dynamic aggregation groups
	Support LACP
	Max. 8 members per group
Storm Control	Boardcast
	Unknown Multicast
	Unknown Unicast
Port Mirroring	One to one monitor
	Many to one monitor
	Ingress/Egress/Both
	Up to 4 session groups
Port Security	MAC Address Constraints
Port Security	Protect/Restrict/Shutdown
Port Isolation	Support
Port Rate-limit	Support
VLAN	Access/Trunk/Hybrid
	VLAN Tunnel （Q-in-Q Tunnel）
	VLAN range 1-4094, maximum active VLAN is 4K
MAC Address	Static MAC address
MAC Address	MAC Address Filtering
Spanning Tree Protocol	STP/RSTP
	BPDU Filter
	BPDU Guard
	Edge Port
Multicast	IGMP Snooping
	IGMP V1/V2/V3
	Router Port
	Static Multicast
QoS	Traffic classification based, Strict priority and WRR
	Port Priority
	802.1P Priority
	IP DSCP Priority
	Supports up to 8 queues per port
	Priority Remark
Services	Support
Access Protocol	HTTP
Access Protocol	Session timeout
Security	Support
DHCP Snooping	Support
Diagnostics	Support
Ping	Support
Electrical Port Test	Support
Management	Support
Manager Access	HTTP
Manager Access	SNMP
Manager IP	Static
	DHCP Client
	Manager VLAN
	DNS
SNMP	V1/V2C
	Community Name
	Trap host
SNMP MIB	RFC 1213 MIB-II
	RFC 1643 Ethernet MIB
	RFC 2863 Interface MIB
User	Support
Firmware	Firmware Upgarde
Configuration	Upload and download
Save	Support
Restart	Support
Factory Defaults	Support
Standards Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
