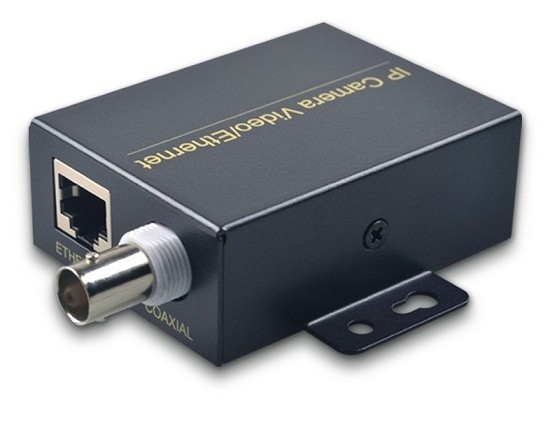

IP Coaxial Extender/Converter can provide 100Mbps network flow with regular video cable or twisted pair. The transmission distance is up to 2KM.
Require no configuration once you power it up, just connecting the video cable to work normally.It has the advantage of long distance transmission,
high-speed communication, supporting multimedia services and flexing networking etc. It is widely applied for upgrading the original analog system to HD system,
building new long-distance transmission system etc. Due to the wires selection diversity, all the original wires in the analog camera can be used as the transmission medium,
no need re-wiring. Thus, just replacing the front camera and using an EOC transmitter device, you can upgrade the analog systems to HD digital network, save time and cost for wiring.

Support IEEE 1901 and HomePlug AV and IEEE802 protocol

Support 10/100Mbps adaptive rate.

Transmission distance is up to 2km with SVY75-5 coaxial cable

Support coaxial cable, twisted pair and telephone line and other transmission media

Support multi mode networking as one to one point or one to multi point.

Support MDI/MDIX auto detection

Each port has the complete LED Indicator light

Auto detect transceiver and forwarder

5-20V input voltage, 2.5W power consumption in full loaded condition

Support desktop, wall mounted and rack mounted installation

Require no configuration and will instantly operate as soon as you power it up.
