Products >> POE accessories >> POE injector

15W POE injector

Product No.：SST-HG15A
Online Inquiry

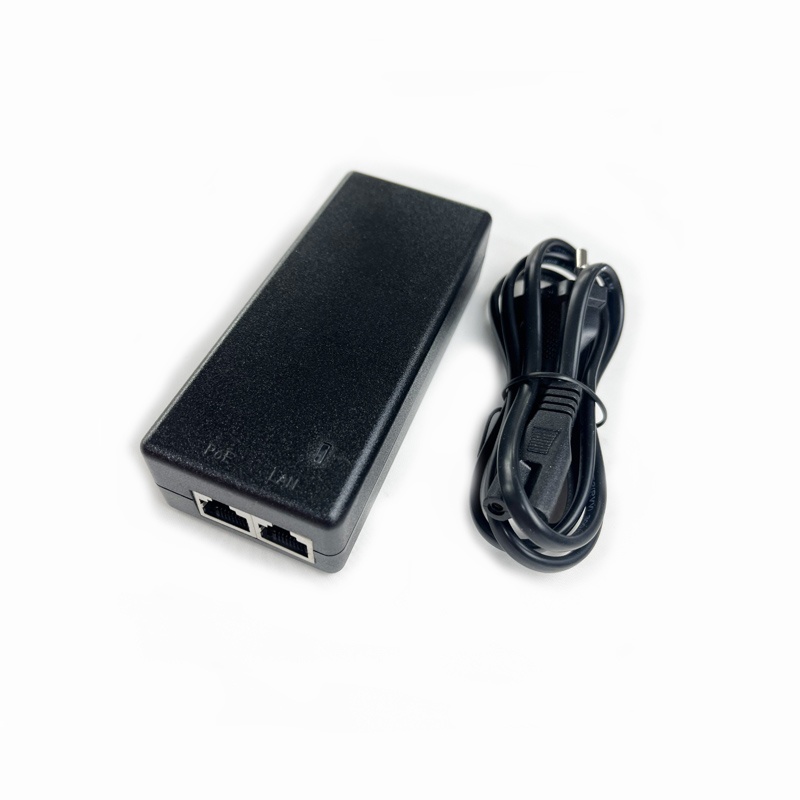

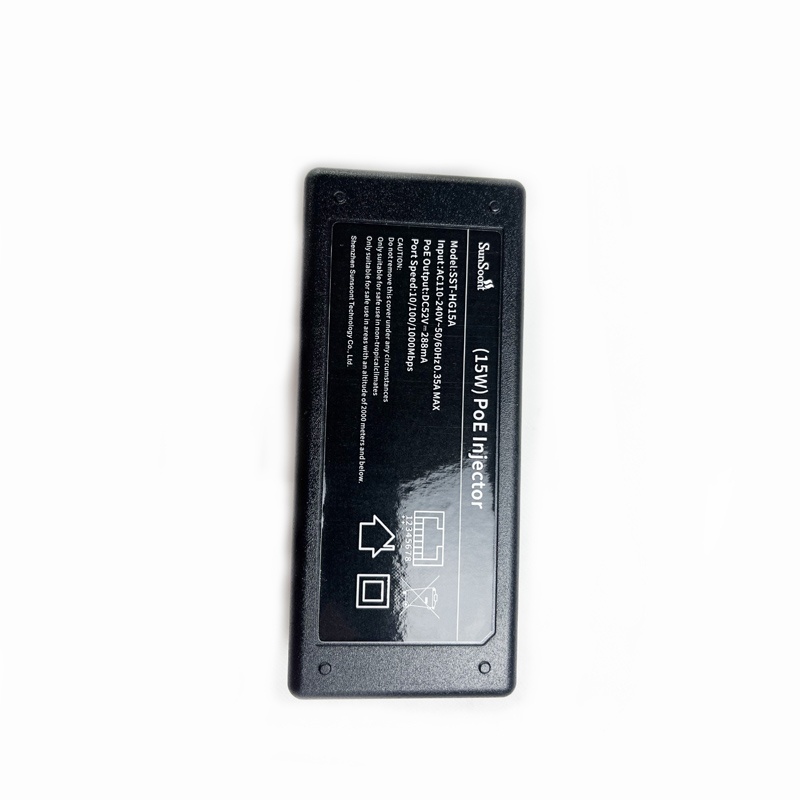

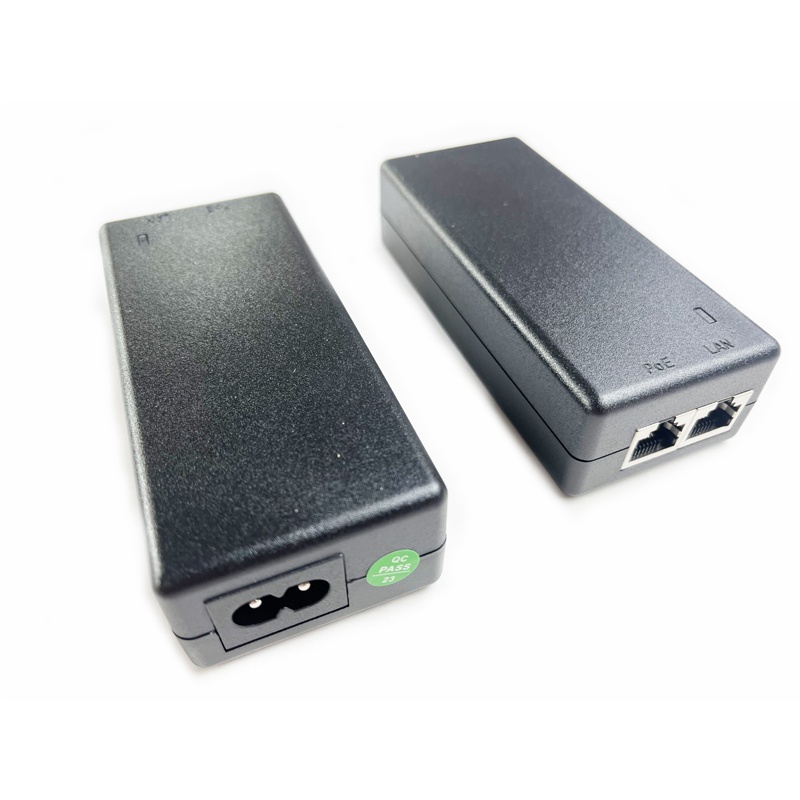

15W active 1000Mbps PoE injector

SST-HG15A is a standard Gigabit Ethernet PoE adapter, which provides 1 Gigabit PoE port and 1 Gigabit uplink

port, supports 1/2+, 3/6- 52V POE power supply mode, and is suitable for the equipment that supports 1/2+, 3/6-

power supply mode at the receiving end. The product is mainly used for POE network power supply, suitable for

security monitoring, wireless coverage, bridge relay and other application scenarios.

Specification

Port	1AC220V power input port 1POE output port 1*LINK network input port
PoE port output power	15.4W
PoE transmission line core	1/2+、3/6-
Whole power	≤15.4W
POE power transmission distance	≤100M
Network Media	10/100/1000BASE-TX: category 5 or above unshielded twisted pair
Network signal distance	≤100M
Forwarding Rate	10BASE-T:14880PPS/port 100BASE-tx：148800pps/port 1000BASE-tx：1488000pps/port
PoE connectivity standard	Standard
PoE port output power	Single port output≤15.4W
PoE output voltage	DC52V±5
PoE transmission line core	1/2+、3/6-
PoE power transmission distance	≤100M
Power supply transmission medium	10/100/1000BASE-TX: category 5 or above unshielded twisted pair
Whole power	MAX:15.4W
