FTTH Stripping Splicing Termination Fiber Optic Tool Kit
- Product No.:SST-Toolkit-N
- Price:FTTH Stripping Splicing Termination Fiber Optic To
The Fiber Optic FTTH tool kit is a simple and convenient integration solution for FTTH fiber-to-the-home quick-connect construction, such as, stripping, fiber cutting, cleaning and testing. It is economical and practical, and is an ideal tool for construction operators.
Optical Power Meter Technical Parameters:
Model |
Opitcal power meter-A |
Optical power meter-B |
Measurement range |
-70~+10 |
-50~+26 |
Type of probe |
InGaAs |
|
Range of wave length |
800~1700 |
|
Uncertainty |
±5% |
|
Standard wave length (nm) |
850,980,1300,1310,1490,1550, 1625nm |
|
Resolution |
Linear indication: 0.1% Logarithmic indication: 0.01dBm |
|
Working temperature (°C) |
-10~+60 |
|
Storage temperature (°C) |
-25~+70 |
|
Auto power-off time (min) |
10min |
|
Continuous working hours |
At least 48 hours |
|
Dimensions (mm) |
190×100×48mm |
|
Power supply |
AA battery |
|
Weight(g) |
400g |

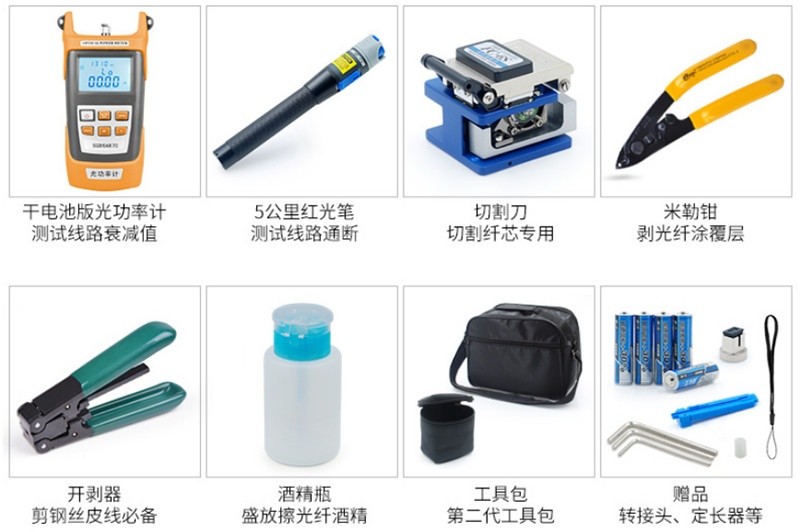

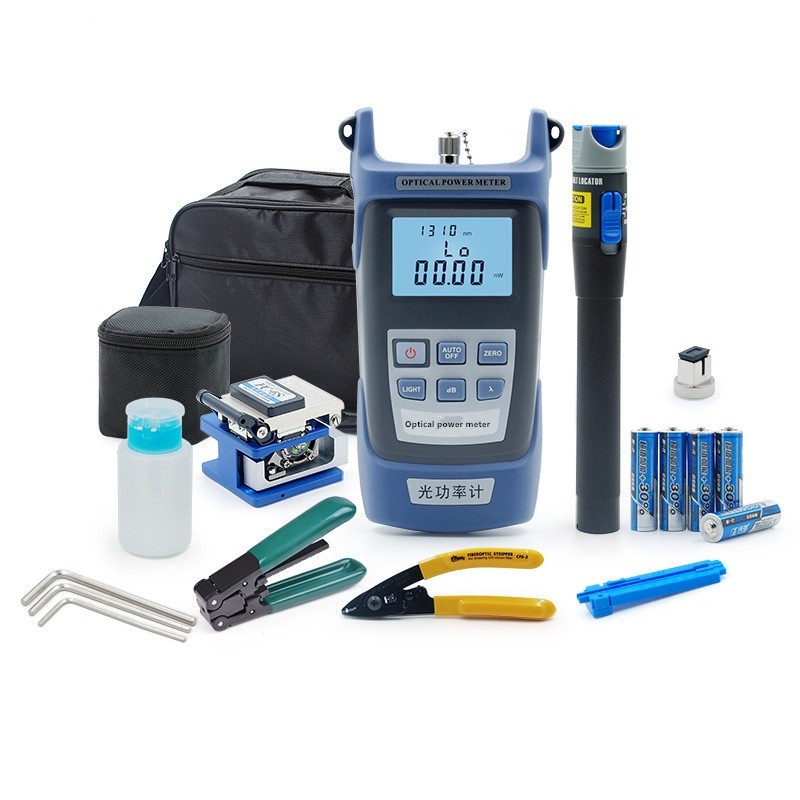

Non-integrated Type FTTH Tool Kit Product List:

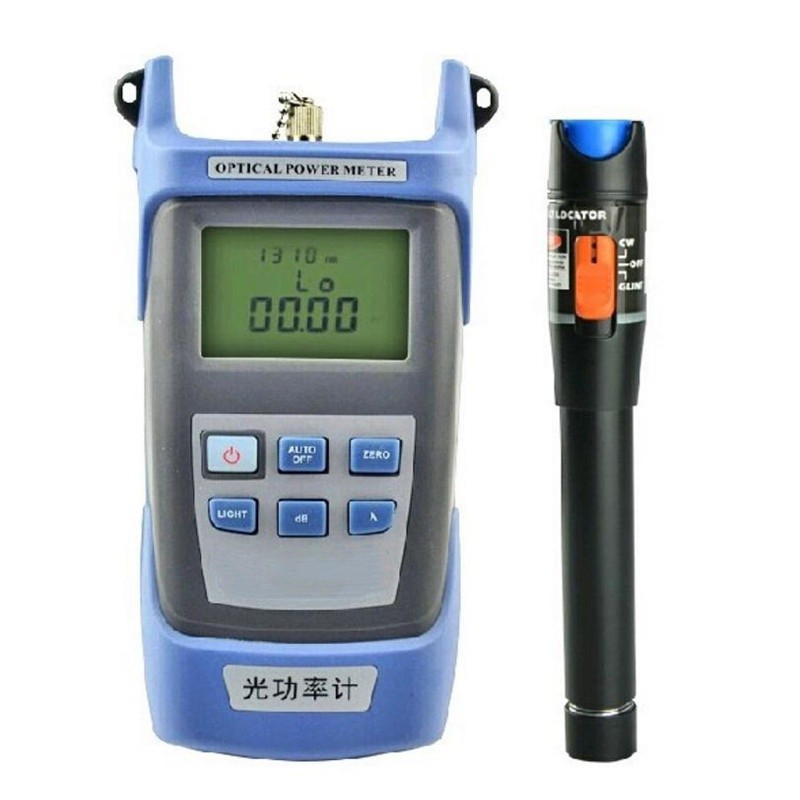

Item 1: Optical power meter
Color Orange or Blue optional,
Default measurement range: -70~+10dBm
Support SC, FC, ST connector,
Support testing for 7 kind of wavelength
Support regular shut down with backlight, automatic shut down

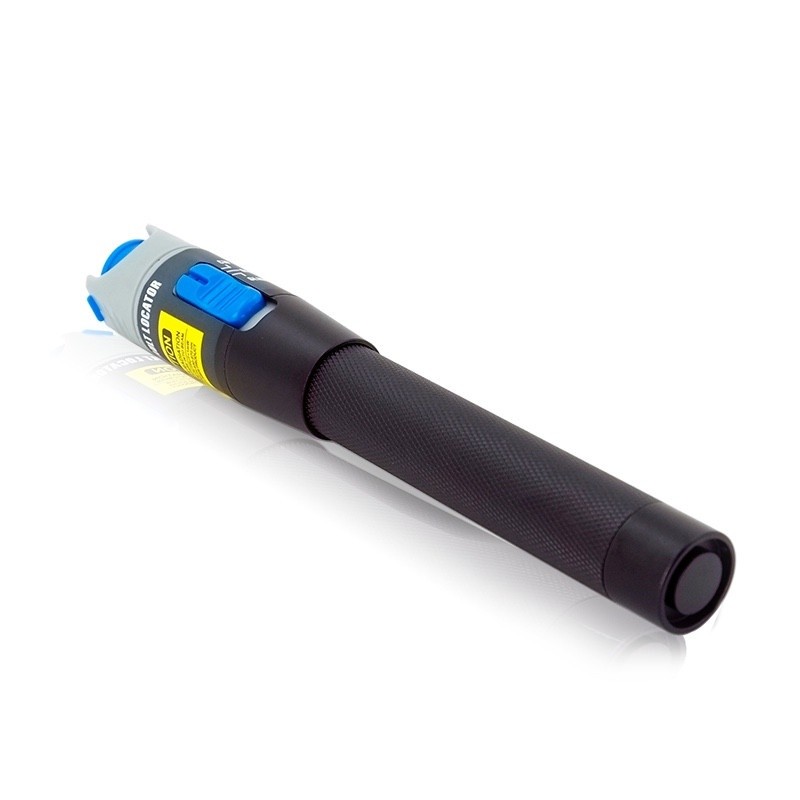

Item 2: Visual Fault locator 5KM
Optical pen/Red laser pointer 5km, other distance 10/20/30km optional
Imported laser head, High thermal conductivity
Aluninum alloy case, good durability
Item 3: FC-6S fiber cleaver
Imported refining tungsten steel blade , Automatic rebound
Precision Blade features 12 blade positions with 3,000 cleavers per position
Item 4: Miller Clamp
125um fiber coating layer for peeling
Top 1.98mm open hole stripping out shield
Item 5: Wire Stripper
Used for 3.1 x 2.0 mm rubber-insulated wire
Belt scale, fatigue resistance, pressure resistance
Item 6: Alcohol Bump Bottle
Offering empty plastic bottle
Item 7: Carry Bag
Portable bag/Toolkit, is made of high-density oxford fabric
Unbreakable, Wear-resistant, Waterproof
Item 8: Others
Other accessories, "L" Tool, FC Adapter, etc
