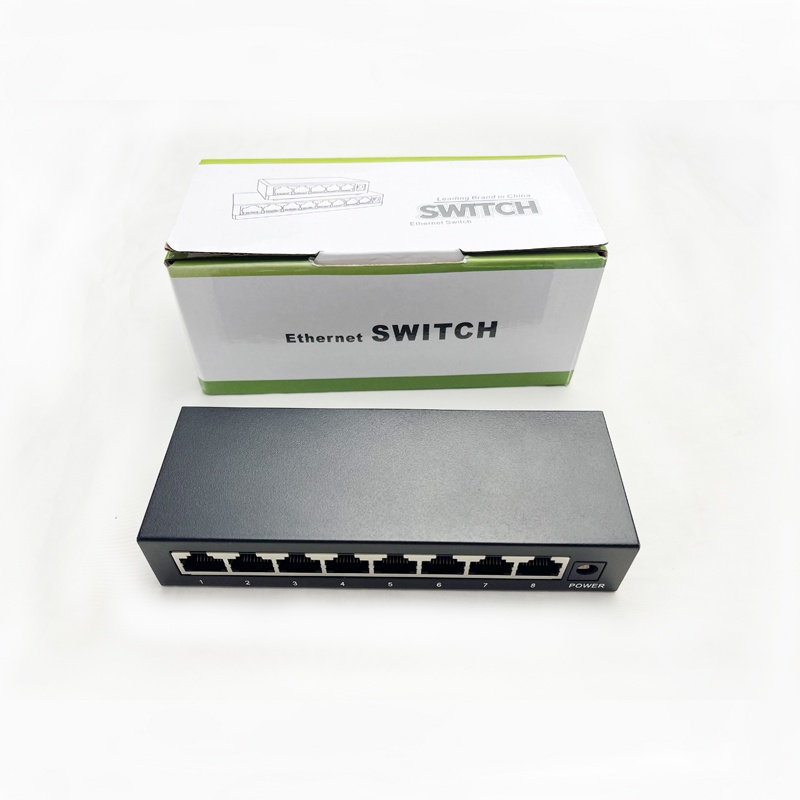

100Mbps 8 RJ45 port network switch
- Product No.:SST-8EHM
SST-8EHM Ethernet network switch series unmanaged switches are Fast Ethernet switch designed for high forwarding network environment such as school, family, SMEs and mini monitoring. It has 8 10/100Mbps adaptive Ethernet ports. All ports support wire-speed forwarding and the data rate is up to 100Mbps. There is 4K lightning protection to ensure smooth and stable operation. Auto MDI/MDIX is also available. No configuration is required; it will instantly operate as soon as you power it up.
Product Features:
Ø 8*10/100M Ethernet port with auto-negotiation function
Ø Support 100M speed rate,MDI/MDIX
Ø Support IEEE802.3x Flow control and back pressure control
Ø Each port has the complete LED Indicator light
Ø Support IEEE802.1d Spanning Tree
Ø Each port supports wire-speed switching ,64~1518 frame length can reach the wire speed
Ø Support high performance QoS function on each port
Ø Support multicast to avoid network congestion
Ø Support 5-16V voltage input
Ø Support 4K lightning protection of each port
Ø Require no configuration and will instantly operate as soon as you power it up
Ø Use low-power consumption chips,only 2.5W in full load conditions
Product Technical Parameter:
Standards IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree Certifications CCC, CE, FCC, RoHS Ethernet Port Ø Connector: RJ45 Ø Data Rate: 10/100M Ø Distance: 100m Ø UTP Type: UTP-5E or higher level Performance Ø Processing Type: Store and Forward Ø Transmission Mode: half/full-duplex with auto-negotiation function Ø MAC Table Size: 1K Ø Buffer Space: 448K Ø Back bandwidth: 1.6G Ø Time Delay: <150μs Power Ø Power type: external power supply Ø Input Voltage: AC100V~240V 50/60Hz Ø Connector: DC Socket Ø Working Voltage: 5V Ø Power Consumption: 1.8W~4W Environment Ø Storage Temperature: -40~70℃ Ø Operating Temperature: -10~55℃ Ø Relative Humidity: 5-90% ( no condensation) Warranty 3 year Physical Characteristics Ø Dimension: 152×83.5×30mm Ø Weight: 0.30kg Ø Color: Metal, Blue
