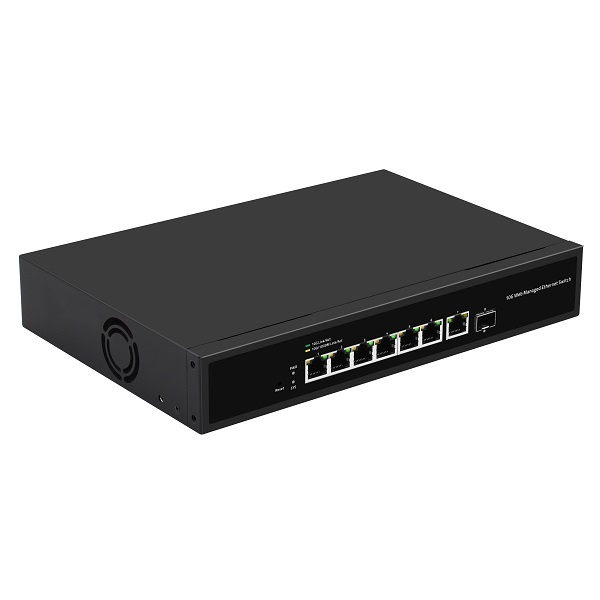

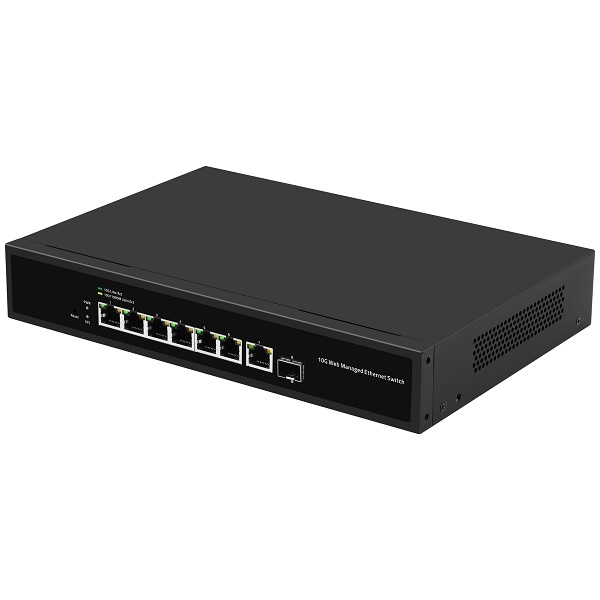

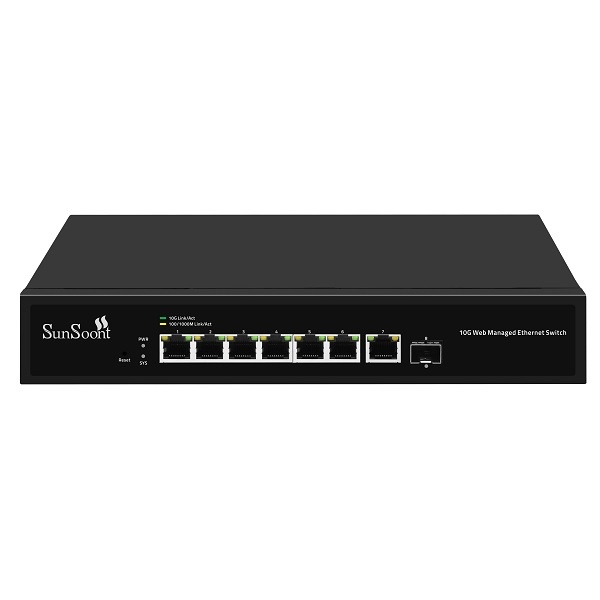

8 Port 10G WEB Management Ethernet POE Switch

8 Port 10G WEB Management Ethernet POE Switch

Product No.：SST-MPTG7E1S
Online Inquiry

【Product Description】

8 Port 10G WEB Management POESwitch, support 1* SFP+ ports, 7* 10G POEport. Perfect security control strategy and CPU protect policy,
improve product fault tolerance, ensure stable network operation and link load balancing; the device supports automatic DoS attack prevention, SNMP, IEEE 802.1q, spanning tree,
rapid generation tree protocol, link aggregation and other functions. Advanced security features and advanced Quality of Service (QoS), can be used as a core, distribution or access layer switch, with high port density, easy to manage,
it is an ideal choice for a variety of commercial network applications.

【Main Feature】

7*10Gbps POE ports+1*10Gbps SFP+ ports

Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, and IEEE 802.3x standards

Ethernet Ports support 100M/1G/2.5G/10Gbps self-adaptive

Support automatic port flipping (Auto MDI/MDIX)

The panel indicator LEDs will monitor the working status and assist in fault analysis

Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex

Support QoS data priority

【Application Environment】

Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Ø Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.

Ø Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Ø Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

【Specifications】

Description	Specification
Model	SST-MPTG7E1S
Interface	710Gbps POE ports 110Gbps SFP+ ports
Port Standard	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) IEEE802.3af/at/bt
Switching Bandwidth	160Gbps
Packet Forwarding Rate	178.56Mpps
Packet Buffer	16Mbit
MAC Address Table	32K
Jumbo Frame	Support
VLAN	VLAN range 1-4094, maximum active VLAN is 4K
Transmission Method	Store and Forward

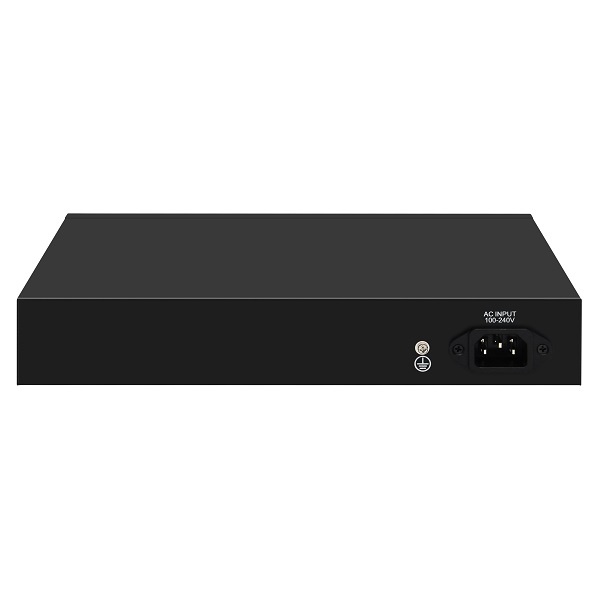

Power Supply	AC 100-240V 50/60Hz 54V 5.38A
Mainboard Power Consumption	48.75W
Structure Information	Product Dimensions: 32022245mm Packaging Dimensions: 37029085mm Product Net Weight: 1.9KG Product Gross Weight: 2.5KG
Packing Information	Carton Dimensions: 445310390mm Packing Quantity: 5PCS Packing Weight: 13.4KG
Package Contents	Switch 1pcs, Power Cord 1pcs, Manual 1pcs, Certificate of Inspection 1pcs, Rack-mounted kit 1 pair
Fan Quantity	1
Installation	Desktop, Rack-mounting
Surge Protection	Port Surge: Common mode 4KV, Differential mode 1KV Electrostatic ESD: Air 8KV, Contact 6KV
Operating Temperature	0~40°C
Storage Temperature	-40~70°C
Operation Humidity	10%~90%, non condensing
Storage Humidity	5%~95%, non condensing
PWR Green LED	On: Powered on Off: Powered off
SYS Green LED	On: The system is normal Flashing: System startup in progress
Ports 1-8	Green LED on: 10Gbps Link normal Yellow LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting
Ports 9-12	Green LED on: 10Gbps Link normal Yellow LED on: 1G/2.5Gbps Link normal Off: Link blocked Flashing: Data transmitting
Reset	Long press for 6 seconds to restore factory settings
L2 Function
Port	Port Switch configuration
	Port Description configuration
	Port Speed configuration
	Port Duplex configuration
	Port Flow Control configuration
	Jumbo Frame
	EEE
Link Aggregation	Support load balance policy; Base on MAC and IP-MAC
	Static and Dynamic Group
	LACP
	Up to 8 groups
Storm Control	Boardcast suppression
	Unknown Multicast
	Unknown Unicast
Port Mirroring	One to one monitor
	Many to one monitor
	Ingress/Egress/Both
	Up to 4 session groups
Port Security	MAC Address Constraints
Port Security	Protect/Restrict/Shutdown
Port Isolation	Support
Port Rate-limit	Support
VLAN	Access/Trunk/Hybrid
	VLAN Tunnel (Q-in-Q Tunnel)
	VLAN range 1-4094, maximum active VLAN is 4K
MAC Address	Filtering MAC Address
MAC Address	Static MAC address
Spanning Tree Protocol	STP/RSTP
	BPDU Filter
	BPDU Guard
	Edge Port
Multicast	IGMP Snooping
	Router Port
	Static IGMP Join
	IGMP V1/V2
QoS	Traffic classification, Supporting SP and WRR scheduling
	Port Priority
	802.1P Priority
	IP DSCP Priority
	Priority Remarking
	Support up to 8 queues per port
ERPS	Main Ring
Services
Access Protocol	HTTP
Access Protocol	Session Timeout
Security	DHCP Snooping
Diagnostics
Copper Test	Support
Ping	Support
Equipment Management
Manager Acces	HTTP
Manager Acces	SNMP
Manager IP	Static Address
	Manager VLAN
	DNS
	DHCP Client
SNMP	V2C
	Community
	Trap Host
SNMP MIB	RFC 1213 MIB-II
	RFC 1643 Ethernet MIB
	RFC 2863 Interface MIB
User Management	Support
Firmware Management	Firmware upgrade
Configuration Management	Upload/Backup Configuration
Save	Support
Restart	Support
Factory Defaults	Support
Standard Compliance
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
