Gigabit fiber optic switch with 8 SFP slot

Gigabit fiber optic switch with 8 SFP slot

Product No.：SST-8F2ET
Online Inquiry

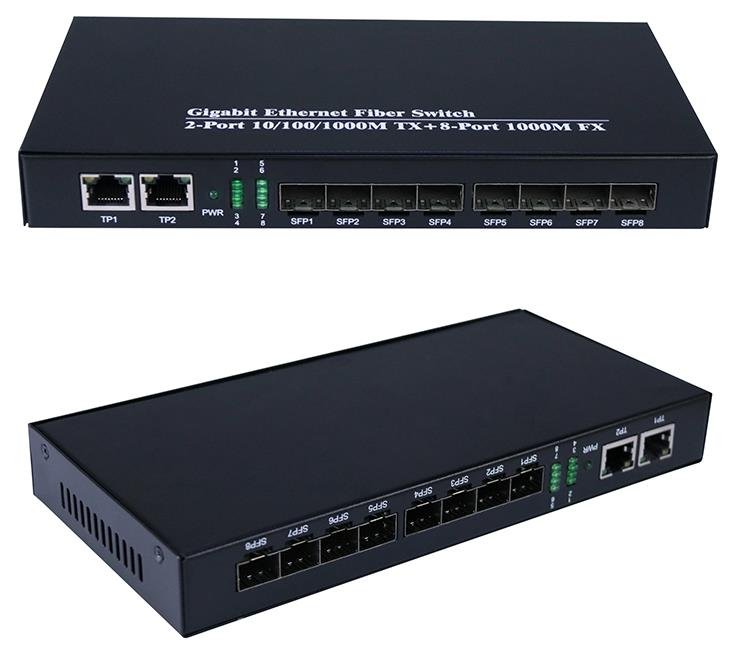

SunSoont SST-8F2ET-SFP SFP Gigabit fiber optic switch with 8 SFP slot and 2 RJ45 uplink ports ,IEEE802.3z/AB 1000Mbps10 port Gigabit Ethernet Switches supports two types media for network
connection and switching such as 10/100/1000Base-T and 1000Base SX/LX. The switch is designed with a switch controller and buffer memory that connects two types
segments to operate smoothly. The Switch with 8 SFP port 1000Base-T/SX/LX and 2 RJ45 port 10/100/1000Base-T(selectable). The RJ45 port support Half or Full Duplex modes. All SFP ports support only 1000Mbps and Full-Duplex modes. With external power unit, it provides good stability and reliability.

Technical Features

1. Standards: IEEE 802.3z/AB 10/100/1000Base-T 1000Base-SX/LX/ZX

2.Fiber Cable:

1000SX: 50/125,62.5/125µm multi-mode

1000LX/ZX: 8.7/125, 9/125µm single-mode.

3. UTP Cable: Cat.5e or Cat.6 cable up to 100m.

4. Data Transfer Rate:

RJ45 port: 10M, 100M, 1000Mbps

SFP: 1000Mbps.

5.LED Indicators : P1,P2,P3,P4,P5,P6,P7,P8, SPD, Act, PWR.

6. Duplex Modes: RJ45 port: Way Full/Half Duplex auto- negotiation SFP: full-duplex mode

7.Power Requirement: 220V(100-260V)AC,50Hz DC5V/2A

8. Ambient Temperature: 0 ~ 50℃

9.Humidity: 5% ~ 90%

10. dimensions:30 × 172 × 110mm(H×W×D)

Specifications

Model	SST-8F2ET-SFP
Product	Full Gigabit 10 port fiber Switch
Fixed Port	210/100/1000Base--TX RJ45 port (Data) 81000M Integrated SFP(optional 1310/1550)
Network Protocol	IEEE802.3 IEEE802.3i 10BASE-T IEEE802.3u100BASE-TX IEEE 802.3ab1000BASE-T IEEE802.3x IEEE 802.3z 1000BASE-X
Port Specification	100/1000BaseT(X) Auto
Transmission Mode	Store and Forward(full wirespeed)
Bandwidth	10Gbps
Packet Forwarding	12.96Mpps
MAC Address	2K
Buffer	2.5M
Transmission Distance	10BASE-T : Cat3,4,5 UTP(≤250 meter) 100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter) Single mode single fiber(MAX 20KM) Single mode double fiber (MAX 20KM) Multiple mode double fiber(MAX 850M/2KM) Optional 3-100KM SFP
Watt	≤15W;
LED Indicator	PWR:Power LED 1-8:(SFP LED)\ TP1/TP2: Port LED Port :(Green=10/100M LED+Orange=1000M LED)
Power	External power DC 5V 3A
Operating Temperature/Humidity	-15~+65°C;5%~90% RH Non coagulation
Storage Temperature/Humidity	-40~+75°C;5%~95% RH Non coagulation
Product size/Packing size(LWH)	215mm134mm30mm 295mm255mm55mm
N.W/G.W(kg)	0.86kg/1kg
Installation	Desktop (optional wall hanger+machine hanger parts)
Lightning Protection level	3KV 8/20us; IP30
Certificate	CE mark, commercial;CE/LVD EN60950; FCC Part 15 Class B;RoHS;MA;CNAS
Warranty	Whole device for 3 year
