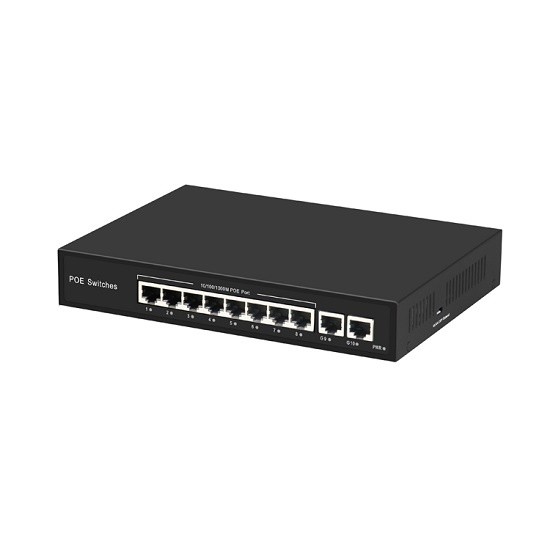

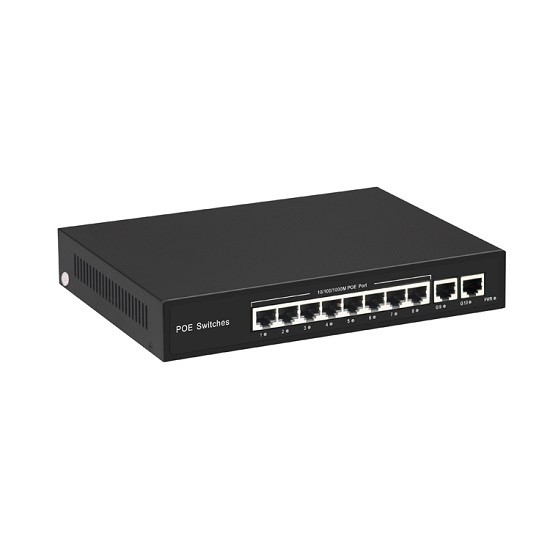

Gigabit POE Switch with 8 POE ports and 2 RJ45 Uplink

Product Overview

10-Ports 10/100/1000Mbps POE Switch, using high-quality high-speed network IC and the most stable POE chip, POE port meets 802.3af / 802.3at standard, this series of POE Switch can be 10/100/1000Mbps Ethernet. The network provides a seamless connection, and the POE power port can automatically detect and power the powered devices that comply with the IEEE802.3af / IEEE802.3at standards. The non-POE device intelligently detects no power and only transmits data.

POE (Power over Ethernet) refers to the technology of providing dc Power supply to some IP-based terminals (such as IP telephone, wireless access AP, network camera, etc.) while transmitting data signals. These devices receiving dc Power supply are called receiving devices.

With simple and convenient installation and maintenance methods and rich business features, it helps users to build a safe and reliable high-performance network. It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and residential broadband; it can be widely used in Ethernet access scenarios such as small and medium-sized enterprises, Internet cafes, hotels, and schools.


Product Feature

8*10/100/1000Mbps POE Ports + 2*10/100/1000Mbps Ethernet Uplink Ports

Comply with IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE802.3af/at standards

Flow control mode: full-duplex adopts IEEE 802.3x standard, half-duplex adopts Back pressure standard

Support port auto flip (Auto MDI/MDIX)

Exchange mechanism using store-and-forward

All ports support wire-speed switching

Automatically supplied to adaptive devices

Panel indicator monitoring status and help failure analysis.


Product Technical Parameter

Product Name

10-Ports 10/100/1000Mbps POE Switch

Model

SST-P8ET-2ET-S

Connector Type

8 Ports 10/100/1000Mbps POE + 2 Ports 10/100/1000Mbps Ethernet Uplink

Network Protocols

IEEE802.3

IEEE802.3u

IEEE802.3x

IEEE802.3ab

POE Parameters

POE Standard: IEEE802.3af /IEEE802.3at



Max each port: 15.4W ( IEEE 802.3af )

Max each port30W ( IEEE 802.3at )



POE compatibility: IEEE 802.3af/at adaptive



POE port output: DC48-55V



Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)

Network Media

10BASE-T: Cat 3,4,5 UTP(≤100 meter)

100BASE-T: Cat 5 UTP(≤100 meter)

1000BASE-TX: Cat5 or more UTP (≤100 meter)

Performance Specification



Bandwidth: 20Gbps



MAC Address: 2K



Packet Buffer Memory: 2M



Packet Forwarding Rate: 14.88Mpps



Forwarding Mode: Store-And-Forward

Power Supply

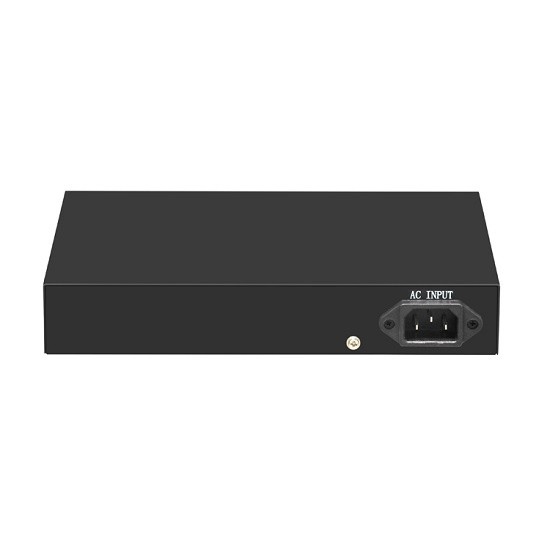

Power input: AC100-240V 50/60Hz,  Output: 52V,  Power Budget: 150W

Working Environment

Operating Temperature: -20℃ ~ 50℃;

Storage Temperature: -40 ~ 85℃;

Operating Humidity: Max 90%, non-condensing

Storage Humidity: Max 95%, non-condensing

Working Height: Max to 10,000 feet (3,000 meters)

Storage Height: Max to 10,000 feet (3,000 meters)

Physical Parameter

Product Dimension (L*W*H): 222mm*163mm*40mm

Package Dimension (L*W*H): 303mm*190mm*60mm

N.W: 0.9KG

G.W: 1.2KG

Package Contents

1.Ethernet Switch1 unit

2.User Guide1 unit

3.Warranty Card1 unit

4.Power Cord1 unit

MTBF

100,000 hours

Certification

CE ,RoHS, FCC, CCC

Warranty

3 years
