Products >> 4G LTE Devices >> 4G LTE CPE

  • 4G LTE wireless bridge
  • 4G LTE wireless bridge
  • 4G LTE wireless bridge
  • 4G LTE wireless bridge
4G LTE wireless bridge 4G LTE wireless bridge 4G LTE wireless bridge 4G LTE wireless bridge

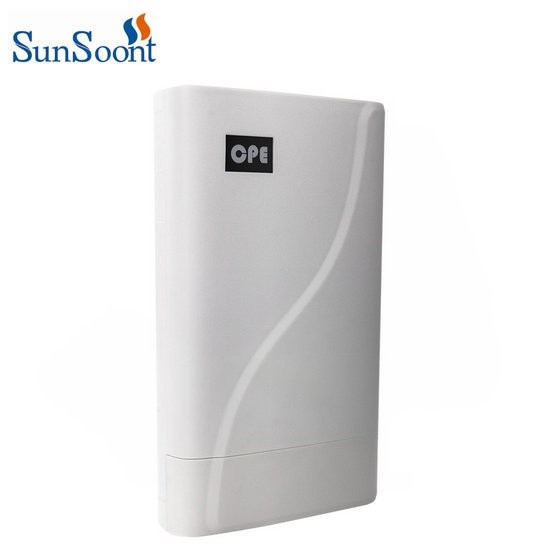

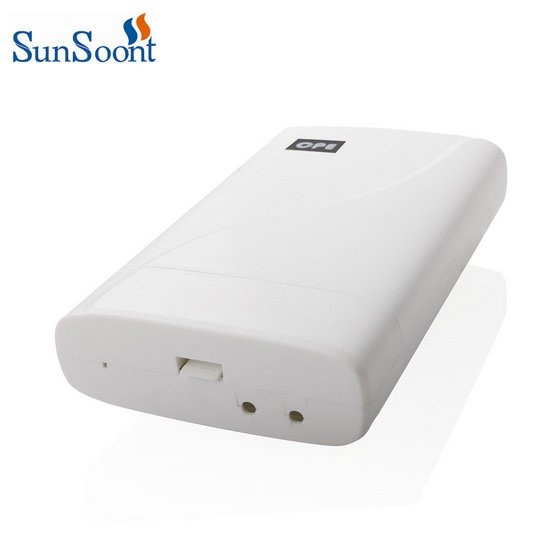

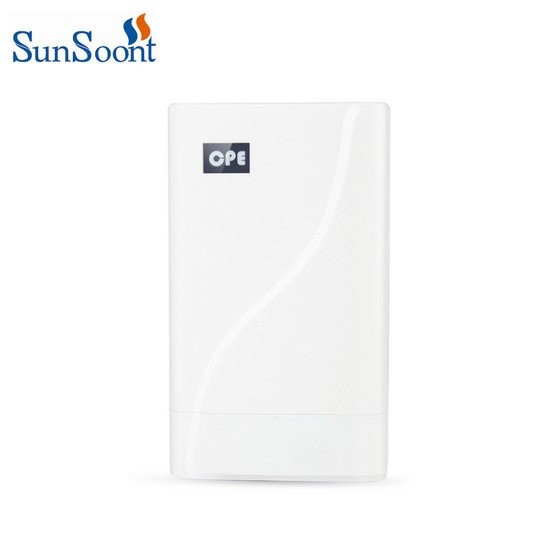

4G LTE wireless bridge

 1, Dual network port design provides wired network for other devices.
2,POE power supply, flexible networking mode.
3,Insert a SIM card to easily provide a network for your device.
4, It can be used outdoors, and the card can be used anytime, anywhere.
Specification

Interface

接口

Network/网络

2*lan

SIM

2FF Mini sim

Button/按钮

reset

DC adapter/直流适配器

Input voltage(输入电压):24V-1A

Solution 方案

Routing and WiFi chipset supplier

MTK

BASE

基础信息

Routing and WiFi chipset model

MT7620N

Routing and WiFi processor info

IEEE 802.11 /b/g/n

DDR/SPI

64MBytes/8MBytes

Software

软件

Language/语言

Chinese&English

Supported/支持

APN SettingDevice SettingsRouting SettingsFirewall Settings



Technical standard

LED/指示灯

Supported/支持

OS/操作系统

Windows XPWindows Vista Windows 7

Windows 8Windows 10MACLinux

Browser/浏览器

IE (7.0 and later)Firefox (3.0 and later)

Safari (4.0 and later)Opera (10.0 and later)Chrome (10.0 and later)


Module information

Interface/接口

LCC

Size/尺寸

33*30*2.6mm

Wireless chipset supplier/芯片厂商

ZTE

Wireless chipset model/型号

ZX297520v3

Wireless processor info/信息

CAT4

USIM/SIM slot/接口

Standard 6 PIN SIM card interface3V SIM card and 1.8V SIM card

Operating temperature/工作温度

-20 to 60° C

Storage temperature/存储温度

-40 to 85° C

Humidity/湿度

5% to 95%


Frequency band

GSM band

Band 3/8

TDS band

Band 34/39

WCDMA band

Band 1/5/8

LTE TDD band

Band 38/39/40/41

LTE FDD band

Band 1/3/5/8
