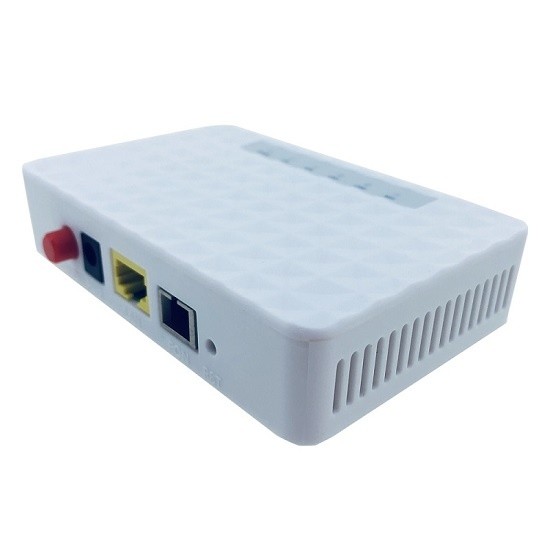

Single port GPON ONU

Product No.：SST-GPON-ONU
Online Inquiry

Product Overview:

Gigabit GPON ONU, user terminal equipment, application oriented operation level of FTTH, can support the pure data service access, 802.3ah international standards for the design of the GEPON based ONU products, and follow the technical requirements of China Telecom, with good interoperability, and mainstream manufacturers OLT office end equipment interoperability. It can be interconnected with the OLT equipment of the mainstream Bureau end manufacturers to meet the needs of FTTH and FTTB scene construction and the application of family users. It supports the development of large broadband data and Internet access services, and provides good QOS and security protection.

Product Features:

1. Warranty time for 3 years

2. Router mode supports PPPoE/DHCP/ static IP

3. Support port-based rate limitation and bandwidth control;

4. In compliant with ITU-T G.984 Standard

5. Up to 20KM transmission Distance

6. Support data encryption, group broadcasting, port Vlan separation,etc.

7. Support Dynamic Bandwidth Allocation (DBA)

8. Support ONU auto-discovery/Link detection/remote upgrade of software;

9. Support VLAN division and user separation to avoid broadcast storm;

10. Support power-off alarm function ,easy for link problem detection

11.Support broadcasting storm resistance function

12.Support ACL and SNMP to configure data packet filter flexibly

13. Specialized design for system breakdown prevention to maintain stable system

14. Support software online upgrading EMS network management based on SNMP ,convenient for maintenanc

Product Technical Parameter:

Item		Parameter
Interface	PON Interface	1 GPON optical interface Meet Class B+ standard Upstream 1.244Gbps; downstream its 2.488Gbps SC single-mode fiber, Split ratio:1:64 Transmission distance 20KM
	User Ethernet Interface	1*10/100/1000Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance
	Power Interface	12V DC Power supply
Performance Parameters	PON Optical Parameter	Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power:0.5~+5dBm Rx Sensitivity: -27dBm Saturation Optical Power: -8dBm Optical Fiber: 9/125um single-mode fiber, SC
	Data Transmission Parameter	PON Throughput: Downstream 2300Mbps; Upstream 1110Mbps, Packet Loss Ratio:<1*10E-12 latency: <1.5ms
	Gateway	Router mode supportsPPPoE/DHCP/ static IP WAN support Routerand Bridge mode WAN support Internet,VoIP,IPTV,TR069 LAN supports DHCP and static IP Support NAT and NAPT, Support UPnP
	Business Capability	Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast
Network Management	Management Mode	Support ITU-T G.984 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management
Network Management	Management Function	Status monitor, Configuration management, Alarm management, Log management
Indicator	LED Indicator	PWR: Power up or down SYS: System instructions LOS: Optical Link Status PON:ONU Registered LINK/ACT: Link Status of Ethernet Interface
Physical Features	Shell	Plastic casing
	Power	External 12V 0.5A AC/DC power supply adapter Power consumption: <2W(FD101HC),<2.3W(FD111HC)
	Physical Specifications	Item Dimension:120mm(L) x 80mm(W) x 26mm (H) Item weight:0.1kg
	Environmental Specifications	Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing)
