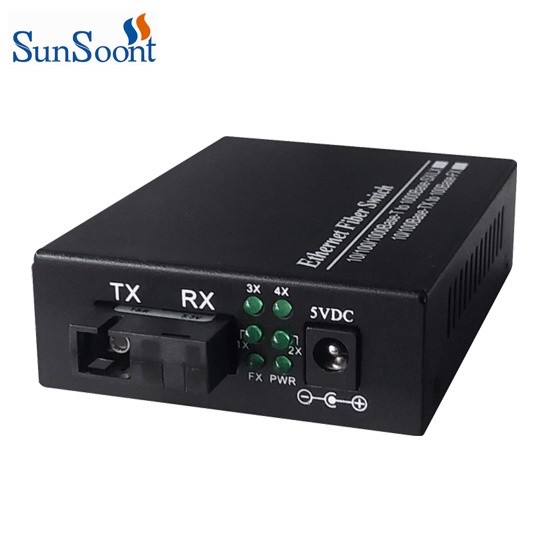

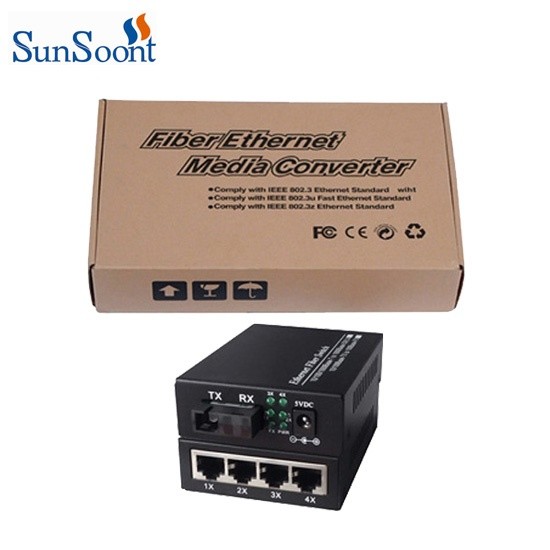

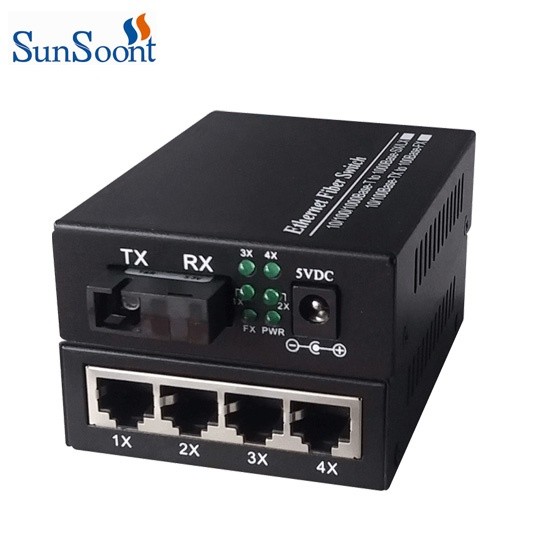

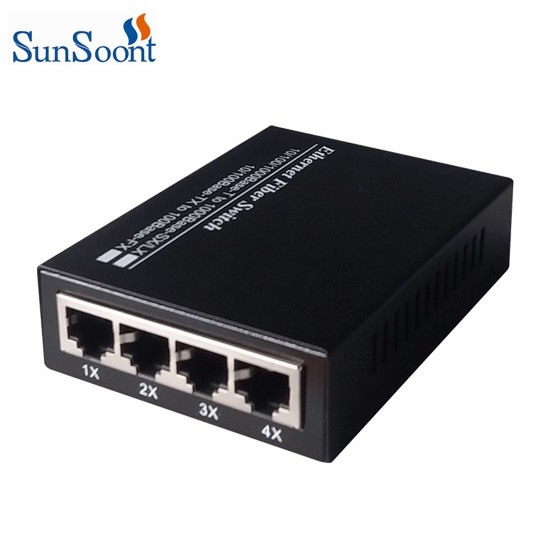

Gigabit 1 SC fiber port and 4 RJ45 port fiber optic switch

Product Overview:

SST-1F4ET-1X9, Gigabit Ethernet Fiber Switch with 4 10/100/1000Mbps Ethernet ports and 1 1.25Gbps fiber port. It extends the transmission distance of a network from 550m to 120km via fiber cables. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.

Product Feature:

Ø Support the switch between 10/100/1000Base-T and 1000Base-SX/LX

Ø 1*1.25Gbps full-duplex fiber port and 4*1000M Ethernet ports with auto-negotiation function

Ø Support 1000M speed rate,MDI/MDIX and half/full-duplex with auto-negotiation function

Ø Each port has the complete LED Indicator light

Ø Support single mode single fiber,single mode dual fiber,multi-mode dual fiber and SFP slot

Ø Support IEEE802.1d Spanning Tree

Ø Support IEEE802.1q and VLAN division

Ø Support high performance QoS function on each port

Ø Support multicast to avoid network congestion

Ø Support 5-16V voltage input

Ø Support 10K Jumbo Packet

Ø Require no configuration and will instantly operate as soon as you power it up

Ø Low power consumption chip with heat sink built in to ensure longtime efficient operation


Product Technical Parameter:

  Standards

IEEE802.3 10Base-T

IEEE802.3u 100Base-TX/FX

IEEE802.3ab 1000Base-T

IEEE802.3z 1000Base-SX/LX

IEEE802.3x Flow control

IEEE802.1p QoS

IEEE802.1d Spanning Tree

IEEE802.1q VLAN

Certifications

CCC, CE, FCC, RoHS

Ethernet Port

Ø Connector: RJ45

Ø Data Rate: 10/100/1000M

Ø Distance: 100m

Ø UTP Type: UTP-5E or higher level

Fiber Port

Ø Connector: SC/FC/ST/LC slot

Ø Data Rate: 1.25Gbps

Ø Optical wavelength: 850nm/1310nm/1490nm/1550nm

Ø Distance: 550m100km

Performance

Ø Processing Type: Store and Forward

Ø MAC Table Size: 8K

Ø Buffer Space: 1Mbit

Ø Back bandwidth: 10G

Ø Time Delay:20μs

Power

Ø Power type: external power supply

Ø Input Voltage: AC100V240V  50/60Hz

Ø Connector: DC Socket

Ø Working Voltage: 5V

Ø Power Consumption: 1.8W5W

Environment

Ø Storage Temperature: -4070℃

Ø Operating Temperature: -1055℃

Ø Relative Humidity: 5-90% ( no condensation)

Warranty

3  year

Physical Characteristics

Ø Dimension: 94×70×26mm

Ø Weight: 0.20kg

Ø Color: Metal, Black
