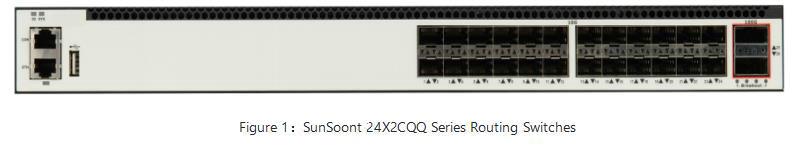

The SunSoont 24X2CQQ Series Routing Switches (whose abbreviation is “24X2CQQ”) are high performance 1GE/2.5GE/10GE/25GE/40GE/100GE switches designed based on ethernet switching chip CTC7132. 24X2CQQ’s product position is to meet the requirements of next generation Enterprise, Data Center, Metro and HCI (Hyper-Converged Infrastructure) networks.
24X2CQ’s SunSoont OS system software supports mainstream protocols and applications which can be conveniently deployed and managed.

Based on Carrier Grade High performance chip
24X2CQ series routing switches, which are designed based on Ethernet switching chip CTC7132. The CTC7132 is Carrier Grade high-performance chip which help the 24X2CQ to meet the requirement of Metro/Enterprise/Data Center/HCI networks.

Varied Port Types
Support 1G / 2.5G / 10G / 25G / 40G / 100G ports to meet different network requirements.

System Design for Green and Energy Saving
Intelligent FAN adjustment and real-time power consumption monitoring technology are provided for the cost of maintenance redundancy and help to build a green and energy saving data center.

Customized Profile for Different Deployment Scenarios
The Flexible Table Management (FTM) technology offers multiple table size configura-tion profiles as optimized choices for different network scenarios.

Intelligent Ethernet OAM: completed network fault management and performance guaranty
With the IEEE802.1ag and ITU-T Y.1731 end-to-end OAM, Ethernet service providers can monitor the services, survey the end-to end performance and ensure the service quality match the agreement.

The fault management technique includes CCM, LTM and LBM. Performance targets include measure for latency and jitter.

24X2CQ Support remote management，network monitoring，network fault indication，remote loopback and MIB parameter retrieval according to the standard 802.3ah EFM.

Data Center Features
24X2CQ supports leading edge Data Center features: Priority Flow Control (PFC), explicit Congestion Notification (ECN) and Data Center TCP, etc.

Support MLAG (Multi-Chassis Link Aggregation) to aggregate links across different devices. MLAG can build an Active-Active system to improve the reliability of the network links from single board grade to device grade. MLAG use a peer link between to devices to aggregate two devices and make them as one device logically. Ports of two different devices join the aggregate ports together and all port can transmit the data traffic. MLAG need to management the device respectively, but the configurations are easier than stacking, reboot is NOT required after MLAG is configured. Forwarding and configuring are processing on local device, in normal condition the traffic do NOT transmit trough the peer link, the bandwidth of peer link is not the bottleneck of the network and the latency is low.

Support overlay technology (include NVGRE/VXLAN/GENEVE etc.). Overlay can make layer2 packets across the layer3 networks by using NVGRE/VXLAN/GENEVE header to encapsulate the entire Ethernet packets. Overlay resolves the problem of MAC table size limitation in traditional layer2 networks, resolves the problem of VLAN id count limitation, and resolves the problem network dynamic adjustment which cannot achieve by VLAN/VPN. Use VXLAN for example, 24 bits VNI identifier can support at most 16777215 logic networks, layer2 networks built by VXLAN can keep the same IP/MAC etc. when move the virtue machine.

MLAG and overlay features are also good candidates for switches in data center network.

24X2CQ supports RPC-API for SDN (Software Defined Network). SDN is a new architecture of network which can substantially simplify the management and maintenance by separating the control plane and data plane of the network.

High Reliability
24X2CQ is powered by Hot-swappable power modules which supports AC/DC 1+1 redundancy；Fans support 2+1 redundancy；Support Real-time environment monitoring technology to detect the chipset temperature, status of fan and power, etc.

Support LACP / ECMP / VRRP / VARP / STP/RSTP/MSTP / Smart Link / BFD / ERPS / G.8031 / G.8032 / Load-Balancing, etc. to protect the network traffic all-around effectively.

Patented technology “Sysmon” for CPU status monitoring can take action when system is error.

Outstanding QoS Control
 24X2CQ provides 10hardware queues per-port (8 unicast queues, 1 multicast queues, and 1 monitor queue).Support multi-stage scheduling technology such as WDRR (Weighted Deficit Round Robin) / SP (Strict Priority) and TD (Tail Drop) / WRED (Weighted Random Early Detection) to prevent congestion. Support flexible queue scheduling mechanism to do the shaping for queue or port traffic.

Ingress and egress policer provide intelligent bandwidth monitoring, which support to adjust the granularity according to the port speed. Both srTCM (Single Rate Three Color Marker) and trTCM (Two Rate Three Color Marker) can be supported.

Triple-play Service Support with Bandwidth Guaranty for High Quality Application
24X2CQ offers high bandwidth for Triple-Play services such as IPTV, video monitoring. The built-in QoS capabilities and flexible queuing technologies guarantee high quality of services.

Rich multicast protocol set (IGMP Snooping, IGMP v1/v2, PIM-SM) support up to 2K multicast groups and 4K logical replications per group. With SunSoont OS software, IPTV service and multicast latency control are fully supported.

Comprehensive Network Security Policy
24X2CQ supports subscriber-class / switch-class / network-class security control.

IPv4 / IPv6 / MAC ACL can filter IPv4 / IPv6 / Non-IP packet respectively. Besides that, extended IPv4/IPv6 ACL which can match Layer2 / layer3 / layer4 information in one rule is available. The ACLs can apply to physical ports / vlan / port group / vlan group. The members of port group or vlan group share a set of ACLs and save the TCAM resource.

ARP Inspection and IP Source Guard features prevent network from malicious ARP attack. Support CPU Traffic Protection, Storm Contbiwurol and CPU load optimization features. Support centralized 802.1x authentication feature to forbidden illegal user accessing network.

Convenient Management features
Support varied management interfaces, include console port / inband network ports / outband network port / USB port. Support SNMP v1/v2/v3, Support CLI (Command Line Interface), web management, Telnet and FTP connection. Support OAM to make management more convenient, and support SSH2.0, SSL, etc. to ensure security of management.
