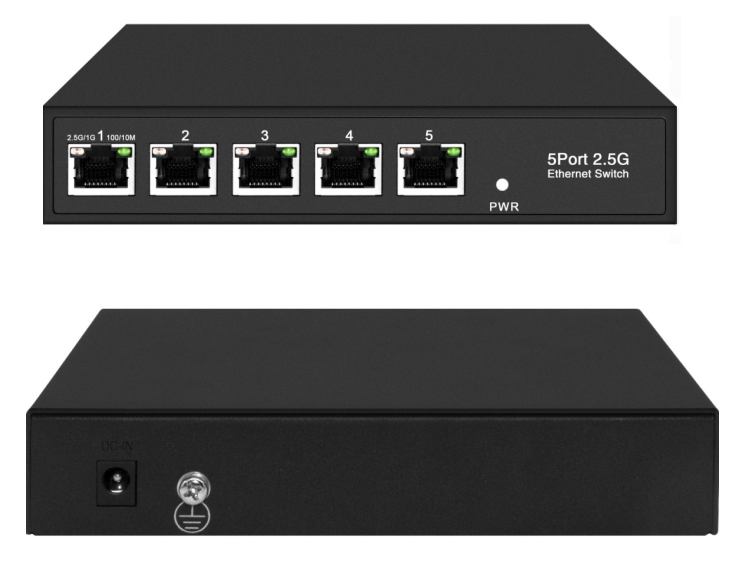

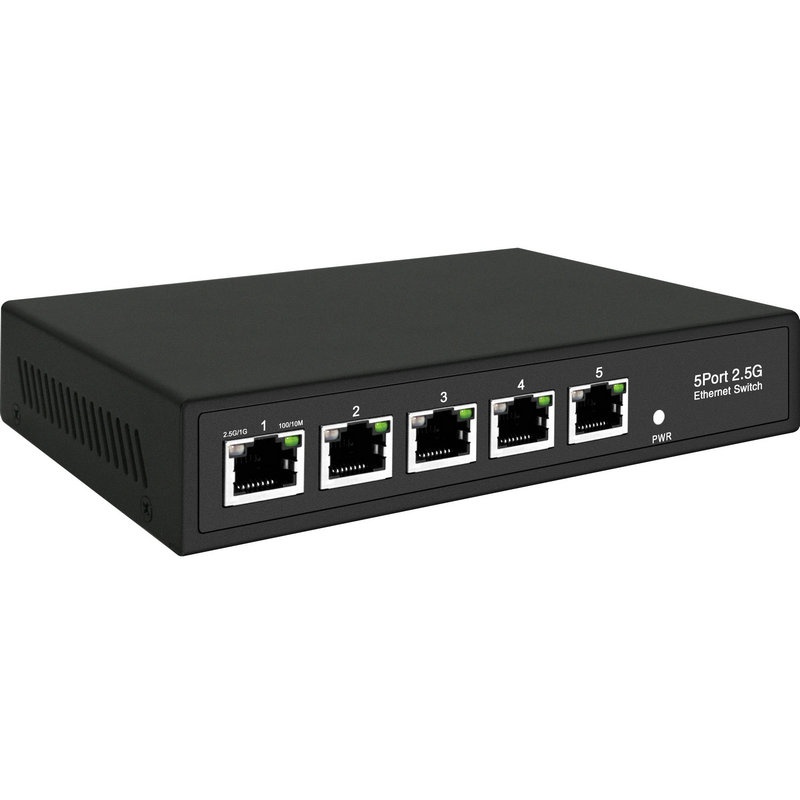

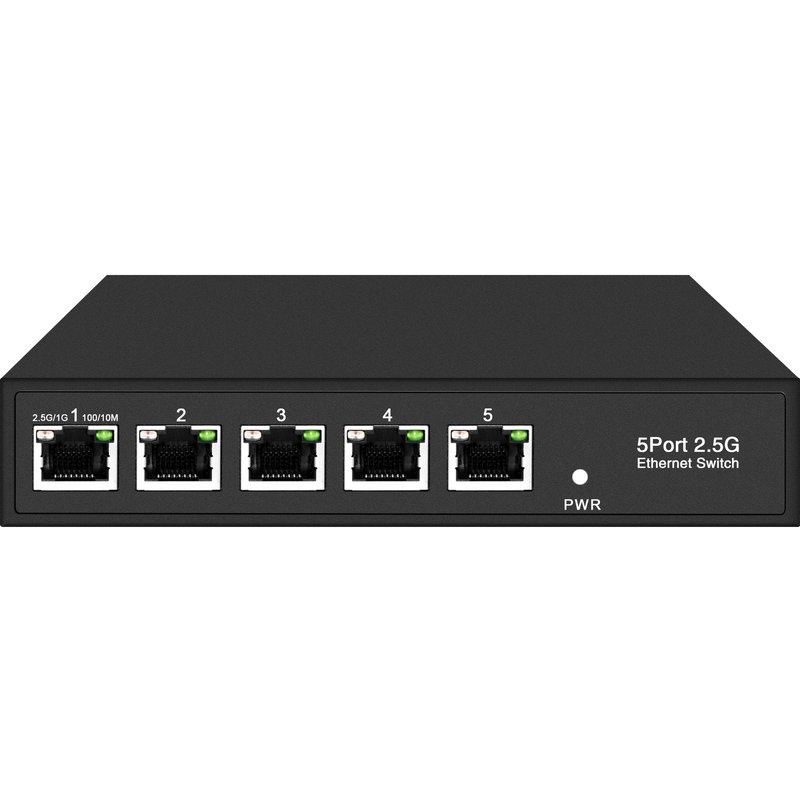

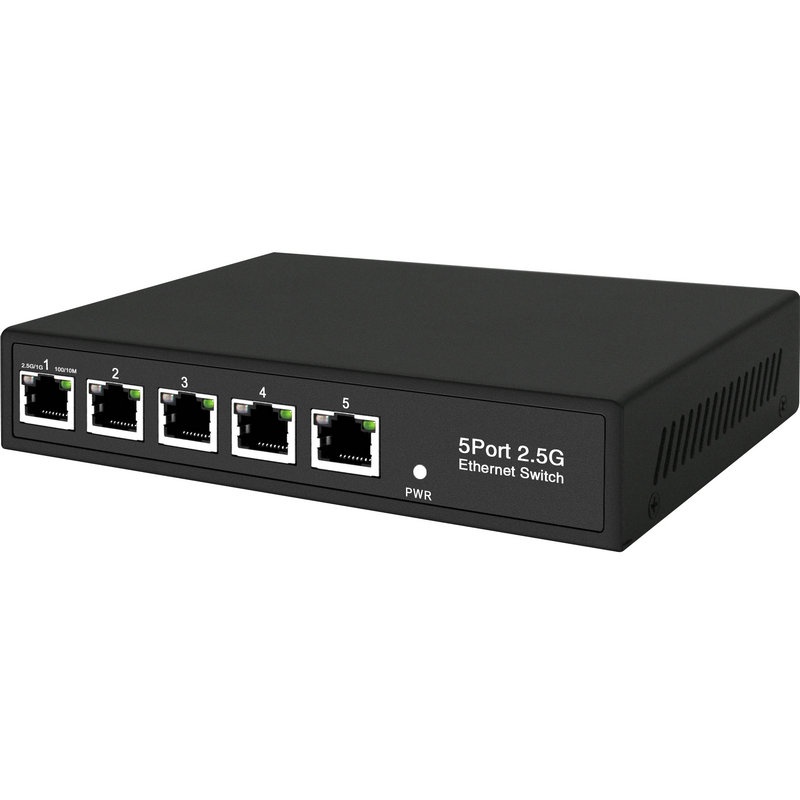

5 Ports 2.5G Ethernet Switch

Product No.：SST-2.5G5T
Online Inquiry

【Product overview】

Sunsoont 5 ports 2.5G Ethernet switch adopts the network chip solution of high quality and high speed. The product is designed to be fan-free and quiet, which completely solves the problem of loud noise of small switches deployed in the office environment. The switch has 5* 2.5G RJ45 ports, providing seamless connection to 10/100/1000M/2.5G Ethernet for easy management and maintenance. The switch can be widely used in security network video surveillance, hotels, campuses, and network engineering of small and medium-sized enterprises.

【Main Feature】

n 5 * 2.5 G RJ45 port

n Support IEEE 802.3、 IEEE802.3u、 IEEE 802.3ab、 IEEE 802.3bz、 IEEE 802.3ae、 IEEE 802.3x

n Ethernet port support 10/100/1000 m / 2.5 G adaptive

n Supports automatic port rollover（Auto MDI/MDIX）

n Panel indicators monitor working status and assist in fault analysis

n Flow control mode, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

n Support lightning protection: common mode 6KV; Electrostatic air 8KV, contact 6KV

【Application environment】

Ø Metropolitan area optical fiber broadband network: telecom, cable TV, network system integration, such as number, according to network operators

Ø Broadband private network: applicable to financial, government, oil, electric power, public security, education and other industries private network

Ø Multimedia transmission, image, voice and data integrated transmission, for remote teaching, meeting TV, video phone and other applications

Ø Real-time monitoring: real-time control signal, image and data transmission

【Technical index】

Input/output interface
Power	DC 12/2A
Ethernet	5*2.5G RJ45 ports
Performance
Backplane bandwidth	80Gbps
Packet forwarding rate	28.8Mpps
VLAN	4096
MAC address table	16K
Jumbo frame	12Kbytes
Forwarding mode	Store forward
MTBF	100000 Hour
Network parameter
Network protocol	IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab(Gigabit Ethernet) IEEE 802.3z（Gigabit Ethernet） IEEE802.3x (Flow control)
Industry standard	EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-5(Surge)
Network medium	10Base-T: Cat3, 4, 5 or above UTP/STP(≤100m) 100Base-TX: Cat5 or higher UTP/STP(≤100m) 1000Base-TX: Cat5 or higher UTP/STP(≤100 M)
Optical fiber medium	Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Certification
Safety certification	CE、FCC、RoHS
Environmental standard
Working environment	Operating temperature: -10~50°C Storage temperature: -40~70°C Operating humidity: 10%~90%, no condensation Storage humidity: 5%~90%, no condensation
Functional indication
PWR（Power indicator）	On: Powered on Off: Powered off
1-8 Network port green indicator	On: 2.5G Link connect normal Off: Link off Flashing: data transmitting
1-8 Network port yellow indicator	On: 10/100/1000M Link connect normal Off: Link off Flashing: data transmitting
Physical specification
Structural dimension	Product size: 16011231mm Package size: 19313191mm Product weight: 0.58KG Packing weight: 1.09KG
Operating voltage	Adapter input voltage: AC 100-240 V Switch input voltage: DC 12V2A
Packing list	1. Switch 1pcs、 2. Specification 1pcs、 3. Certificate of qualification 1pcs、 4. Power adapter 1pcs
Order Information
SST-2.5G5T	5 Ports 2.5G Ethernet Switch
