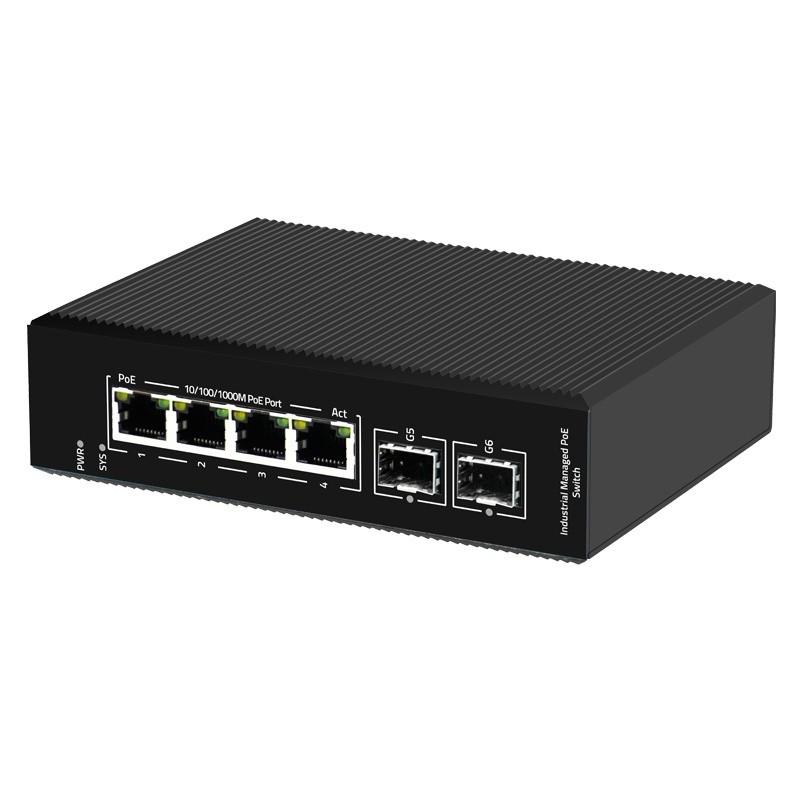

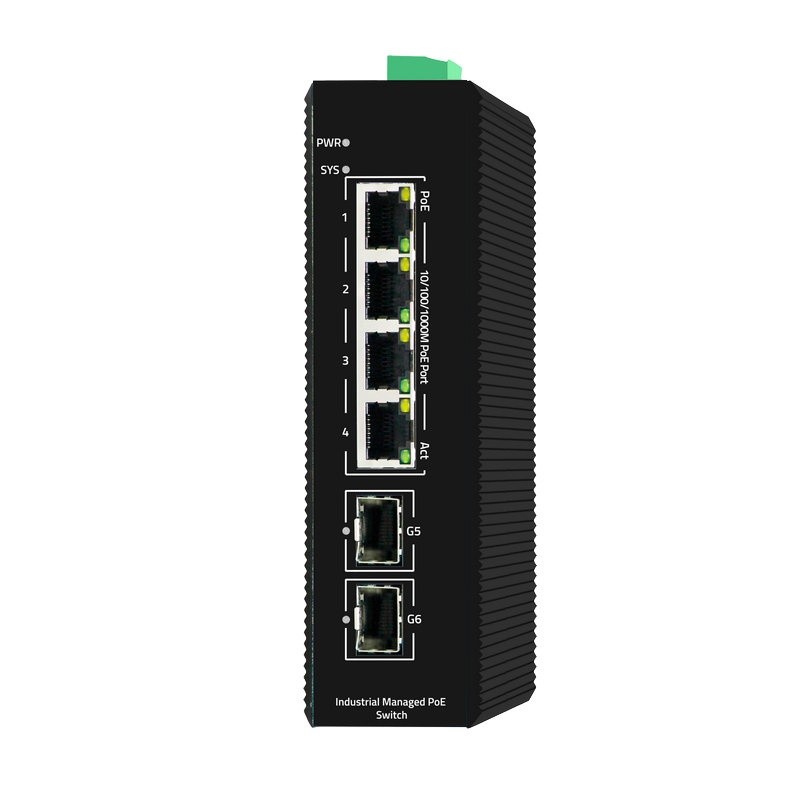

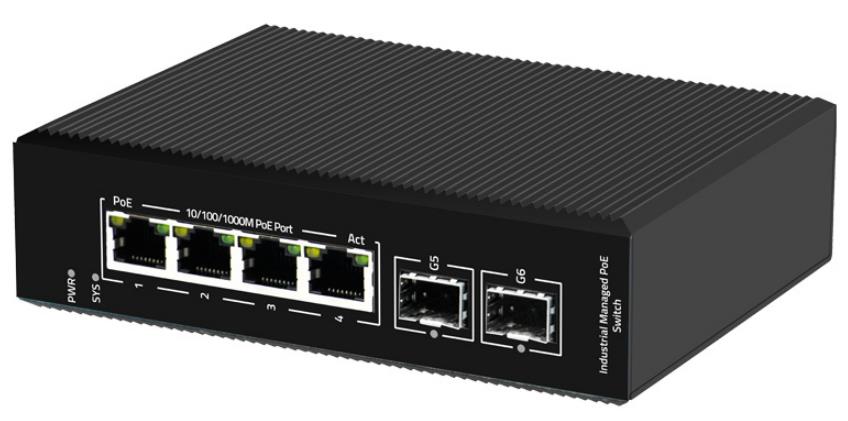

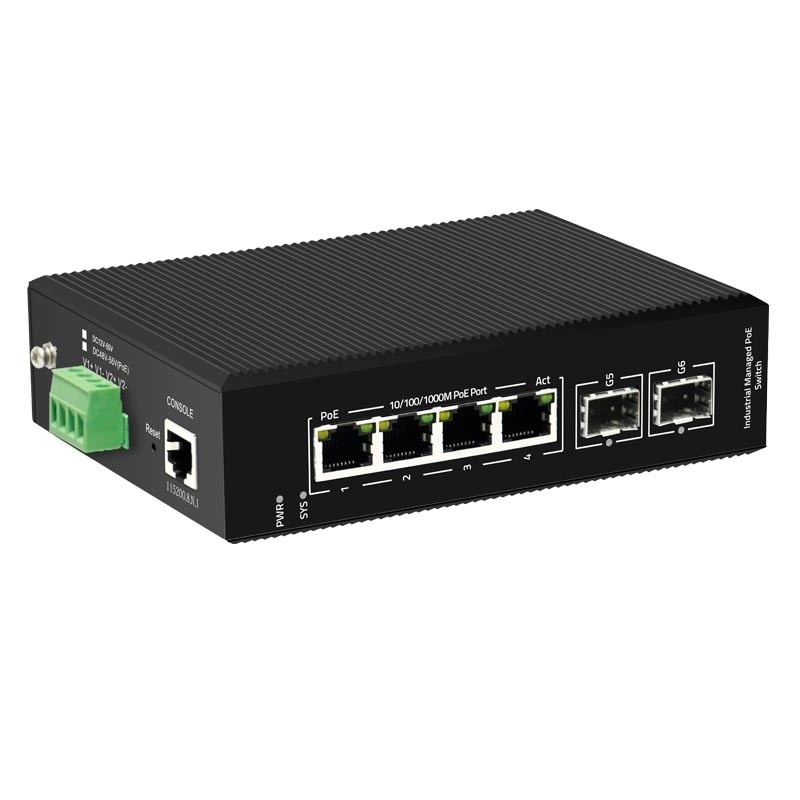

6 Ports Gigabit Managed Industrial PoE Switch

6 Ports Gigabit Managed Industrial PoE Switch

Product No.：SST-HGMP4ET2S
Online Inquiry

6 Ports Gigabit Managed Industrial PoE Switch

(Adopt VTS Industrial Grade Switch Chip)

【Product Description】

6-port Gigabit Industrial Ethernet PoE Switch, 4 Gigabit PoE Ports + 2 Gigabit SFP Port + 1 Console port, supporting Din rail and wall mounting. Supports
dual power input (DC48-55V); -40 to 75℃ working temperature; Certified by industrial environment and support FCC, CE, CCC, RoHS standards; Reliable
industrial design ensures uninterrupted automation system Stable operation.

This series of industrial grade switches can be widely used in wind power, electric power, assembly automation, subway PIS, electric power SCADA, sewage treatment,
metallurgy, intelligent transportation, rail transportation, military and other industries. It is a green low-power industrial Ethernet switch.

This series of switches provides advanced network management capabilities: redundant ring, loop protection, VLAN, QOS, speed control, port mirroring, and firmware
online upgrades. With standardized industrial design, it can meet the stringent requirements of industrial sites. All components use industrial grade for greater reliability,
providing redundant, wide-voltage power inputs and outputs for uninterrupted industrial safety communications.

【Features】

l Support：IEEE802.3、IEEE802.3u，IEEE802.3x，IEEE802.3z / ab，IEEE802.1Q，IEEE802.1p，IEEE802.1d/w

l PoE Power Management, PoE Watchdog based on data stream detection.

l Support IEEE802.3af（15.4w）and IEEE802.3at（30W）.

l Support STP（802.1D）, RSTP（802.1w），MSTP（802.1s），ERPS.

l Support SNMP v1/v2/v3.

l Support IGMP Snooping , Static multicast filtering and MLD Snooping.

l Support 802.1x port and AAA Certification，Enhance network security.

l Support WEB, Telnet，CLI,SSH management.

l IP40 protection, rugged high-strength metal case，DIN35 Rail mounting

l EMC grade 4 design，-40 to 75℃ working temperature.

l Support Redundant power supply access, support anti-reverse connection.

l Surge Protection: General 6KV, Differential 4KV; ESD 15KV(Air), 8KV (Contact)

l Support EMC EN55032 standard.

【Application Environment】

u Metropolitan area fiber broadband network: telecommunications, cable TV, network system integration, etc., network operators.

u Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries.

u Multimedia transmission: image, voice, data integrated transmission, suitable for remote teaching, conference TV, videophone and other applications.

u Real-time monitoring: simultaneous transmission of real-time control signals, images, data

u Resistant to harsh environment: Suitable for strong electromagnetic interference, networking in harsh environments at long distances.

【Technical parameters】


Product Name	6 Ports Gigabit Managed Industrial PoE Switch
Product Model	SST-HGMP4ET2S
Port Definition	4 Gigabit PoE Ports + 2 Gigabit SFP Port + 1 Console port
Network Protocols	IEEE802.3 IEEE802.3u IEEE802.3z IEEE802.3ab IEEE802.3x IEEE802.1d IEEE802.1w
POE Parameters	POE Standard: IEEE 802.3af / IEEE 802.3at
	Single PoE Port Power Output: Max: 15.4 W (IEEE 802.3af) Max: 30 W (IEEE 802.3at)
	PoE Compatibility: IEEE 802.3af / at adaptive
	POE Power Output: DC 48-55V
	POE Power Pin: 1/2- ; 3/6+
Network Media	10BASE-T: Cat3,4,5 UTP(≤100 M) 100BASE-TX: Cat5 or above UTP(≤100 M) 1000BASE-TX: Cat5 or above UTP(≤100 M)
Fiber Media	Multi-mode：850nm，1310nm Transmission Distance: 550m/2Km Single-mode：1310nm，1550nm Transmission Distance: 20/40/60/80/100/120Km
LED Indicator	PWR	Lighting：Powered Un-Light：No Power
	SYS	Lighting：System is operating normally Un-Light：System is not running
	Yellow light	Lighting：PoE Powered Un-Light：No PoE Powered
	Green light	Slow Flashing：10/100/1000 Link normally Un-Light：Link disconnect Flashing：Link data transmission
	G5-G6	Lighting：Fiber Connection is Normal Un-Light：Disconnect Flashing：Link data transmission
Power Supply	Input Voltage: DC48～55V Type of input: 4 PIN Industrial Terminal（block V1+V1- V2+ V2-）
Physical structure	Protect grade： IP40 Installation：DIN Rail Product weight：0.6KG Package weight :0.8 KG（Without power） Product Dimensions (L×W×H)： 145mm×108mm×40 mm Package Dimensions (L×W×H)： 245mm×190mm×60mm Standard packing(L×W×H)： 520mm× 320 mm× 400mm Standard packing quantity：20 (PCS)
Working Environment	Operating temperature: -40～75℃ Storage temperature: -40～85℃ Humidity: 5%~95 % ( No condensation)
Industry Standard	EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge)
Certification	CE , FCC , ROHS
MTBF	100,000 hours
Packing list	1. Industrial grade switch: 1 Set 2. Instruction manual: 1 PCS 3. Certificate, warranty card: 1 PCS 4. Serial cable：1PCS
Warranty	5 years
Hardware Parameters
Bandwidth	12Gbps
Packet Forwarding Rate	8.928Mpps
RAM	128MB
Flash	16MB
Packet Buffer Memory	4M
Jumbo frame	9.6Kbytes
VLANs	4096
MAC	8K
Forwarding Mode	Store-And-Forward

Menu Items	Submenus	Secondary Submenus	Triple Submenus
Information & Status	System Information
	IP Status
	Syslog
	Detailed Syslog
	MAC Table
	VLANs	Membership
	VLANs	Ports
	Ports	Traffic Overview
	Ports	Detailed Statistics
	LACP	System Status
		Port Status
		Port Statistics
	Green Ethernet
	LLDP	Neighbors
	LLDP	Port Statistics
	Loop Protection
	Spanning Tree	Bridge Status
		Port Status
		Port Statistics
	IGMP Snooping	Status
		Groups Information
		IPv4 SFM Information
	MLD Snooping	Status
		Groups Information
		IPv6 SFM Information
	DHCP	Server	Statistics
			Binding
			Declined IP
		Snooping Table
		Relay Statistics
		Detailed Statistics
	Security	Port Security	Switch
		Port Security	Port
		Access Management Statistics
		802.1X	Switch
		802.1X	Port
		ACL Status
		AAA	RADIUS Overview
		AAA	RADIUS Details
	QoS	QoS Statistics
	QoS	QCL Status
Network Admin	IP Config
	IP Status
	DHCPServer	Mode
		Excluded IP
		Pool
	NTP
	Timezone
	SNMP	System
		Trap
		Communities
		Users
		Groups
		Views
		Access
	Syslog
Port Configure	Ports
	Aggregation	Static
	Aggregation	LACP
	Mirroring
	Green Ethernet
	DDM	DDM Configuration
		DDM Overview
		DDM Detailed
PoE	PoE Setting
PoE	PoE Status
Advanced Configure	MAC Table
	VLANs
	GVRP	Global config
	GVRP	Port config
	Port Isolation	Port Group
	Port Isolation	Port Isolation
	Loop Protection
	Spanning Tree	Bridge Setting
		MSTI Mapping
		MSTI Priorities
		CIST Ports
		MSTI Ports
	IPMC Profile	Profile Table
	IPMC Profile	Address Entry
	MEP
	ERPS
	IGMP Snooping	Basic Configuration
		VLAN Configuration
		Port Filtering Profile
	IPV6 MLD Snooping	Basic Configuration
		VLAN Configuration
		Port Filtering Profile
	LLDP
Security Configure	Users
	Privilege Levels
	SSH
	Port Security Limit
	Access Management
	802.1X
	ACL	Ports
		Rate Limiters
		Access Control List
	DHCP	Snooping Setting
		Snooping Table
		Relay
		Relay Statistics
		Detailed Statistics
	IP&MAC Source Guard	Configuration
		Static Table
		Dynamic Table
	ARP Inspection	Port Configuration
		VLAN Configuration
		Static Table
		Dynamic Table
	AAA	RADIUS
	AAA	TACACS+
QoS Configure	Port Classification
	Port Policing
	Queue Policing
	Port Scheduler
	Port Shaping
	Port Tag Remarking
	Port DSCP
	DSCP-Based QoS
	DSCP Translation
	DSCP Classification
	QoS Control List
	Storm Policing
Diagnostics	Ping
	Cable Diagnostics
	CPU Load
Maintenance	Restart Device
	Factory Defaults
	Firmware Upgrade
	Firmware Select
	Configuration	Download
		Upload
		Activate
		Delete
