28-Port Managed Gigabit Intelligent Ethernet Switch

28-Port Managed Gigabit Intelligent Ethernet Switch

Product No.：SST-MC24ET4F
Online Inquiry

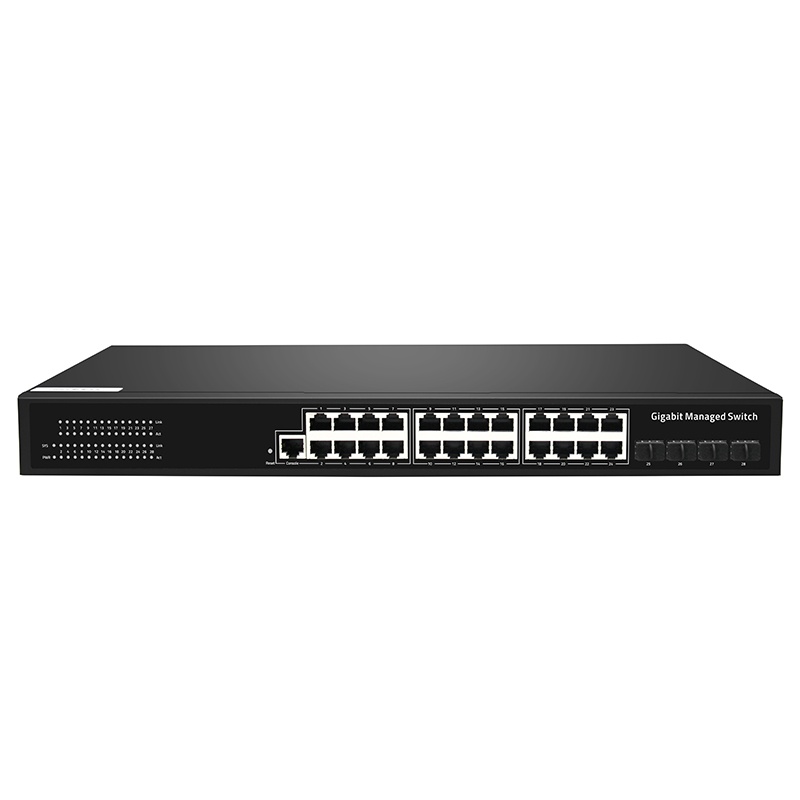

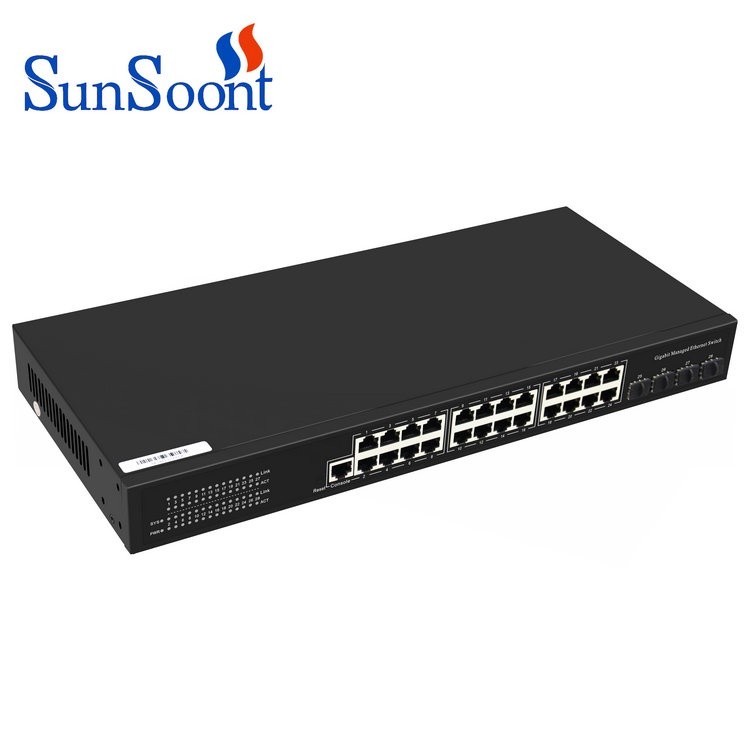

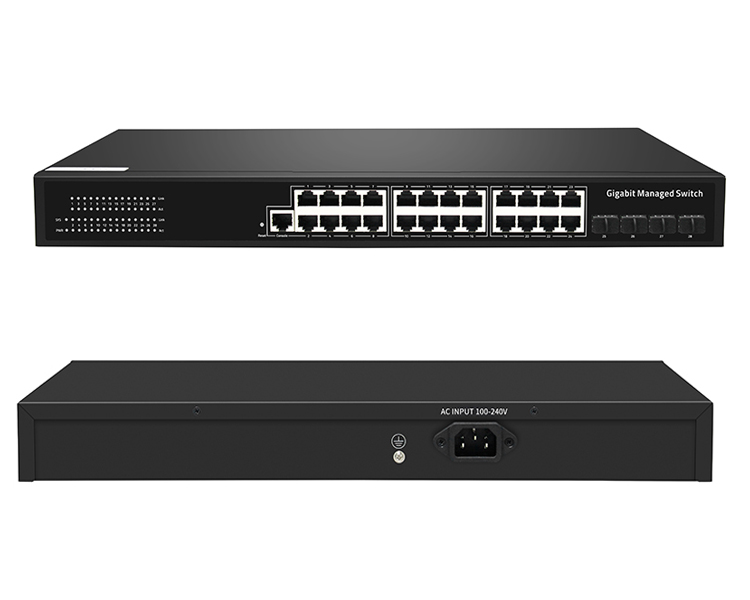

24-port Gigabit managed switch (SST-MC24ET4F)

【Introduction】

28-Port Managed Gigabit Intelligent Ethernet Switch, black iron shell design, built-in DC 12V Power supply, light and

simple, with LED indicator on the panel, can dynamically display the connection and operation of equipment, provide

simple fault detection methods, and facilitate maintenance and management; this series of switches provide advanced

network management functions: redundant ring network, VLAN, cluster, QoS, speed control, port image, fault alarm and

firmware online upgrade.

The adaptive port can automatically adapt to the 10m, 100m and 1000m networks, and can automatically adapt to

the full duplex or half duplex mode; the MAC address self-learning function ensures error free data transmission; the store

and forward mode prevents the damaged packets from flooding in the network; the flow control function can prevent the

impact of a large amount of instantaneous data on the network; the port supports MDI/ Mdix auto flip function, non

blocking line speed transmission of all ports.

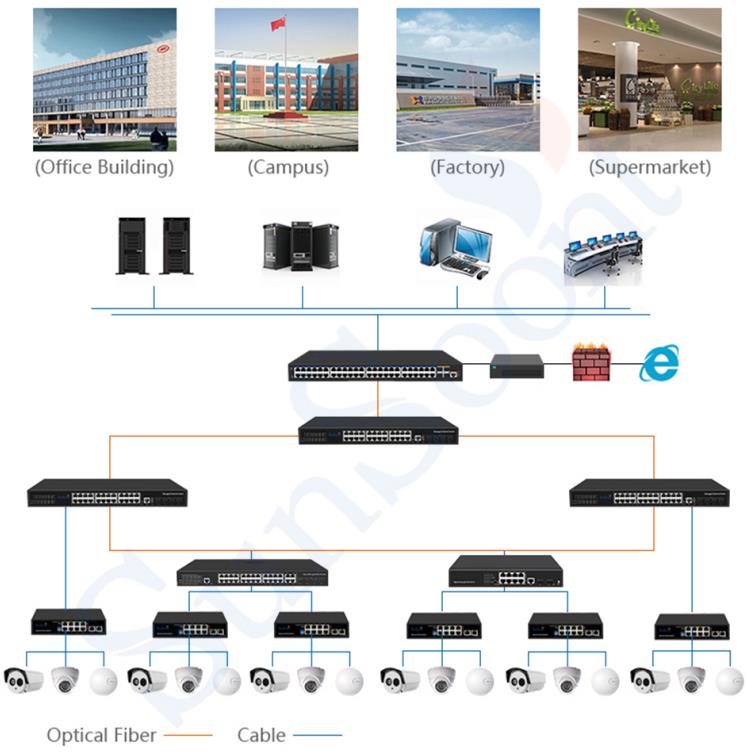

It is mainly located in the core or convergence layer of user networks such as industrial parks, buildings, factories and

mines, government agencies, community broadband, etc.; it can be widely used in Ethernet access scenarios such as small

and medium-sized enterprises, Internet cafes, hotels, schools, etc.

【Main Features】

 Can transfer data for network surveillance cameras;

 24 x 10/100/1000Mbps auto-sensing Ports, 4 x 10/100/1000Mbps SFP Ports, 1 x Console Port;

 Support IEEE802.3/IEEE802.3i/IEEE802.3uIEEE802.3ab/IEEE802.3z, store-and-forward;

 Ethernet port supports 10/100/1000M adaptive ;

 Panel indicator monitoring the status and help failure analysis;

 Fanless design, Natural Cooling, 1U Rack Mount;

 Support 802.1x port authentication, support AAA authentication, support TACACS+ authentication;

 Support WEB, TELNET, CLI, SSH, SNMP, RMON management;

Application Reference:

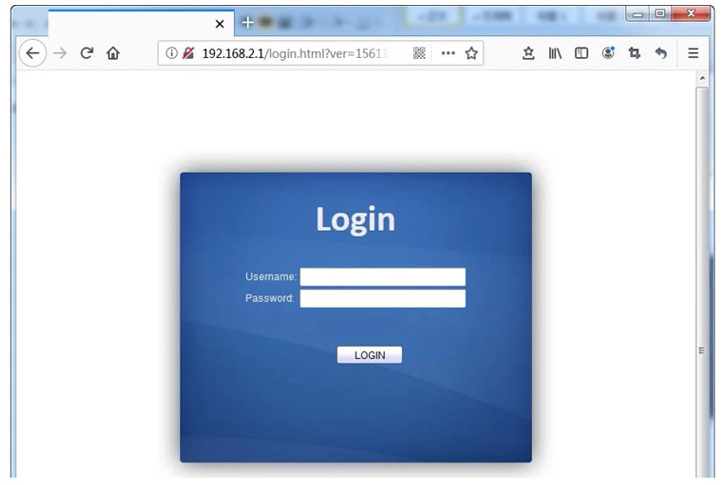

Type in the default switch address: http://192.168.2.1 and press”Enter”

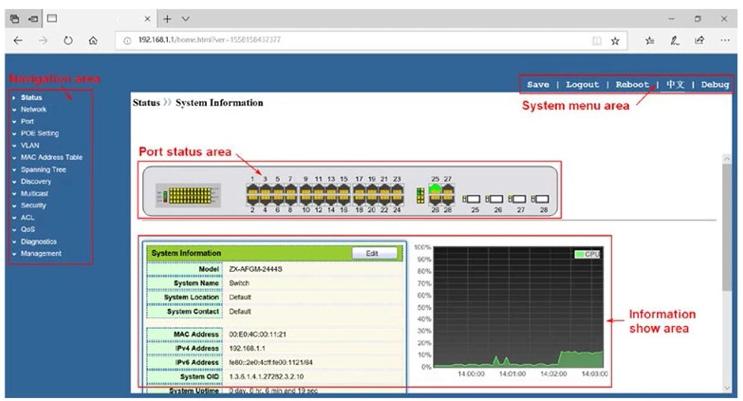

The typical operation interface of Web network management system is as follows.

Product Technical Parameters:

Layer 2 Software Function
Port Management	Enable/Disable Port
	Speed、Duplex、MTU Setting
	Flow-control
	Port Information Check
Port Mirroring	Supports both side-way port mirroring
Port Speed Limit	Supports port-based input / output bandwidth management
Port Isolation	Support the downlink port isolation, and can communicate with the uplink port
Storm Suppression	Supports unknown unicast, multicast, unknown multicast, broadcast type storm suppression Storm suppression based on bandwidth regulation and storm filtering
Link Aggregation	Support static manual aggregation Support LACP dynamic aggregation
VLAN	Access
	Trunk
	Hybrid
	Support port, protocol, MAC-based VLAN partitioning
	Support GVRP dynamic VLAN registration
	Voice VLAN
MAC	Support static addition, deletion
	MAC address learning limit
	Support dynamic aging time setting
Spanning tree	Support STP spanning tree protocol Supports RSTP Rapid Spanning Tree Protocol Supports MSTP Rapid Spanning Tree Protocol
Multicast	Support static addition, deletion IGMP-snooping
	Support MLD-Snooping
	Support v1/2/3 dynamic multicast monitor
DDM	Support SFP/SFP+DDM
Extended Function
ACL	Based on source MAC, destination MAC, protocol type, source IP, destination IP, L4 port
Qos	Based on 802.1p (COS) classification
	Based on DSCP classification
	Classification based on source IP, destination IP, and port number
	Support SP, WRR scheduling strategy
	Support flow rate limit CAR
LLDP	Support LLDP link discovery protocol
User settings	Add/delete users
Log	User login, operation, status, events
Anti-attack	DOS defense
	Support CPU protection and limits the rate of sending cpu packets
	ARP binding (IP, MAC, PORT binding)
Certification	Support 802.1x port authentication
	Support AAA certification
Network diagnosis	Support ping、telnet、trace
System Management	Device reset, configuration save/restore, upgrade management, time setting, etc.
Management function
CLI	Support serial port command line management
SSH	Support SSHv1/2 remote management
TELNET	Support telnet remote management
WEB	Support Layer 2 settings, Layer 2 and Layer 3 monitor
SNMP	SNMP V1/V2/V3
	Support trap：ColdStart、WarmStart、LinkDown、LinkUp
RMON	Support RMON v1
Other functions	Support DHCP Snooping、Option82
	Support dynamic ARP detection
	Support TACACS+ certification
	Support DNS certification
	Support port security settings
	Support MVR protocol
	Support cable detection VCT function
	Support UDLD protocol
