6 ports Gigabit Intelligent Industrial Switch
- Product No.:SST-SWG10411

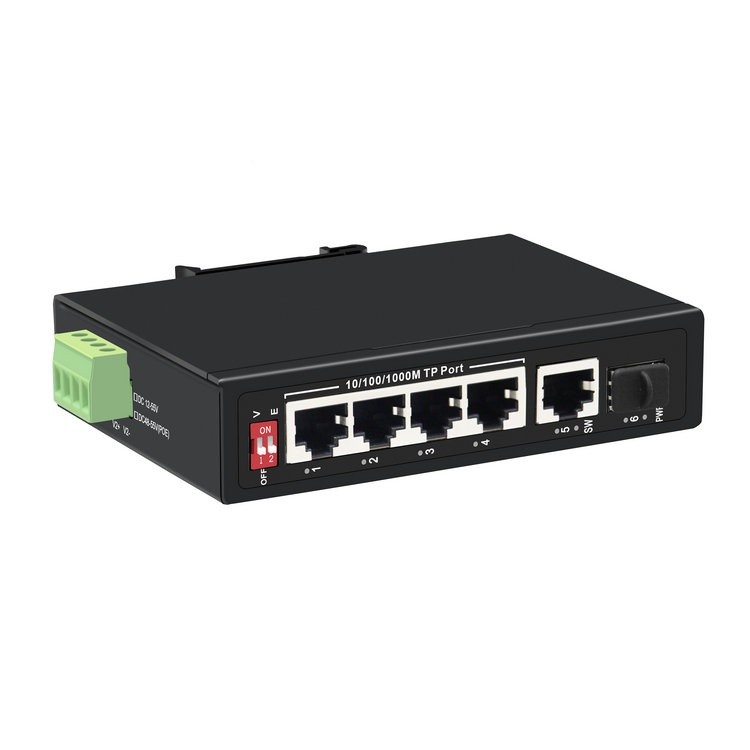

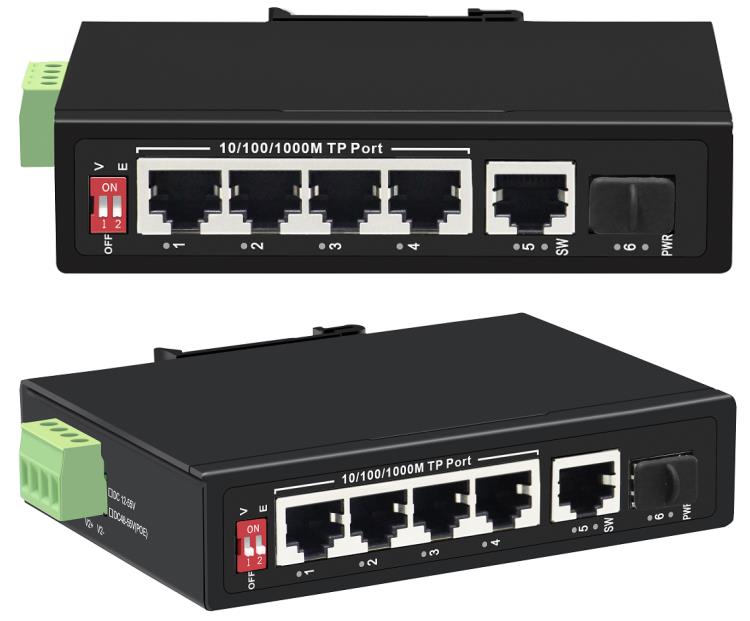

SST-SWG10411 intelligent industrial Ethernet Switch,support 4 * gigabit ports+1* gigabit uplink Ethernet port+1*gigabit SFP port,support DIN-Rail & Wall mounts,support double power supply input (DC12-55V),working temperature -40℃~ +85℃,It has passed the industrial environment certification and complies with FCC ,CE,CCC.RoHS standards.The reliable industrial design can ensure that your automation system runs without interruption and stability.
【Main feature】
1. Support 4 * gigabit ports+1* gigabit uplink Ethernet port+1*gigabit SFP port
2. Support IEEE802.3、IEEE802.3u,IEEE802.3x,store and forward
3. IP40 protect grade, high strength iron shell, DIN35 Rail installation
4. Industrial grade 4 design, -40 to 85°C working temperature.
5. Support one-click smart dial switch
6. Support port Surge Protection: Common mode 6KV, Differential mode 2KV; ESD 15KV, Contact 8KV
7. Comply with EMC EN55032 standard
【Application Environment】
Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.
Broadband private network: suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries
Multimedia transmission: integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications
Real-time monitoring: simultaneous transmission of real-time control signals, images and data
Resistant to harsh environments: suitable for networking in harsh environments with strong electromagnetic interference and long distances

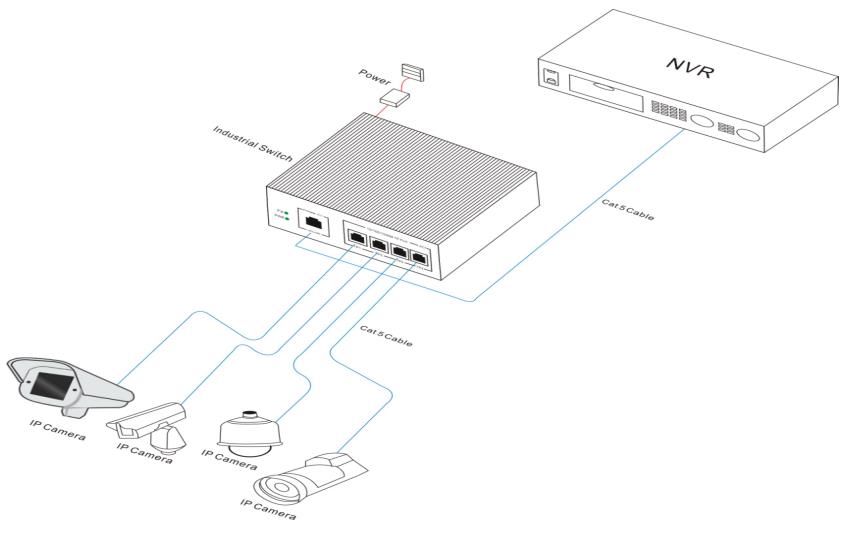

【Connection schematic diagram】
【Technical indicators】
Product name |
6 ports Gigabit Intelligent Industrial Switch |
||||
Model |
SST-SWG10411 |
||||
Connector Type |
4 * gigabit ports+1* gigabit uplink Ethernet port+1*gigabit SFP port |
||||
Network Protocols |
IEEE802.3 IEEE802.3i IEEE802.3u IEEE802.3ab IEEE802.3z |
||||
Network Media |
10BASE-T: Cat5 or more UTP(≤100 m) 100BASE-TX: Cat5 or more UTP(≤100 m) 1000BASE-TX: Cat5 or more UTP(≤100 m) |
||||
Fiber Media |
Multi-mode:850nm,1310nm. transmission distance:550m/2Km Single-mode:1310nm,1550nm. transmission distance:20/40/60/80/100/120Km |
||||
Dial |
1、2 both off |
Standard mode:1-6 port shared exchange communication |
|||
1on、2off |
VLAN isolation mode:1-4 ports are isolated from each other and cannot communicate; 5-6 ports are interoperable; 1-4 can only communicate with ports 5 and 6 |
||||
1off、2on |
Extend mode:The 4th port is at a 10M rate, and the other ports are at a 1000M rate.1-6 port shared exchange communication |
||||
1、2 both on |
VLAN+10M mixed model:The 4th port is at a 10M rate, and the other ports are at a 1000M rate.1-4 ports are isolated from each other and cannot communicate; 5-6 ports are interoperable; 1-4 can only communicate with ports 5 and 6 |
||||
LED indicator |
PWR (Power supply indicator Red ) |
Lighting:Powered Un-Light:No Power |
|||
SW (DIP indicator Green) |
1 |
2 |
Indicate |
Mode |
|
off |
off |
No light |
Standard swapping |
||
on |
off |
Lighting |
VLAN |
||
off |
on |
Slow flash |
The 4th port at a 10M rate |
||
on |
on |
Quick flash |
10M+ VLAN |
||
1-6 (Green) |
Lighting:Connecting Flashing:Data Transmit Un-Light:Disconnect |
||||
Power Supply |
Power input: DC12~55V power supply wiring: 4 PIN terminal block (redundancy V1+V1-,V2+V2-) |
||||
Working Environment |
Operating Temperature: -40~85℃ Storage Temperature: -40~85℃ Humidity: 5%~95 %( non-condensing) |
||||
Industry Standard |
EMI: FCC Part 15, CISPR (EN55032) class A EMS: EN61000-4-2 (ESD) EN61000-4-4 (EFT) EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
||||
Mechanical Structure |
Shell protect grade: IP40 Installation: DIN rail N.W::0.4KG G.W: 0.47KG(without power supply) Product Dimension (L×W×H): 119MM*87MM*28MM Package Dimension (L×W×H): 175MM*130MM*55MM |
||||
Package Contents |
Industrial Switch: 1 unit User Guide:1unit Certificate warranty card:1unit |
||||
Certification |
CE、FCC、CCC、RoHS |
||||
MTBF |
100,000 hours |
||||
Warranty |
3 years |
||||
Hardware parameter |
|||||
Bandwidth |
12Gbps |
||||
Cache |
1M |
||||
Chipset |
88E6176 |
||||
Package Forwarding Rate |
8.928Mpps |
||||
MAC address |
8K |
||||
Forwarding mode |
Store-and-forward |
