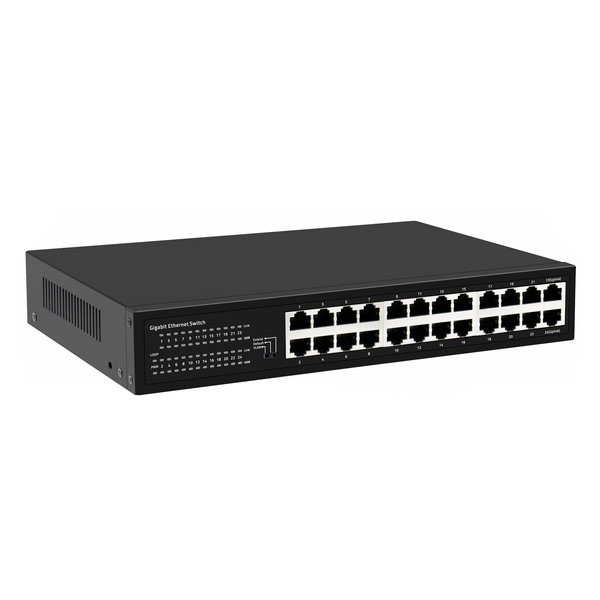

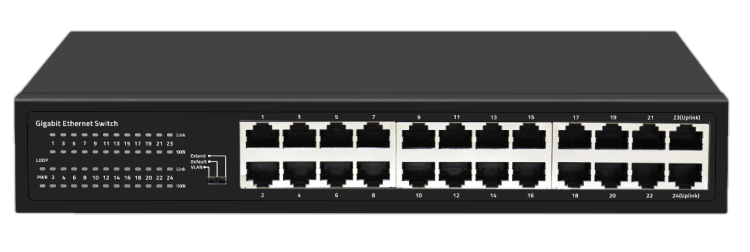

24-Port Gigabit Intelligent Ethernet Switch



Introduction

The 24-port Gigabit intelligent Ethernet switch adopts high-quality and high-speed network ICs, and this product completely solves the problem of noise of small switches in the office environment through the fanless mute design. This switch has 24 Gigabit RJ45 ports, can provide seamless connection for 10/100/1000M Ethernet, supports three working modes, one-key smart simple switching working mode, easy to manage and maintain, the product can be widely used in Security network video surveillance, hotel, campus, small and medium-sized enterprise network engineering and other occasions.
Main Features

Ø 24*10/100/1000M RJ45 Ports

Ø Apply to IEEE802.3IEEE802.3uIEEE802.3ab standard

Ø Ethernet port supports 10/100/1000M adaptive

Ø Support auto MDI/MDIX

Ø Panel indicators to monitor working status and help fault analysis

Ø One-key smart switch, supports  VLAN, Default, Extend three modes

Ø Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard

Ø Port 1-8 supports Qos data priority

Ø Support Loop alarm

Application Environment

Ø Metro Optical Broadband Network: Data network operators such as telecommunications, cable TV, and network system integration,etc.

Ø Broadband private network: Suitable for financial, government, oil, railway, electric power, public security, transportation, education and other industries

Ø Multimedia transmission: Integrated transmission of images, voice and data, suitable for remote teaching, conference TV, videophone and other applications

Ø Real-time monitoring: Simultaneous transmission of real-time control signals, images and data

Specifications

I/O Interface

Power

AC  input 100-240V

Ethernet

24*RJ45 10/100/1000Mbps Ports

Performance

Switching Capacity

48Gbps

Throughput

35.71Mpps

Packet Buffer

4M

MAC Address

8K

Jumbo Frame

4Kbytes

Transfer Mode

Store and forward

MTBF

100000 hour

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)EN61000-4-4 (EFT)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium



10Base-T : Cat3,4,5 or above UTP(100m)

100Base-TX : Cat5  or above UTP(100m)

1000Base-TX : Cat5 or aboveUTP(100m)

Protection

Security Certificae

CEFCCRoHS

Environment

Working Environment

Working Temperature-10~50°C

Storage Temperature-40~70°C

Working Humidity 10%~90%non-condensing

Storage Temperature5%~90%non-condensing

Working HeightMaximum10,000 feet

Storage heighMaximum 10,000 feet

Indication

LED Indicators

PWRPower indicator)、LinkNetwork Link)、LOOPLoop alarm)、1000M

DIP Switch

VLANPort Isolation, 1-22 ports are isolated each other, all communicate with uplink port 23/24;

DefaultDefault mode, Support loop alarm;

ExtendMonitor Mode, 1-22 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode,  port 23 and port 24 as uplink port

Mechanical

Structure Size

Product Size270*180*45mm

Package Size312*262*84mm

Product Net-Weight1.1kg

Product Gross-Weight1.6kg

Packing Info

MEAS540*435*332mm

Packing Qty10 unit

Packing weight17.5KG

Power Voltage

Power Input Voltage AC 100-240 V

Package List

Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair

Ordering Info

SST-24RJ45-TD

24-Port Gigabit Intelligent Ethernet Switch
